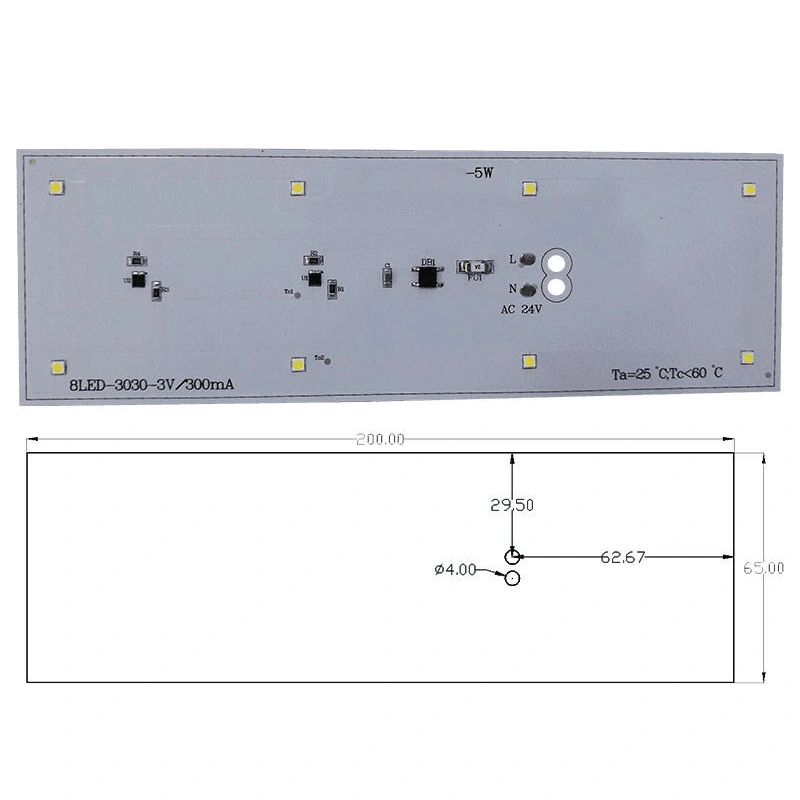

24VAC DOB LED Module For Low Voltage Lights

24VAC DOB LED Module For Low Voltage Lights

24v ac led module,24v ac led pcb board,led module for low voltage lights
info@ledpcba.com

Description

24v ac led module,24v ac led pcb board,led module for low voltage lights


Model No.

LZ2020071603

Luminous Efficiency

109 lm/W

Input Voltage

AC 24V   50Hz

Luminous Flux

569lm

Input Current

0.2A

Insulation Class

ACW>0.5KV

Power Dissipation

5W

Power Factor

0.91

LED

PCT 2835 LED

THD

/

Color Temperature

6000K

Anti-surge Class

/

Color rendering index

Ra 80

Thermal Conductivity

1.0W/m.K

Board Size*Thickness

260mm*65mm*1.0mm

Operating Temperature

-20~45°C


MAIN PRODUCT ADVANTAGE

● Luminous Efficiency: 109lm/W.

● PF: 0.91.

● Branded PCT 2835 LEDs. No EMI.

● Linear constant current IC control.

● No concern in ultraviolet ray or electromagnetic radiation.

● CE EMC, CE LVD, RoHS, PSE, C-Tick certificated

● We support our customers to pass qualification test such as energy star, SAA,REACH, T-24, and UL certification and so on.

PCB  BASE  SETUP

01

Base Material: Aluminum Base

02

Copper Thickness: 1Oz (35um)

03

Board Thickness: 1.0mm

04

Min. Hole Size: 3mil (0.075mm)

05

Min. Line Width: 3mil (0.075mm)

06

Min. Line Spacing: 4mil (0.1mm)

07

Surface Finishing: HASL

FEATURES OF DOB CONSTANT CURRENT LIGHTING SOLUTION

● Over-voltage & over-current protection. With five-channel constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.

● Over-temperature protection design. When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.

● Customized design and manufacturing is acceptable.


APPLICATION


Advantage of DOB constant current solutions in LED lighting field


● The DOB AC LED modules are cost saving solutions to high power LED lights.

● Neat outer appearance and easy installation.

● The lights will be light weighted, saving transportation cost.

● The light will be maintenance-free within the warranty period.

● The smaller sized DOB boards make the luminaires in smaller dimensions with physical drivers removed.

● Customized designs in power factor, color temperature, CRI(Ra), luminous efficiency and other detailed applications.

● Differential designs assure customers to keep agility in developing new lights with their own brands in the light appearance and its marketing pricing strategy.
