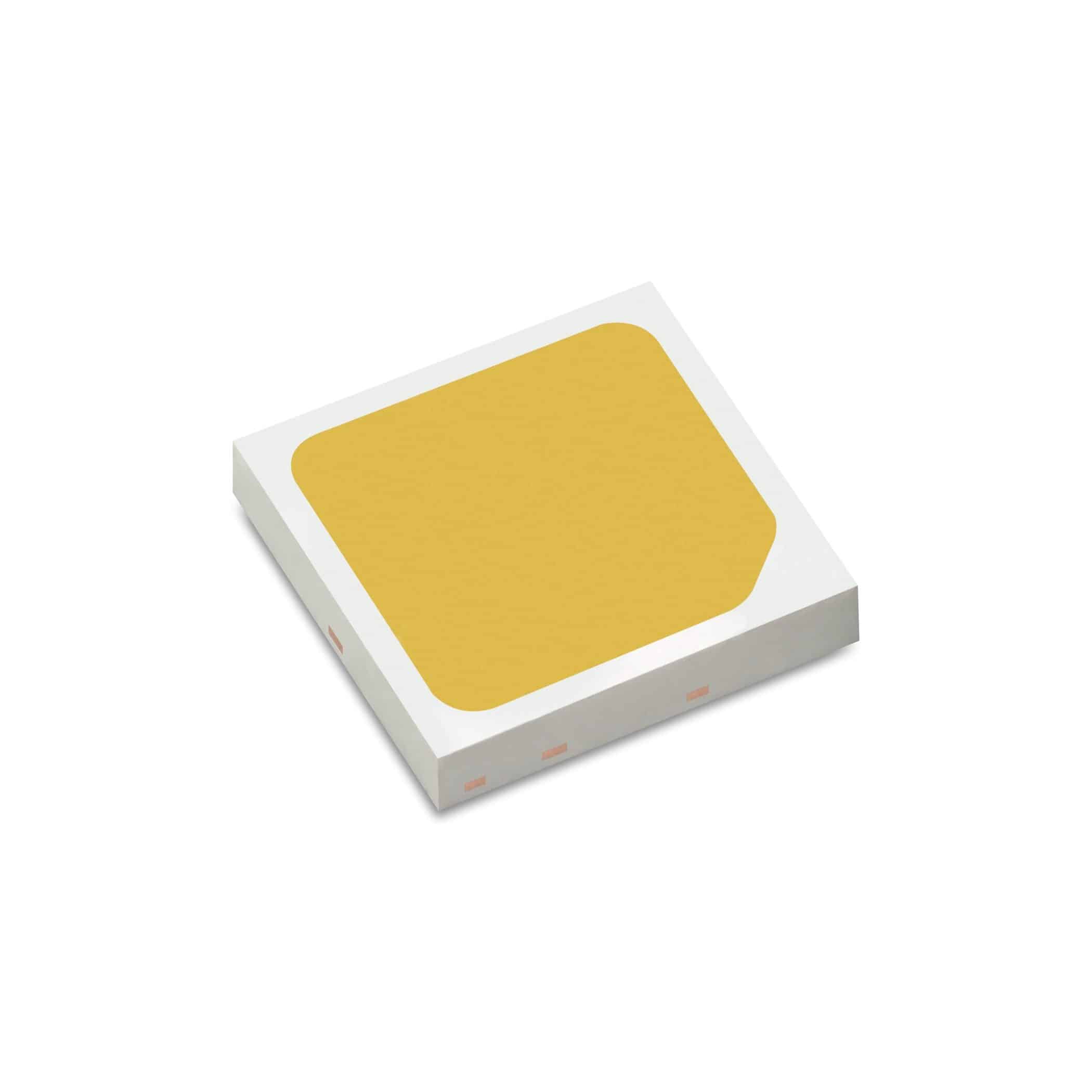

LUXEON 3030 HE and LUXEON 3030 HE Plus are superior high efficacy, mid power package built on the legacy of the LUXEON 3030 product line. It serves as a go-to solution for various indoor and outdoor fixture applications that require top notch lm/W and umol/J performance and long lifetime. LUXEON 3030 HE and LUXEON 3030 HE Plus adopt quadrant bin structure within 3 SDCM, which enables 2 SDCM by kitting.

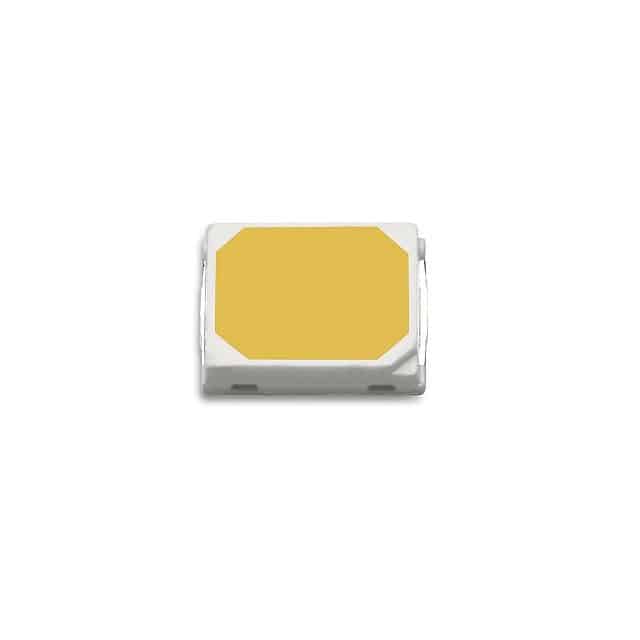

LUXEON 2835 Architectural mid-power LEDs deliver the color quality, consistency, efficacy and longevity required for architectural lighting solutions. They feature an industry standard footprint and are available in a broad range of CCTs, CRIs and voltages to meet your specific needs. 1/9th micro bins as well as 2, 3, 4, and 5-step MacAdam ellipse options make LUXEON 2835 the most flexible and efficient system solution for projects in need of high lumen output and great efficacy.
MATERIAL - High Brightness Chip on Board with Copper Frame.INSTALLATION - There're two soldering lugs, replace directly, no wiring needed.APPLICATION - Being widely used in electric compoments, experiments and other DIY activities.

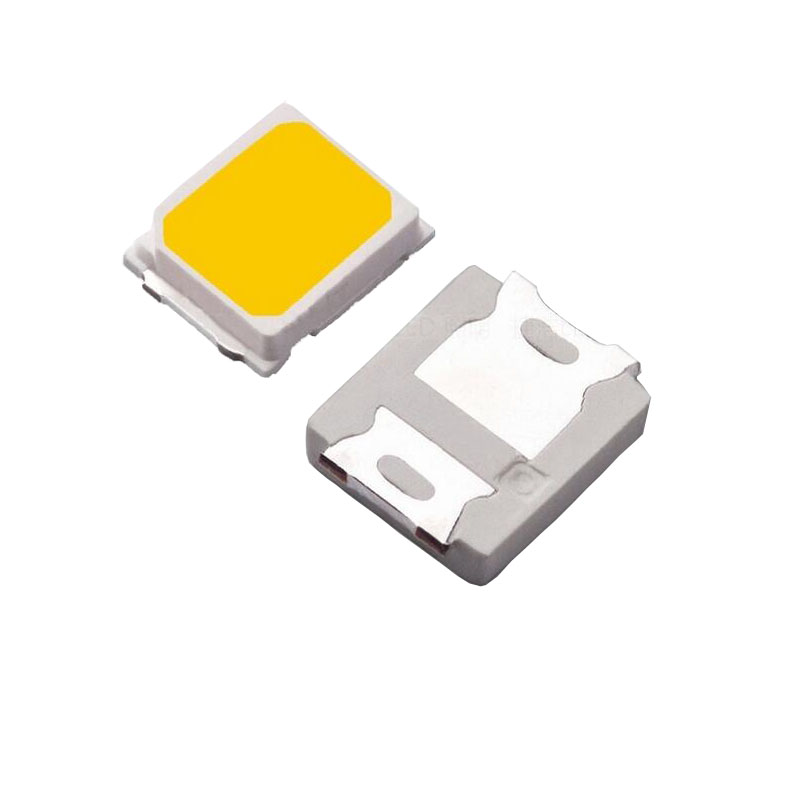

The special higher forwarder voltage will help designing some special LED project on the power input. It will reduce the current to control the total power.
This is a SMD LED specially customized for photography, with an ultra-high color rendering index. Gold wire copper bracket can ensure good heat dissipation effect, 15*30mil large chip.

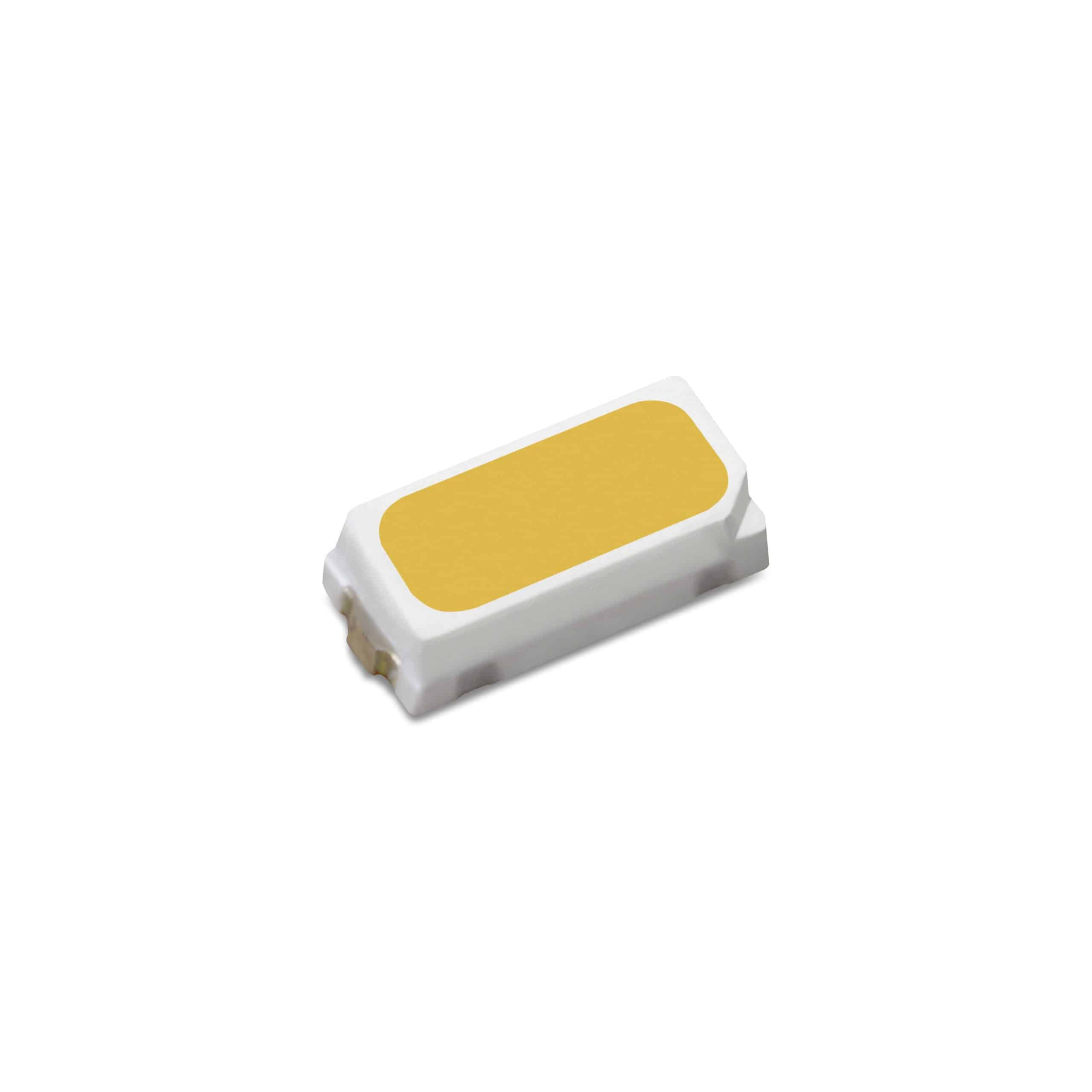

The LUXEON 3014 LED provides a typical flux of 28 lumens when driven at 60mA (3000K 80CRI) and delivers an efficacy of 158 lm/W. Offered in 80CRI, 90CRI and now 95CRI, these LEDs are hot color targeted at a temperature of 65°C to ensure outstanding color accuracy in the application. The LUXEON 3014 fits in a standard 3.0mm x 1.4mm socket, enabling compatibility with existing compact designs. The LED is available in a wide range of color temperatures and color rendering index (CRI) specifications.

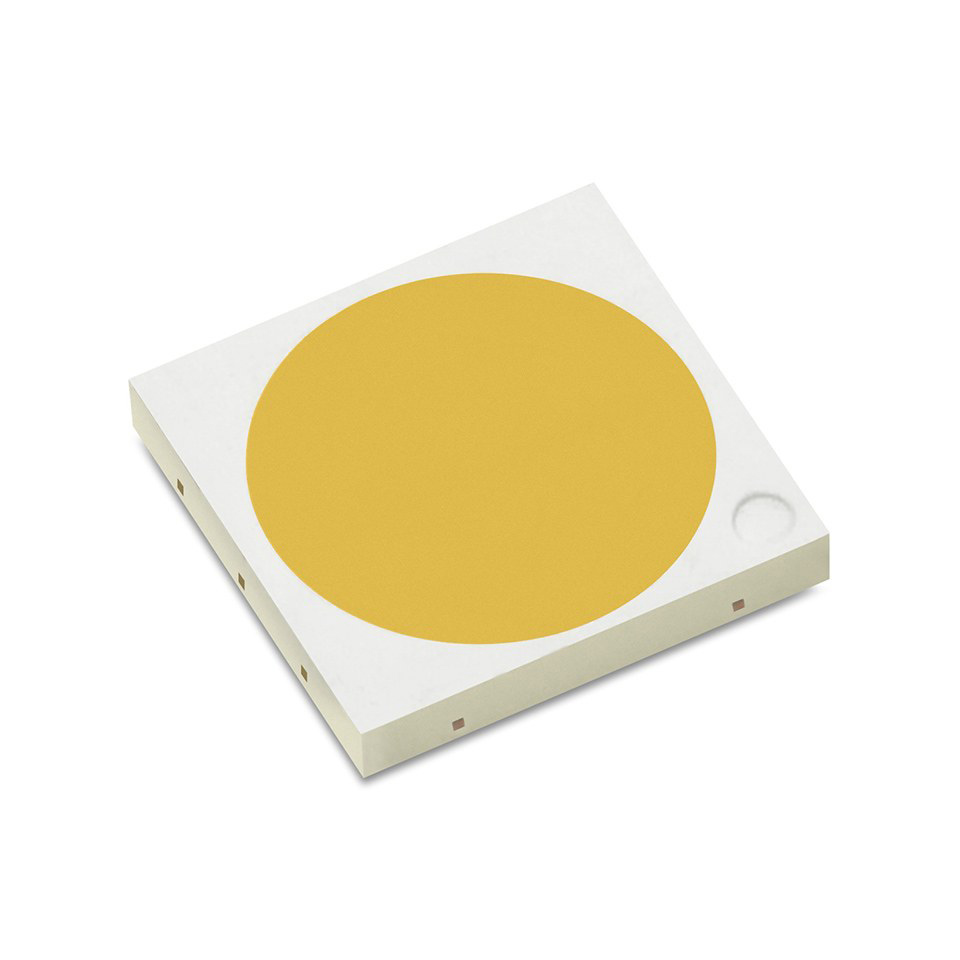

LUXEON 5050 High efficacy and superior robustness
in a multi-die, high power package,
enabling cost-effective system designLUXEON 5050 is a multi-die, high power package that provides high
luminance from a super robust package to enable cost effective and
reliable fixture designs. LUXEON 5050 uses an industry standard 5050
surface mount package with a fairly small Light Emitting Surface (LES).
LUXEON 5050 product family includes LUXEON 5050 Round LES, LUXEON
5050 Square LES and LUXEON 5050 HE, three product lines. LUXEON
5050 comes in 70CRI, 80CRI and 90CRI with a wide range of CCTs, and
offers hot-color targeting to ensure that the LEDs are within color target
at application conditions of 85°C.
LUXEON C Color Line
Multiple colors, a single focal length
The LUXEON C Color Line is an optically advanced portfolio of Color and
White LEDs. Designed for flawless color mixing, LUXEON C Color Line
has one focal length for all colors, which provides consistent radiation
patterns from secondary optics and maximizes optical efficiency. With
low dome design, it keeps effective source size small while still improving
light extraction. Designed for smooth color mixing and maximum punch,
LUXEON C Color Line is the optimal LED solution for architecture,
entertainment and emergency vehicle lighting applications.
