Copper Base Round MCPCB with 12pcs CREE 3535 High Power LEDs for Table Light
Copper Base Round MCPCB with 12pcs CREE 3535 High Power LEDs for Table Light
Copper Base Round MCPCB with 12pcs CREE 3535 High Power LEDs for Table Light
  • Copper Base Round MCPCB with 12pcs CREE 3535 High Power LEDs for Table Light
  • Copper Base Round MCPCB with 12pcs CREE 3535 High Power LEDs for Table Light
  • Copper Base Round MCPCB with 12pcs CREE 3535 High Power LEDs for Table Light

Copper Base Round MCPCB with 12pcs CREE 3535 High Power LEDs for Table Light

Copper based PCB is the most expensive in metal core PCB, which has a great thermal conductivity better than aluminum PCB and iron based PCB, applying to high frequency circuit design, and the areas where have a great change for high and low temperatures, as well as sophisticated communication equipment and architectural decoration industry.

info@ledpcba.com

Description

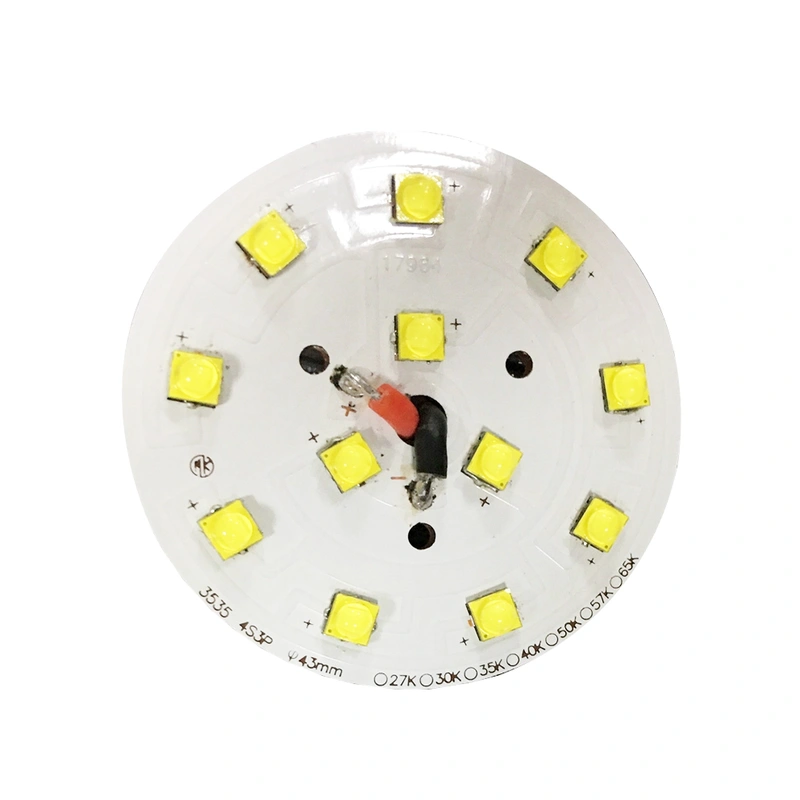

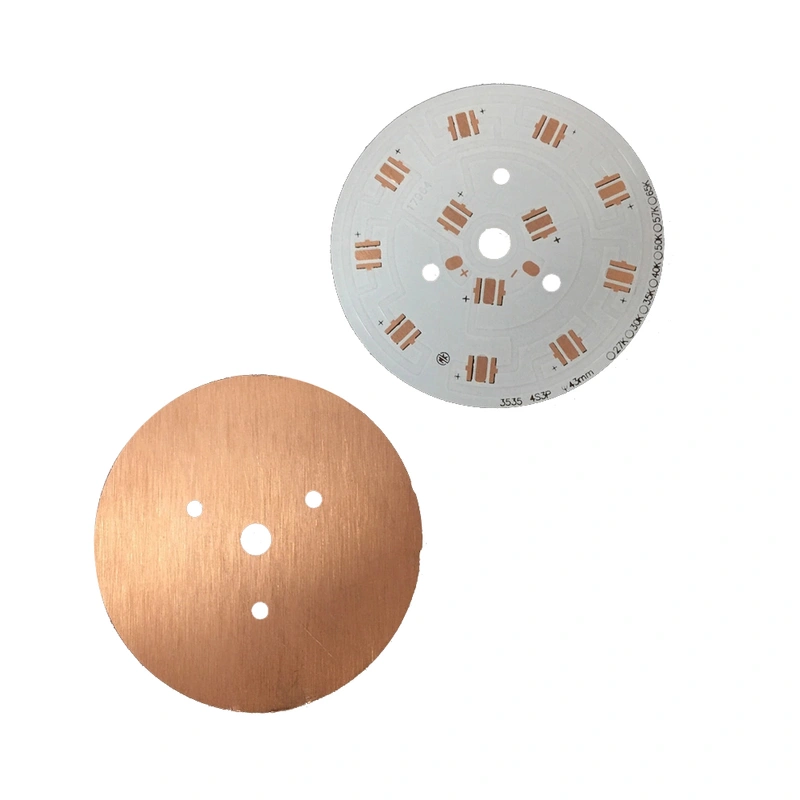

43mm Round Copper Base With CREE 3535 12leds PCB Led Module For Table Light



Hitech copper based pcb is made of electronic glass fiber cloth or other reinforcing materials impregnated with resin and single resin as the insulating bonding layer, which can improve the performance, quality in manufacturing, manufacturing level, manufacturing cost, reliability and stability of printed circuit board.



Type
Copper PCB
Base Material
Copper
Copper Thickness
35um
Board Thickness
2.0/3.0MM
Min. Hole Size
0.2mm
Min. Line Width
0.1mm
Min. Line Spacing
0.08mm
Surface Finishing
HASL
Thermal Conductivity
1.0-3.0W/m.k
Breakdown Voltage
2-4KV
Silkscreen Color
Black or white
Solder mask
White or black
Wattage
Customized
PCB size
Customized

Products Capability

ItemsPCB capacity
MaterialFR-4; High TG FR-4; Aluminum; CEM-1; CEM-3; Rogers, etc
PCB typeRigid, flexible, rigid-flexible
Layer NO.1, 2, 4, 6, up to 24 layer
ShapeRectangular, round, slots, cutouts, complex, irregular
Max PCB dimensions1200mm*600mm
Board Thickness0.2mm-4mm
Thickness Tolerance±10%
Min Hole Size0.1mm (4 mil)
Copper Thickness0.5 OZ-3OZ (18 um-385 um)
Copper Plating hole18um-30um
Min Trace Width0.075mm (3mil)
Min Space Width0.1mm (4 mil)
Surface finishHASL, LF HASL, Imm Gold, Imm Silver, OSP etc
Solder maskGreen, red, white, yellow, blue, black, orange, purple
