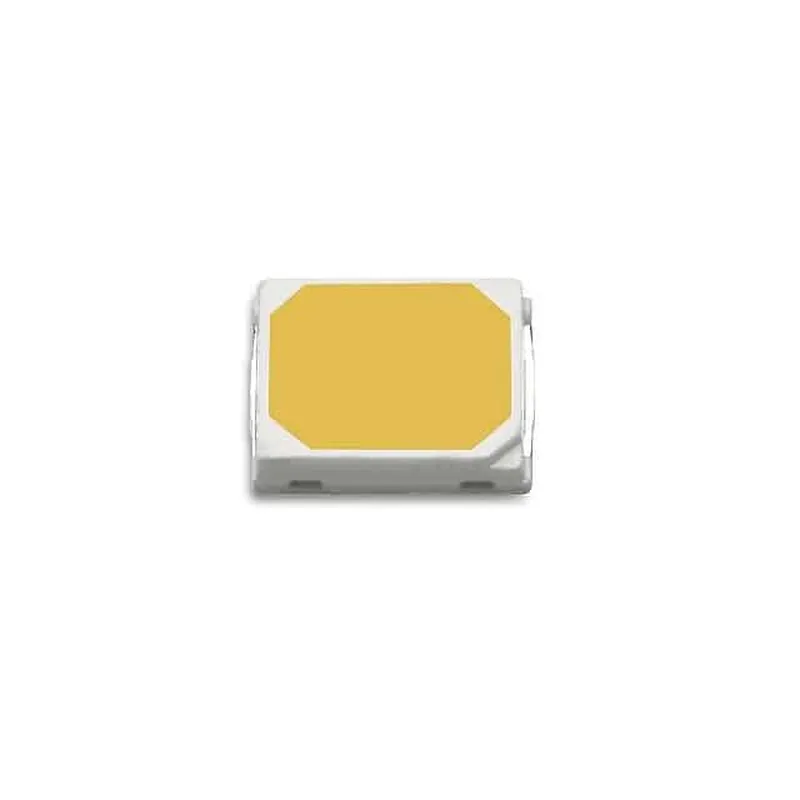

LUXEON 2835 Architectural is a superior overall system solution for projects in need of excellent quality of light, high lumen output and high efficacy.
2835 3V Parts | 2835 6V Parts | 2835 9V Parts
LUXEON 2835 ARCHITECTURAL 3V PARTS
Product performance of 3V LUXEON 2835 Line at specified test conditions.
| Parts | Nominal CCT | Minimum CRI | Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) | Test Current (mA) | Part Numbers | |
|---|---|---|---|---|---|---|---|
| Minimum | Typical | ||||||
| 2835 E | 2700K | 80 | 23.0 | 27.6 | 158.6 | 60 | L128-2780EA3500001 |
| 3000K | 80 | 24.0 | 28.6 | 164.4 | 60 | L128-3080EA3500001 | |
| 3500K | 80 | 24.0 | 29.6 | 170.1 | 60 | L128-3580EA3500001 | |
| 4000K | 80 | 26.0 | 30.1 | 173.0 | 60 | L128-4080EA3500001 | |
| 5000K | 80 | 26.0 | 30.1 | 173.0 | 60 | L128-5080EA3500001 | |
| 5700K | 80 | 26.0 | 30.1 | 173.0 | 60 | L128-5780EA3500001 | |
| 6500K | 80 | 26.0 | 29.9 | 171.8 | 60 | L128-6580EA3500001 | |
| 2700K | 90 | 19.0 | 23.5 | 135.1 | 60 | L128-2790EA3500001 | |
| 3000K | 90 | 20.0 | 24.8 | 142.5 | 60 | L128-3090EA3500001 | |
| 3500K | 90 | 20.0 | 25.7 | 147.7 | 60 | L128-3590EA3500001 | |
| 4000K | 90 | 21.0 | 26.3 | 151.1 | 60 | L128-4090EA3500001 | |
| 5000K | 90 | 21.0 | 26.3 | 151.1 | 60 | L128-5090EA3500001 | |
| 5700K | 90 | 21.0 | 26.3 | 151.1 | 60 | L128-5790EA3500001 | |
| 6500K | 90 | 21.0 | 26.0 | 149.4 | 60 | L128-6590EA3500001 | |
| 2835 C | 2700K | 80 | 49.0 | 58.2 | 161.7 | 120 | L128-2780CA3500001 |
| 3000K | 80 | 51.0 | 60.2 | 167.2 | 120 | L128-3080CA3500001 | |
| 3500K | 80 | 53.0 | 61.2 | 170.0 | 120 | L128-3580CA3500001 | |
| 4000K | 80 | 55.0 | 63.8 | 177.2 | 120 | L128-4080CA3500001 | |
| 5000K | 80 | 55.0 | 63.8 | 177.2 | 120 | L128-5080CA3500001 | |
| 5700K | 80 | 55.0 | 63.8 | 177.2 | 120 | L128-5780CA3500001 | |
| 6500K | 80 | 55.0 | 63.8 | 177.2 | 120 | L128-6580CA3500001 | |
| 2700K | 90 | 42.0 | 49.8 | 138.3 | 120 | L128-2790CA3500001 | |
| 3000K | 90 | 42.0 | 51.9 | 144.2 | 120 | L128-3090CA3500001 | |
| 3500K | 90 | 44.0 | 53.5 | 148.6 | 120 | L128-3590CA3500001 | |
| 4000K | 90 | 46.0 | 54.6 | 151.7 | 120 | L128-4090CA3500001 | |
| 5000K | 90 | 46.0 | 54.6 | 151.7 | 120 | L128-5090CA3500001 | |
| 5700K | 90 | 46.0 | 54.6 | 151.7 | 120 | L128-5790CA3500001 | |
| 6500K | 90 | 46.0 | 54.6 | 151.7 | 120 | L128-6590CA3500001 | |
| 2835 N | 1800K | 80 | 21.9 | 23.3 | 130.3 | 65 | L128-1880NA3500001 |
| 2200K | 80 | 26.6 | 28.3 | 158.3 | 65 | L128-2280NA3500001 | |
| 2700K | 80 | 30.3 | 32.5 | 181.8 | 65 | L128-2780NA3500001 | |
| 3000K | 80 | 32.3 | 34.4 | 192.4 | 65 | L128-3080NA3500001 | |
| 3500K | 80 | 33.7 | 35.9 | 200.8 | 65 | L128-3580NA3500001 | |
| 4000K | 80 | 34.3 | 36.5 | 204.2 | 65 | L128-4080NA3500001 | |
| 5000K | 80 | 34.3 | 36.5 | 204.2 | 65 | L128-5080NA3500001 | |
| 5700K | 80 | 34.3 | 36.5 | 204.2 | 65 | L128-5780NA3500001 | |
| 6500K | 80 | 33.7 | 35.9 | 200.8 | 65 | L128-6580NA3500001 | |
| 1800K | 90 | 18.0 | 19.1 | 106.9 | 65 | L128-1890NA3500001 | |
| 2200K | 90 | 23.1 | 24.6 | 137.6 | 65 | L128-2290NA3500001 | |
| 2700K | 90 | 26.2 | 27.9 | 156.1 | 65 | L128-2790NA3500001 | |
| 3000K | 90 | 27.3 | 29.0 | 162.2 | 65 | L128-3090NA3500001 | |
| 3500K | 90 | 28.4 | 30.2 | 169.0 | 65 | L128-3590NA3500001 | |
| 4000K | 90 | 29.3 | 31.2 | 174.5 | 65 | L128-4090NA3500001 | |
| 5000K | 90 | 29.3 | 31.2 | 174.5 | 65 | L128-5090NA3500001 | |
| 5700K | 90 | 29.3 | 31.2 | 174.5 | 65 | L128-5790NA3500001 | |
| 6500K | 90 | 29.1 | 31.0 | 173.4 | 65 | L128-6590NA3500001 | |
| 2835 HE | 3000K | 70 | 32.4 | 37.1 | 210.6 | 65 | L128-3070HA35000B1 |
| 3500K | 70 | 32.8 | 37.7 | 214.0 | 65 | L128-3570HA35000B1 | |
| 4000K | 70 | 34.0 | 38.6 | 219.1 | 65 | L128-4070HA35000B1 | |
| 5000K | 70 | 34.0 | 38.6 | 219.1 | 65 | L128-5070HA35000B1 | |
| 5700K | 70 | 33.7 | 38.1 | 216.3 | 65 | L128-5770HA35000B1 | |
| 6500K | 70 | 33.6 | 38.1 | 216.3 | 65 | L128-6570HA35000B1 | |
| 1800K | 80 | 22.1 | 23.5 | 133.4 | 65 | L128-1880HA35000B1 | |
| 2200K | 80 | 26.0 | 29.1 | 165.2 | 65 | L128-2280HA35000B1 | |
| 2700K | 80 | 30.5 | 34.0 | 193.0 | 65 | L128-2780HA35000B1 | |
| 3000K | 80 | 31.5 | 34.9 | 198.1 | 65 | L128-3080HA35000B1 | |
| 3500K | 80 | 32.7 | 36.4 | 206.6 | 65 | L128-3580HA35000B1 | |
| 4000K | 80 | 33.5 | 36.8 | 208.9 | 65 | L128-4080HA35000B1 | |
| 5000K | 80 | 33.5 | 36.8 | 208.9 | 65 | L128-5080HA35000B1 | |
| 5700K | 80 | 33.5 | 36.8 | 208.9 | 65 | L128-5780HA35000B1 | |
| 6500K | 80 | 33.0 | 36.5 | 207.2 | 65 | L128-6580HA35000B1 | |
| 1800K | 90 | 17.9 | 19.0 | 107.9 | 65 | L128-1890HA35000B1 | |
| 2200K | 90 | 22.9 | 24.4 | 138.5 | 65 | L128-2290HA35000B1 | |
| 2700K | 90 | 24.3 | 27.9 | 158.4 | 65 | L128-2790HA35000B1 | |
| 3000K | 90 | 25.4 | 29.5 | 167.5 | 65 | L128-3090HA35000B1 | |
| 3500K | 90 | 26.7 | 30.4 | 172.6 | 65 | L128-3590HA35000B1 | |
| 4000K | 90 | 27.4 | 31.0 | 176.0 | 65 | L128-4090HA35000B1 | |
| 5000K | 90 | 27.4 | 31.0 | 176.0 | 65 | L128-5090HA35000B1 | |
| 5700K | 90 | 27.4 | 31.0 | 176.0 | 65 | L128-5790HA35000B1 | |
| 6500K | 90 | 27.0 | 30.9 | 175.4 | 65 | L128-6590HA35000B1 | |
| 2700K | 95 | 23.4 | 27.2 | 154.4 | 65 | L128-2795HA35000B1 | |
| 3000K | 95 | 24.3 | 28.2 | 160.1 | 65 | L128-3095HA35000B1 | |
| 3500K | 95 | 24.7 | 28.5 | 161.5 | 65 | L128-3595HA35000B1 | |
| 4000K | 95 | 25.4 | 29.0 | 164.5 | 65 | L128-4095HA35000B1 | |
| 5000K | 95 | 25.9 | 29.6 | 168.0 | 65 | L128-5095HA35000B1 | |
| 5700K | 95 | 26.3 | 30.0 | 170.0 | 65 | L128-5795HA35000B1 | |
| 2835 C TVS | 2700K | 80 | 48.0 | 57.8 | 160.6 | 120 | L128-2780CA35000T1 |
| 3000K | 80 | 50.0 | 60.5 | 168.1 | 120 | L128-3080CA35000T1 | |
| 3500K | 80 | 52.0 | 62.0 | 172.2 | 120 | L128-3580CA35000T1 | |
| 4000K | 80 | 54.0 | 63.0 | 175.0 | 120 | L128-4080CA35000T1 | |
| 5000K | 80 | 54.0 | 63.0 | 175.0 | 120 | L128-5080CA35000T1 | |
| 5700K | 80 | 54.0 | 63.0 | 175.0 | 120 | L128-5780CA35000T1 | |
| 6500K | 80 | 54.0 | 62.5 | 173.6 | 120 | L128-6580CA35000T1 | |
LUXEON 2835 ARCHITECTURAL 6V PARTS
Product performance of 6V LUXEON 2835 Line at specified test conditions.
| Parts | Nominal CCT | Minimum CRI | Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) | Test Current (mA) | Part Numbers | |
|---|---|---|---|---|---|---|---|
| Minimum | Typical | ||||||
| 2835 E | 2700K | 80 | 45.0 | 54.0 | 145.2 | 60 | L128-2780EB3500001 |
| 3000K | 80 | 46.0 | 55.0 | 147.8 | 60 | L128-3080EB3500001 | |
| 3500K | 80 | 47.0 | 56.0 | 150.5 | 60 | L128-3580EB3500001 | |
| 4000K | 80 | 49.0 | 59.0 | 158.6 | 60 | L128-4080EB3500001 | |
| 5000K | 80 | 49.0 | 59.0 | 158.6 | 60 | L128-5080EB3500001 | |
| 5700K | 80 | 49.0 | 59.0 | 158.6 | 60 | L128-5780EB3500001 | |
| 6500K | 80 | 49.0 | 59.0 | 158.6 | 60 | L128-6580EB3500001 | |
| 2835 C | 2700K | 80 | 93.0 | 115.0 | 159.7 | 120 | L128-2780CB3500001 |
| 3000K | 80 | 96.0 | 118.0 | 163.9 | 120 | L128-3080CB3500001 | |
| 3500K | 80 | 99.0 | 122.0 | 169.4 | 120 | L128-3580CB3500001 | |
| 4000K | 80 | 103.0 | 125.0 | 173.6 | 120 | L128-4080CB3500001 | |
| 5000K | 80 | 103.0 | 125.0 | 173.6 | 120 | L128-5080CB3500001 | |
| 5700K | 80 | 103.0 | 125.0 | 173.6 | 120 | L128-5780CB3500001 | |
| 6500K | 80 | 103.0 | 124.0 | 172.2 | 120 | L128-6580CB3500001 | |
| 2700K | 90 | 78.0 | 96.0 | 133.3 | 120 | L128-2790CB3500001 | |
| 3000K | 90 | 81.0 | 99.0 | 137.5 | 120 | L128-3090CB3500001 | |
| 3500K | 90 | 83.0 | 102.0 | 141.7 | 120 | L128-3590CB3500001 | |
| 4000K | 90 | 87.0 | 106.0 | 147.2 | 120 | L128-4090CB3500001 | |
| 5000K | 90 | 87.0 | 106.0 | 147.2 | 120 | L128-5090CB3500001 | |
| 5700K | 90 | 87.0 | 106.0 | 147.2 | 120 | L128-5790CB3500001 | |
| 6500K | 90 | 87.0 | 106.0 | 147.2 | 120 | L128-6590CB3500001 | |
LUXEON 2835 ARCHITECTURAL 9V PARTS
Product performance of 9V LUXEON 2835 Line at specified test conditions.
| PARTS | Nominal CCT | Minimum CRI | Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) | Test Current (mA) | Part Numbers | |
|---|---|---|---|---|---|---|---|
| Minimum | Typical | ||||||
| 2835 E | 6500K | 70 | 78.0 | 93.0 | 174.2 | 60 | L128-6570EC3500001 |
| 2200K | 80 | 59.0 | 70.0 | 131.1 | 60 | L128-2280EC3500001 | |
| 2700K | 80 | 67.0 | 81.0 | 151.7 | 60 | L128-2780EC3500001 | |
| 3000K | 80 | 70.0 | 85.0 | 159.2 | 60 | L128-3080EC3500001 | |
| 3500K | 80 | 72.0 | 88.0 | 164.8 | 60 | L128-3580EC3500001 | |
| 4000K | 80 | 74.0 | 90.0 | 168.5 | 60 | L128-4080EC3500001 | |
| 5000K | 80 | 74.0 | 90.0 | 168.5 | 60 | L128-5080EC3500001 | |
| 5700K | 80 | 74.0 | 90.0 | 168.5 | 60 | L128-5780EC3500001 | |
| 6500K | 80 | 74.0 | 89.0 | 166.7 | 60 | L128-6580EC3500001 | |
| 2200K | 90 | 50.0 | 60.0 | 112.4 | 60 | L128-2290EC3500001 | |
| 2700K | 90 | 54.0 | 68.0 | 127.3 | 60 | L128-2790EC3500001 | |
| 3000K | 90 | 57.0 | 71.0 | 133.0 | 60 | L128-3090EC3500001 | |
| 3500K | 90 | 60.0 | 74.0 | 138.6 | 60 | L128-3590EC3500001 | |
| 4000K | 90 | 62.0 | 76.0 | 142.3 | 60 | L128-4090EC3500001 | |
| 5000K | 90 | 62.0 | 76.0 | 142.3 | 60 | L128-5090EC3500001 | |
| 6500K | 70 | 120.0 | 142.0 | 152.7 | 100 | L128-6570EC35000B1 | |
| 2200K | 80 | 92.0 | 108.0 | 116.1 | 100 | L128-2280EC35000B1 | |
| 2700K | 80 | 106.0 | 125.0 | 134.4 | 100 | L128-2780EC35000B1 | |
| 3000K | 80 | 110.0 | 129.0 | 138.7 | 100 | L128-3080EC35000B1 | |
| 3500K | 80 | 113.0 | 133.5 | 143.5 | 100 | L128-3580EC35000B1 | |
| 4000K | 80 | 116.0 | 137.0 | 147.3 | 100 | L128-4080EC35000B1 | |
| 5000K | 80 | 116.0 | 137.0 | 147.3 | 100 | L128-5080EC35000B1 | |
| 5700K | 80 | 116.0 | 137.0 | 147.3 | 100 | L128-5780EC35000B1 | |
| 6500K | 80 | 116.0 | 137.0 | 147.3 | 100 | L128-6580EC35000B1 | |
| 2200K | 90 | 77.0 | 92.0 | 98.9 | 100 | L128-2290EC35000B1 | |
| 2700K | 90 | 87.0 | 104.0 | 111.8 | 100 | L128-2790EC35000B1 | |
| 3000K | 90 | 91.0 | 108.0 | 116.1 | 100 | L128-3090EC35000B1 | |
| 3500K | 90 | 95.0 | 113.0 | 121.5 | 100 | L128-3590EC35000B1 | |
| 4000K | 90 | 98.0 | 116.0 | 124.7 | 100 | L128-4090EC35000B1 | |
| 5000K | 90 | 98.0 | 116.0 | 124.7 | 100 | L128-5090EC35000B1 | |
