FEATURES & BENEFITS
Superior high efficacy at rated current enables outstanding lm/W at the system level
Reliable package design from a proven product line affirms long application lifetime
Quadrant bin structure within 3 SDCM enables 2 SDCM by kitting
Industry-standard package allows drop-in replacement for existing 3030 packages
Robust coating design for enhanced sulfur protection capability (LUXEON 3030 HE Plus)

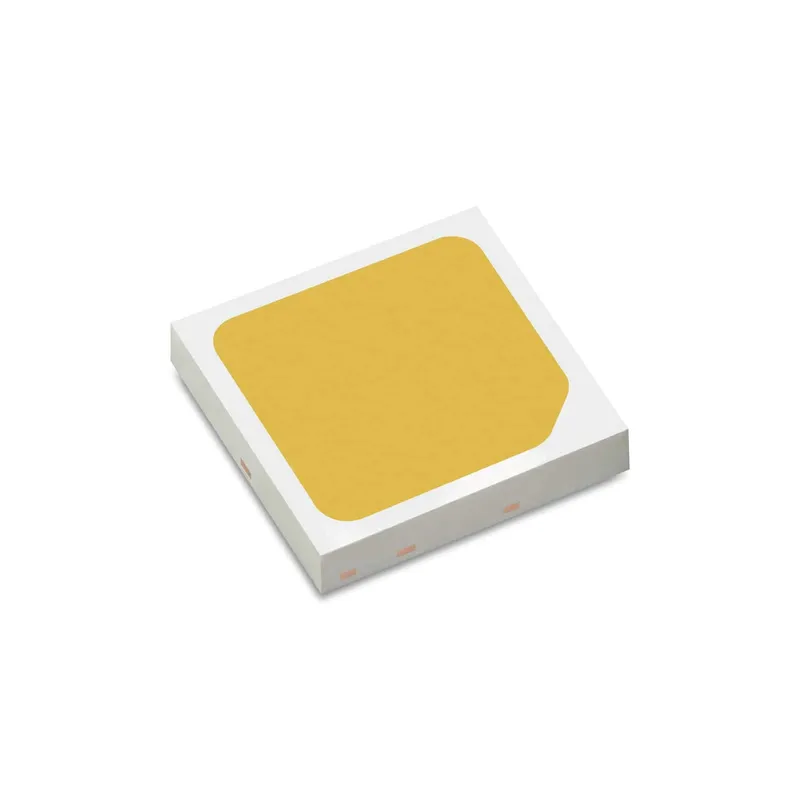

Product performance of LUXEON 3030 HE and LUXEON 3030 HE Plus at 65mA, Tj= 25°C.
| Product | Nominal CCT | Minimum CRI | Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) | Part Numbers | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| 65mA | ||||||
| 3030 HE | 2700K | 80 | 29.0 | 33.5 | 184 | L130-2780HB30000B1 |
| 3000K | 80 | 29.5 | 34.0 | 187 | L130-3080HB30000B1 | |
| 3500K | 80 | 30.0 | 35.0 | 192 | L130-3580HB30000B1 | |
| 4000K | 80 | 32.0 | 36.5 | 201 | L130-4080HB30000B1 | |
| 5000K | 80 | 31.5 | 36.0 | 198 | L130-5080HB30000B1 | |
| 5700K | 80 | 31.5 | 36.0 | 198 | L130-5780HB30000B1 | |
| 6500K | 80 | 31.0 | 35.5 | 195 | L130-6580HB30000B1 | |
| 2700K | 90 | 24.5 | 28.0 | 154 | L130-2790HB30000B1 | |
| 3000K | 90 | 25.0 | 28.5 | 157 | L130-3090HB30000B1 | |
| 3500K | 90 | 26.0 | 29.5 | 162 | L130-3590HB30000B1 | |
| 4000K | 90 | 27.5 | 30.5 | 168 | L130-4090HB30000B1 | |
| 5000K | 90 | 27.0 | 30.0 | 165 | L130-5090HB30000B1 | |
| 5700K | 90 | 27.0 | 30.0 | 165 | L130-5790HB30000B1 | |
| 6500K | 90 | 27.0 | 30.0 | 165 | L130-6590HB30000B1 | |
| 3030 HE Plus | 2200K | 70 | 29.5 | 32.0 | 182 | L130-2270HA30000B1 |
| 3000K | 70 | 34.0 | 37.0 | 210 | L130-3070HA30000B1 | |
| 3500K | 70 | 35.0 | 38.0 | 216 | L130-3570HA30000B1 | |
| 4000K | 70 | 36.0 | 39.0 | 221 | L130-4070HA30000B1 | |
| 5000K | 70 | 36.0 | 39.0 | 221 | L130-5070HA30000B1 | |
| 5700K | 70 | 35.0 | 38.0 | 216 | L130-5770HA30000B1 | |
| 6500K | 70 | 34.5 | 37.5 | 213 | L130-6570HA30000B1 | |
| 2700K | 80 | 30.0 | 33.5 | 190 | L130-2780HA30000B1 | |
| 3000K | 80 | 32.0 | 35.0 | 199 | L130-3080HA30000B1 | |
| 3500K | 80 | 33.0 | 36.0 | 204 | L130-3580HA30000B1 | |
| 4000K | 80 | 34.0 | 37.0 | 210 | L130-4080HA30000B1 | |
| 5000K | 80 | 34.0 | 37.0 | 210 | L130-5080HA30000B1 | |
| 5700K | 80 | 33.5 | 36.5 | 207 | L130-5780HA30000B1 | |
| 6500K | 80 | 33.0 | 36.0 | 204 | L130-6580HA30000B1 | |
| 2700K | 90 | 26.0 | 28.5 | 162 | L130-2790HA30000B1 | |
| 3000K | 90 | 27.0 | 29.5 | 167 | L130-3090HA30000B1 | |
| 3500K | 90 | 27.5 | 30.5 | 173 | L130-3590HA30000B1 | |
| 4000K | 90 | 28.5 | 31.5 | 179 | L130-4090HA30000B1 | |
| 5000K | 90 | 28.5 | 31.5 | 179 | L130-5090HA30000B1 | |
| 5700K | 90 | 28.5 | 31.5 | 179 | L130-5790HA30000B1 | |
| 6500K | 90 | 28.0 | 31.0 | 176 | L130-6590HA30000B1 | |
| 2200K | 70 | 29.5 | 33.1 | 188 | L130-2270HA30000C1 | |
| 3000K | 70 | 34.0 | 37.7 | 215 | L130-3070HA30000C1 | |
| 3500K | 70 | 35.0 | 38.7 | 221 | L130-3570HA30000C1 | |
| 4000K | 70 | 36.0 | 39.4 | 224 | L130-4070HA30000C1 | |
| 5000K | 70 | 36.0 | 39.4 | 224 | L130-5070HA30000C1 | |
| 5700K | 70 | 35.0 | 38.4 | 219 | L130-5770HA30000C1 | |
| 6500K | 70 | 34.5 | 38.0 | 216 | L130-6570HA30000C1 | |
| 2700K | 80 | 30.0 | 33.8 | 193 | L130-2780HA30000C1 | |
| 3000K | 80 | 32.0 | 35.2 | 201 | L130-3080HA30000C1 | |
| 3500K | 80 | 33.0 | 36.5 | 208 | L130-3580HA30000C1 | |
| 4000K | 80 | 34.0 | 37.6 | 214 | L130-4080HA30000C1 | |
| 5000K | 80 | 34.0 | 37.6 | 214 | L130-5080HA30000C1 | |
| 5700K | 80 | 33.5 | 37.0 | 211 | L130-5780HA30000C1 | |
| 6500K | 80 | 33.0 | 36.6 | 209 | L130-6580HA30000C1 | |
| 2700K | 90 | 26.0 | 28.7 | 163 | L130-2790HA30000C1 | |
| 3000K | 90 | 27.0 | 30.1 | 171 | L130-3090HA30000C1 | |
| 3500K | 90 | 27.5 | 30.4 | 173 | L130-3590HA30000C1 | |
| 4000K | 90 | 28.5 | 31.6 | 180 | L130-4090HA30000C1 | |
| 5000K | 90 | 28.5 | 32.3 | 184 | L130-5090HA30000C1 | |
| 5700K | 90 | 28.5 | 32.2 | 184 | L130-5790HA30000C1 | |
| 6500K | 90 | 28.0 | 31.3 | 178 | L130-6590HA30000C1 | |
