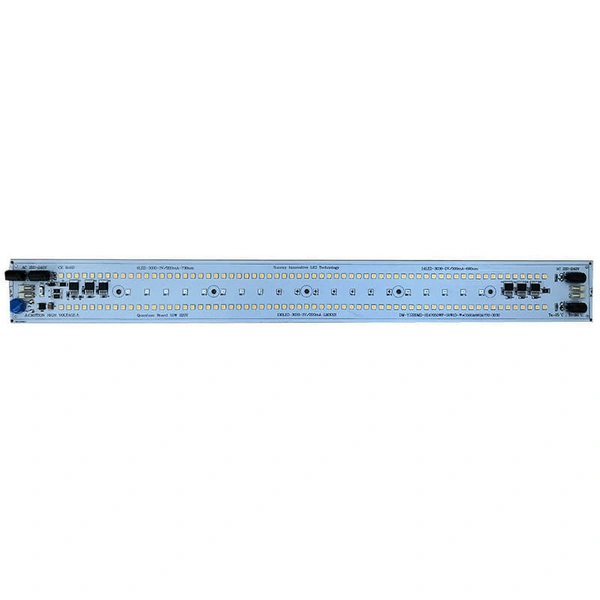

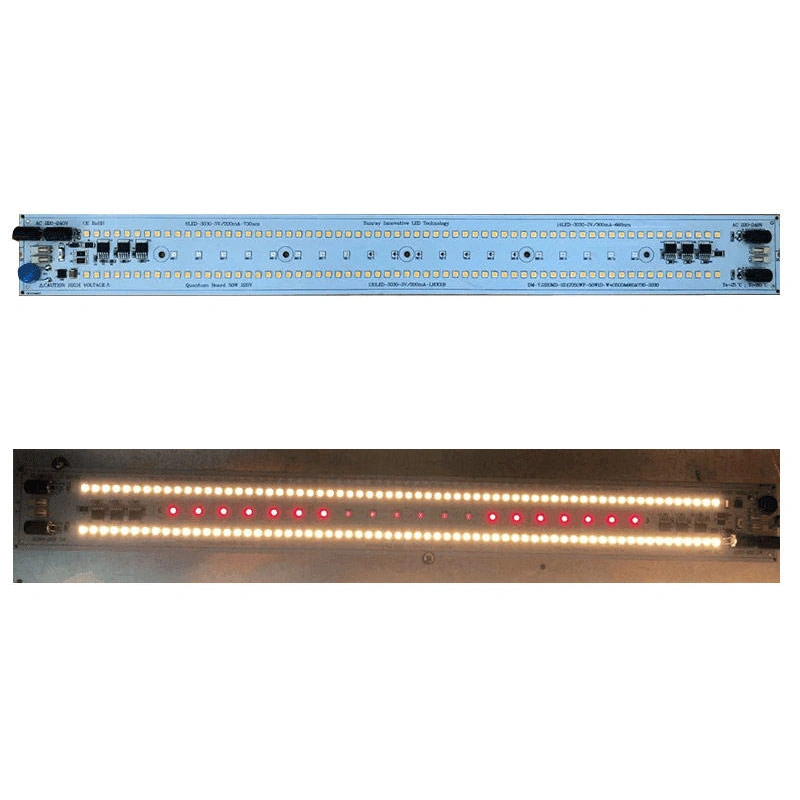

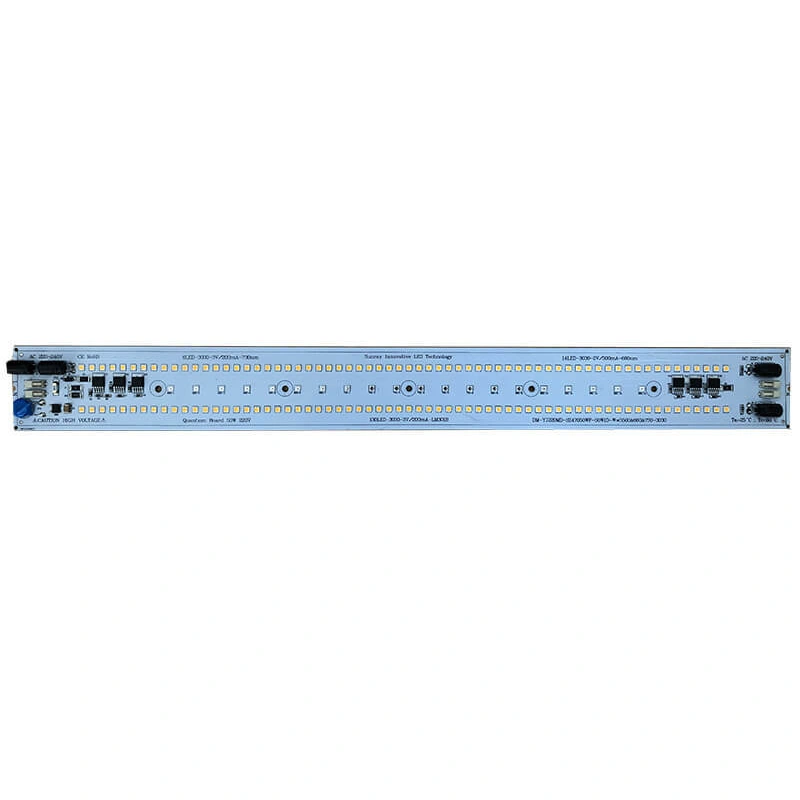

DOB AC LED Module For Plant Growing Horticulture Lights

AC led module for grow lights,DOB grow light,
info@ledpcba.com

Description

LED Module For Horticulture Lights


Model No.

LZ2020071606

Luminous Efficiency

120 lm/W

Input Voltage

AC 220-240V   50Hz

Luminous Flux

6404 lm

Input Current

0.26A

Insulation Class

ACW>1.5KV

Power Dissipation

50W

Power Factor

0.92

LED

3030 Samsung LM301B 3500K LED, 3030 Epistar dual chip 660nm Red LED, 3030 Epistar dual chip 730nm IR LED

THD

/

Color Temperature

3500K + 660nm + 730nm

Anti-surge Class

2KV

Color Rendering Index

Ra 80

Thermal Conductivity

1.5W/m.K

Board Size*Thickness

470mm x 50mm x 1.5mm

Operating Temperature

-20~45°C

MAIN PRODUCT DVANTAGE

● Samsung LM301B LED & 660nm & 730nm LEDs, EMC 3030 LEDs.

● 120lm/W.

● Moisture proof.

● SCR Dimmable.

● Input connectors on both ends.

● Constant power design.

● 740V MOS linear constant current Isolated IC.

● Over-temperature and Over Voltage and Over current protection.



FEATURES  OF  DOB CONSTANT  CURRENT LIGHTING  SOLUTION

● Over-voltage & over-current protection. With five-channel constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.

● Over-temperature protection design. When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.

● Customized design and manufacturing is acceptable.

Advantage of DOB constant current solutions in LED lighting field



● The driverless AC LED modules are cost saving solutions to high power LED lights.
● Neat outer appearance and easy installation.
● The lights will be light weighted, saving transportation cost.
● The light will be maintenance-free within the warranty period.
● The smaller sized DOB boards make the luminaires in smaller dimensions with physical drivers removed.
● Customized designs in power factor, color temperature, CRI(Ra), luminous efficiency and other detailed applications.
● Differential designs assure customers to keep agility in developing new lights with their own brands in the light appearance and its marketing pricing strategy.
