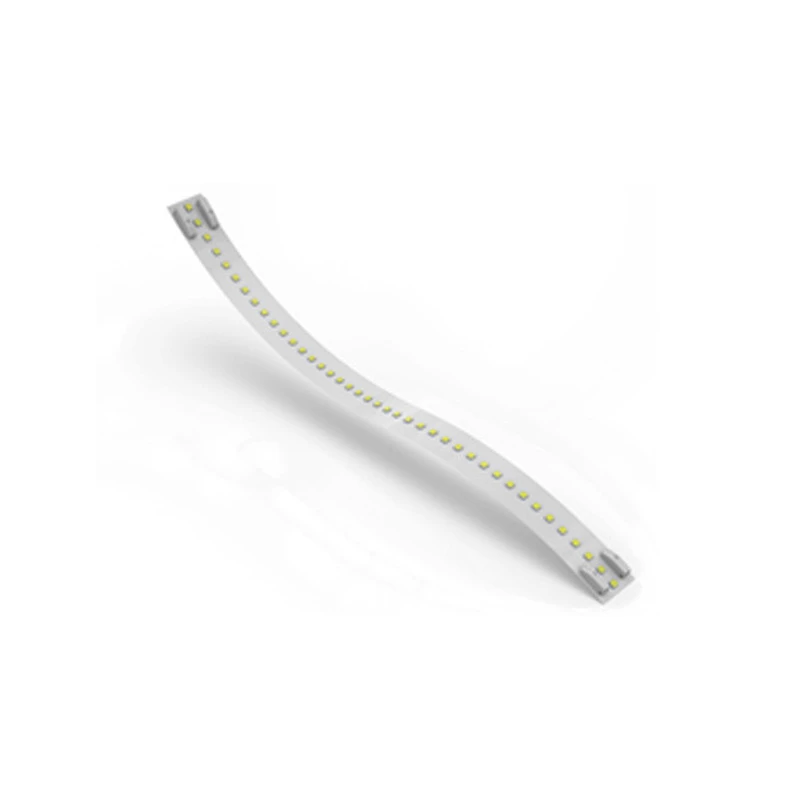

High Efficiency Flexible linear LED module with Full Range of Colors
- Perfect combination of flexibility and efficiency.
- High color rendering index CRI >80 (or CRI>90).
- Low color temperature tolerances – Step3 MacAdam.
- Low tolerances for luminous flux.
- Full range of colors (2700K, 3000K, 4000K, 5000K, 6500K).
- Easy installation (e.g. double-sided adhesive tape)
- Perfectly uniform light, even if several LED modules are used together in one line.
- Long life time: >50000 hours.
- 5-year warranty.
Product specifications
Model | PUM-L28W2-8P5S-XW |
Dimensions, mm | 280x20x4.15 |
Typical current, m | 700 |
Typical voltage, V | ~ 13.95 |
Power, W | 9.8 |
LED quantity, pcs | 40 |
Luminous flux, Lm | 1680 (4000K); 1599 (3000K) |
Color rendering index: CRI | >80 |
Luminous efficacy, Lm/W | 171.2 (4000K); 162.9 (3000K) |
MAX current, mA | 1280 |
MAX light output, Lm | 2802 |
Connection | 4 x 1 pole connector. For 0.2- 0.75mm² wires |
We make custom LED Linear PCB Module in your requirements:
- Customized Diameter
- Customized Circuit design
- Customized LED quantity
- Customized Power
- Specified LED Chip ( SAMSUNG, CREE, or Other Brand)
- Other special requirements on the functions
- Bergquist Aluminum base copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float.
- It's widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.
One-Stop Service: | Tell us your need as clear as possible, usually we could answer all your questions and do all the rest things |
Free Sample | We could make samples for free if your need is exactly clear |
PCB Copy | Send us the sample, and we could make a copy which would save your cost |
PCBA and enclosure design | Tell us your idea and requirements, our professional sales will understand you quickly and make your need clear on paper |
PCB manufacturing | We have own machine&equipment to make the PCB within 1 week while the gerber file offered or confirmed. |
Component sourcing & Purchasing | We have cooperation with many IC components and LED chip manufacturer which could control the cost |
PCBA 100% test | Every unit will be tested and aged of your order |
