MR16 PCB for 3 LED CREE XR / Ledil LED Lens Compatible LED PCB Assembly

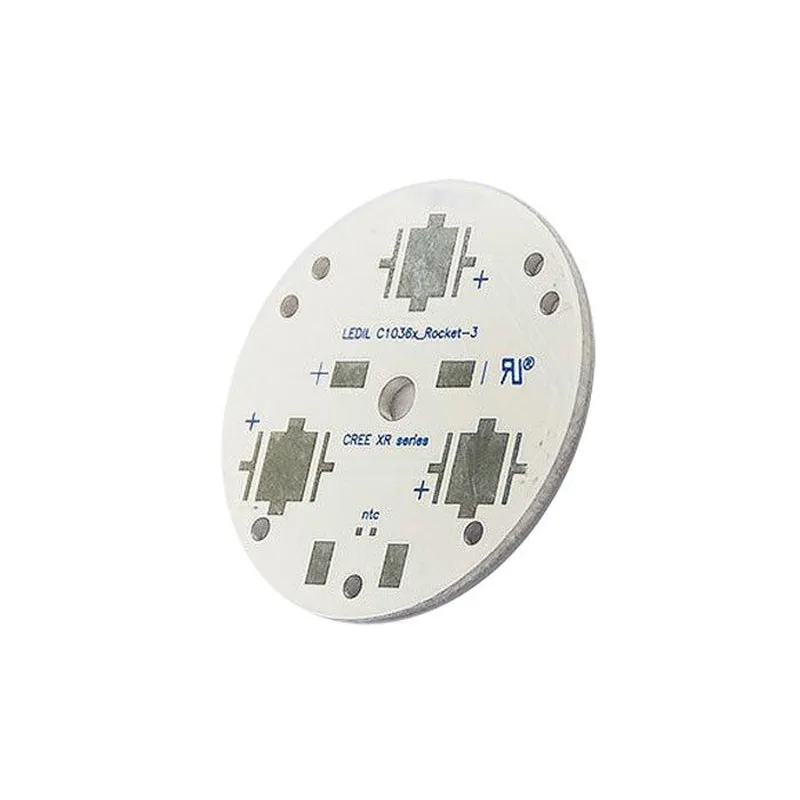

This MR16 MCPCB is an exclusive design and is manufactured by LED Mounting Bases Company. This printed circuit board with Aluminum base has been developped for Cree XR and it’s compatible Ledil.
The MR16-2W-3-CRE-XR-LDLC1036-S IMS (Insulated Metal Substrate) allows you to quickly create your prototypes of LED modules based on CreeXR LED at reasonable price. With it’s high thermal conductivity of 2 W/mK , this printed circuit board is able to drain the heat of the LED components to he Aluminum base, which is ideal for LED lighting. This Metal Core PCB is manufactured with UL certified Aluminum substrates.
| Compatible LED | Cree XR |
| Number of LED | 3 |
| Compatible LED Lens | Ledil |
| MCPCB shape | MR16 |
| Dimension | 40 mm |
| Thickness | 1.6 mm |
| Material | Aluminum Approved Material UL |
| Thermal Conductivity | 2 W/mK |
Design your personalized LED modules.
At LED Mounting Bases we offer you a range of products and services to help you personalize your LED modules. Select your board, your LED, your LED lens, the power supply and make them assemble by us. This way you will have a professional and qualitative LED module within the best lead-time at a price under control and you will be able to test or integrate your LED modules in the best conditions.
Detailed Terms for PCB Assembly
| Quantity | Prototype&Low Volume PCB Assembly, from 1 Board to 250,is for specialty, but we can handle orders up to 1000. |
| Type of Assembly | THD (Thru-Hole Device), SMT (Surface-Mount Technology), SMT & THD mixed, Double-sided SMT and THD assembly. |
| Solder Type | Water Soluble Solder Paste, Leaded and Lead-Free. |
| Components | Passives parts, smallest size 0201; BGA, uBGA, QFN, POP, and Leadless chips; Fine Pitch to 0.8Mils; BGA Repair and Reball; Part Removal and Replacement Connectors and terminals. |
| Bare Board Size | Smallest: 0.25x0.25 Inches; Largest: 20x20 Inches. |
| File Formats | Bill of Materials Gerber Files Pick-N-Place File(XYRS). |
| Type of Service | Turn-Key, Partial Turn-Key or Consignment. |
| Component Packaging | Reels,cut tape,Tube and tray,Loose parts and bulk. |
| Turn Time | Same Day Service to 10 day service. |
| Testing | X-ray Inspection AOI (Automated Optical Inspection) ICT (In-Circuit Test)/Functional Testing |
