Flex LED Panel

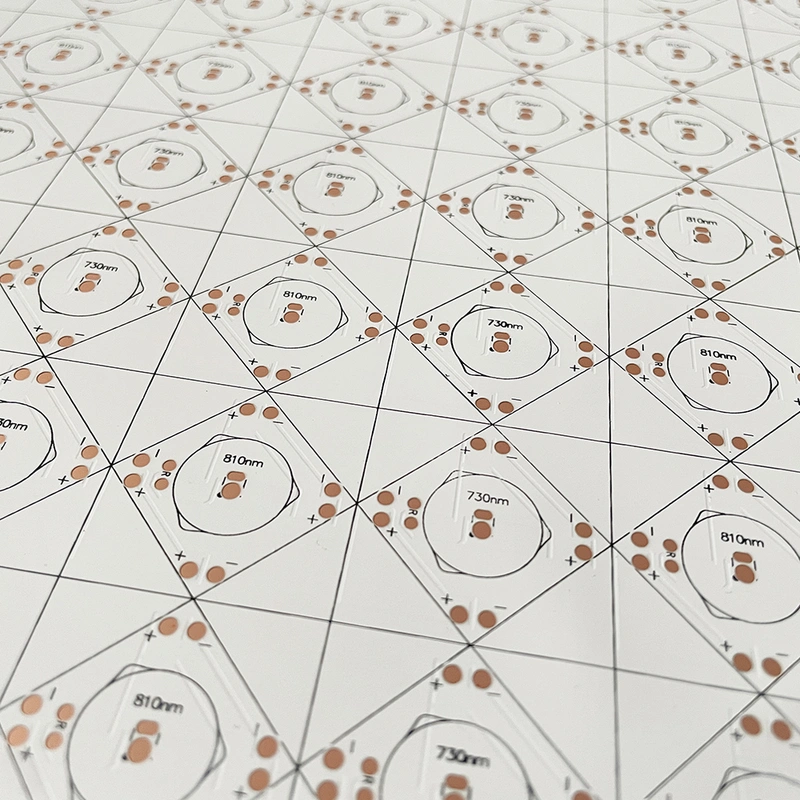

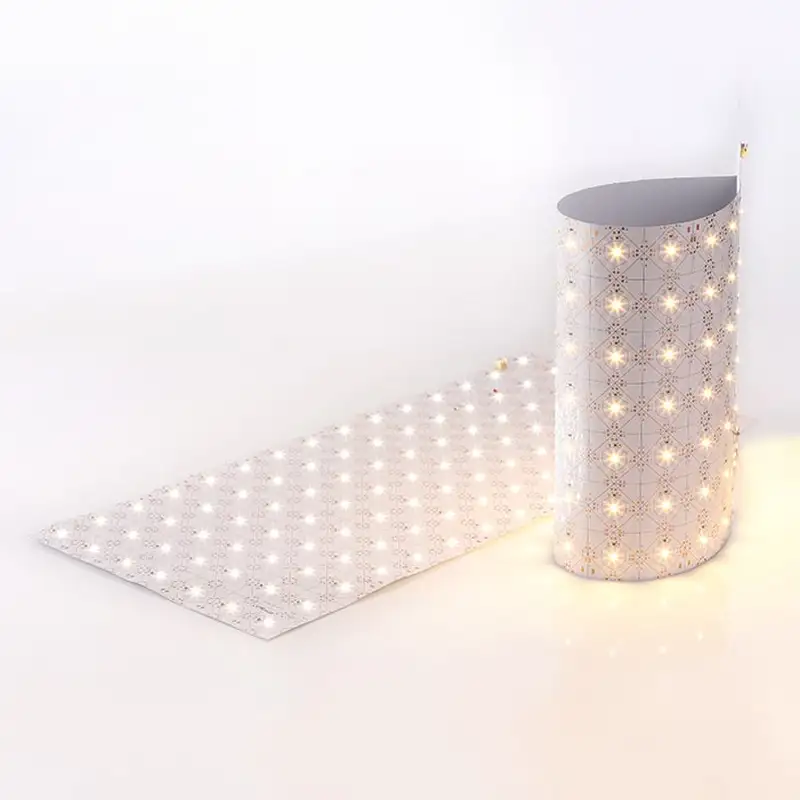

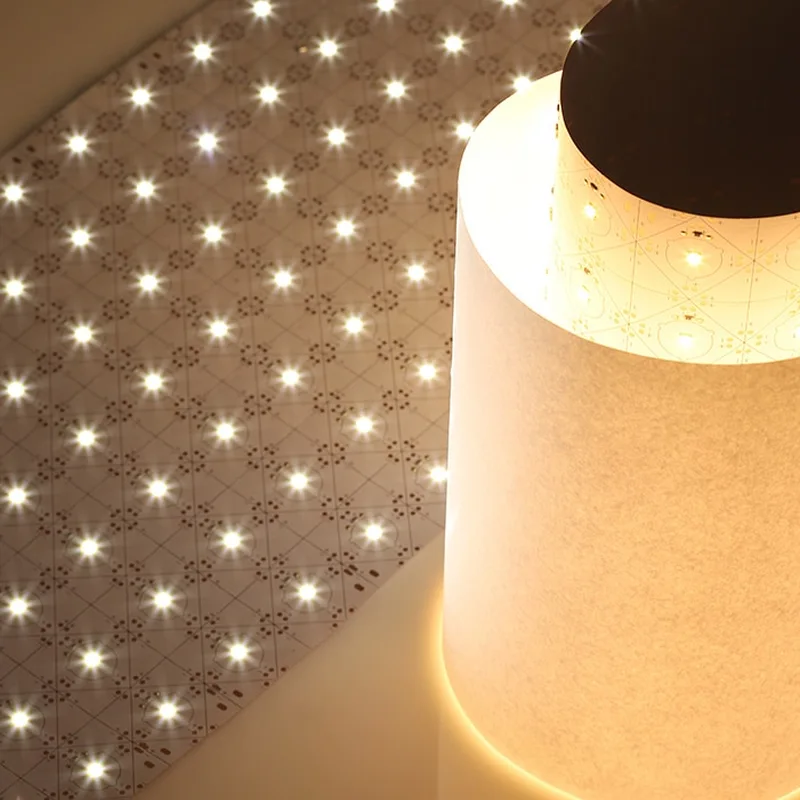

This Flex LED panel is a flexible lighting solution for special applications such as backlighting and indirect illumination. The product incorporates high efficiency LED components fitted to a flexible copper PCB panel. iFlex can be custom made and configured to any shape or size and is available in a variety of intensity options.
Electrical Parameters
| Input Voltage | 12VDC or 24VDC |
| Max Power Consumption | 32W |
| LED Driver Classification | Remote Constant Voltage |
| Light Source Classification | SMD2835 LED |
| LED Qty | 105pcs Per Panel |
Mechanical Specifications
| IP Protection Rating | IP20 Indoor Use Only |
| Standard Panel Dimension | 500x235x1.2mm |
| PCB Material | Pure Copper |

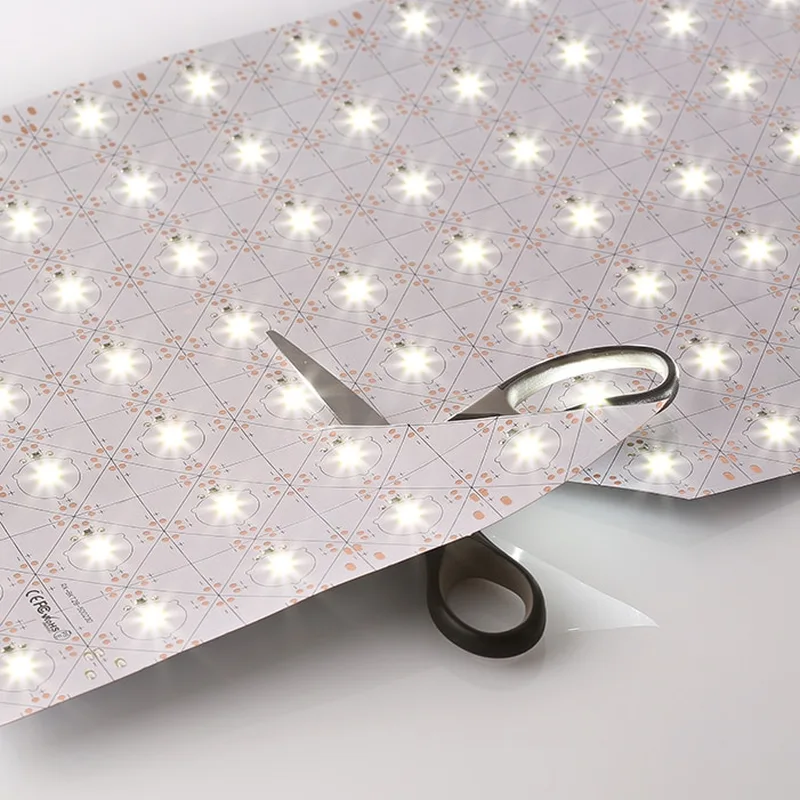

| Cutting Increments | Panel can be cut to suit sizes |
| Recommended Operating Temp | -30°C – 40°C / Max tcp 60°C |
Configuration Options
Special sizes and configurations available by request
RGB option available by special request
DALI dimmable LED driver available by request
160° spreader lens optic accessory available by request
Photometric Information
| Typical Light Source Efficacy | 105lm/W |
| CCT Colour Temperatures | 2700K / 3000K / 4000K / 6500K / Custom |
| Colour Rendering Index [CRI] | >80 |
| Beam Angle / Viewing Angle | 120° (160° with spreader lens optic) |
Detailed photometric report and IES files available by request
Lighting Design & Simulations
Industralight can provide independent LUX calculations and 3D lighting simulations for your project incorporating this product. Please contact our office for more information on design services.
Warranty Information
Industralight fixtures are manufactured to a high quality standard using finest quality LED components and materials. This product is covered by a full product replacement warranty.
Please see our warranty policy for full details
| Series Model Number | I-Flex LED Panel |
| Specify Colour Temperature | 2700K / 3000K / 4000K / 6500K / Custom |
| Specify Panel Size | 500x235mm |
| Specify Voltage | 12VDC / 24VDC |
| Optional Accessory | Spreader Lens Optic 160° |
All product specifications are subject to change without notice. Industralight assumes no responsibility of errors or omissions. Please confirm product details prior to ordering.
