DC48V 260W Separate 3 Channel 500x30mm LED Full Spectrum Grow Light Strips Bar PCB Module with Samsung ChipsThis is the 500x30mm LED module,we could use different quantity to combine a line or an array to fit our greenhouse or growtent.This LED module is DC 48V constant voltage design, which is more convenient for the users to purchase the power supply because it is more widely used.

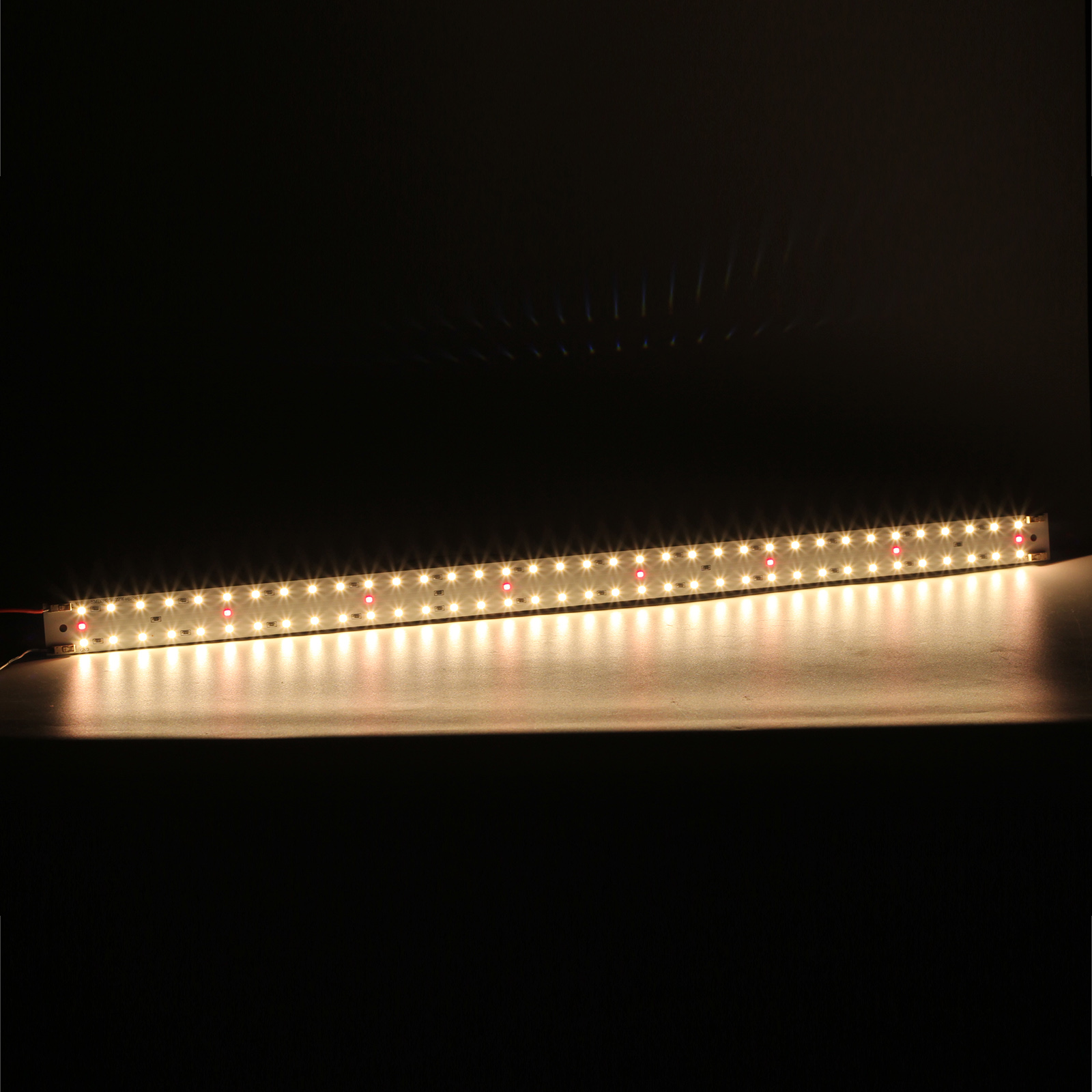

DC 12V LED Strip :PCB Thickness: 3.0mm ( No need for heat sink)Dimension: 590 x 28.5mmInput Type: Constant VoltageInput Voltage: DC 12VRated Current: 2.1A (25W)Connectors: 2 Pairs Molex OriginalRecommend Chain Quantity: ≤ 4pcsLEDs: 80pcs ( 72pcs White 3000k + 8pcs Red 660nm)
Model / Image / PCB Thickness / Dimension / Input Type / Input Voltage / Rated Current / Connectors / Daisy Chain Quantity1. PCB Thickness ---The 2.0mm or 3.0mm PCB are all no need for the extra heat sink usually, 3.0mm thick PCB has very good performance on the temperature control.2. Input Type --- The "Constant Voltage ( CV ) " solution is about 80% efficiency of the " Constant Current ( CC ) solution base on the same power (because CV solution need some extra resistors to fix the voltage and waste some power) , but the cost of CV power driver is much cheaper than CC power driver . So if you care the efficiency more, we recommend the CC solution, if you care the cost and not very professional on this, CV solution such as DC 12V / 24V is more simple and convenient.3. Chain Quantity --- The recommended number of connections supported by one channel of power inputs. Excessive current will generate a lot of extra heat. Please increase the channel to get electricity directly from the power driver to get rid of this restriction.

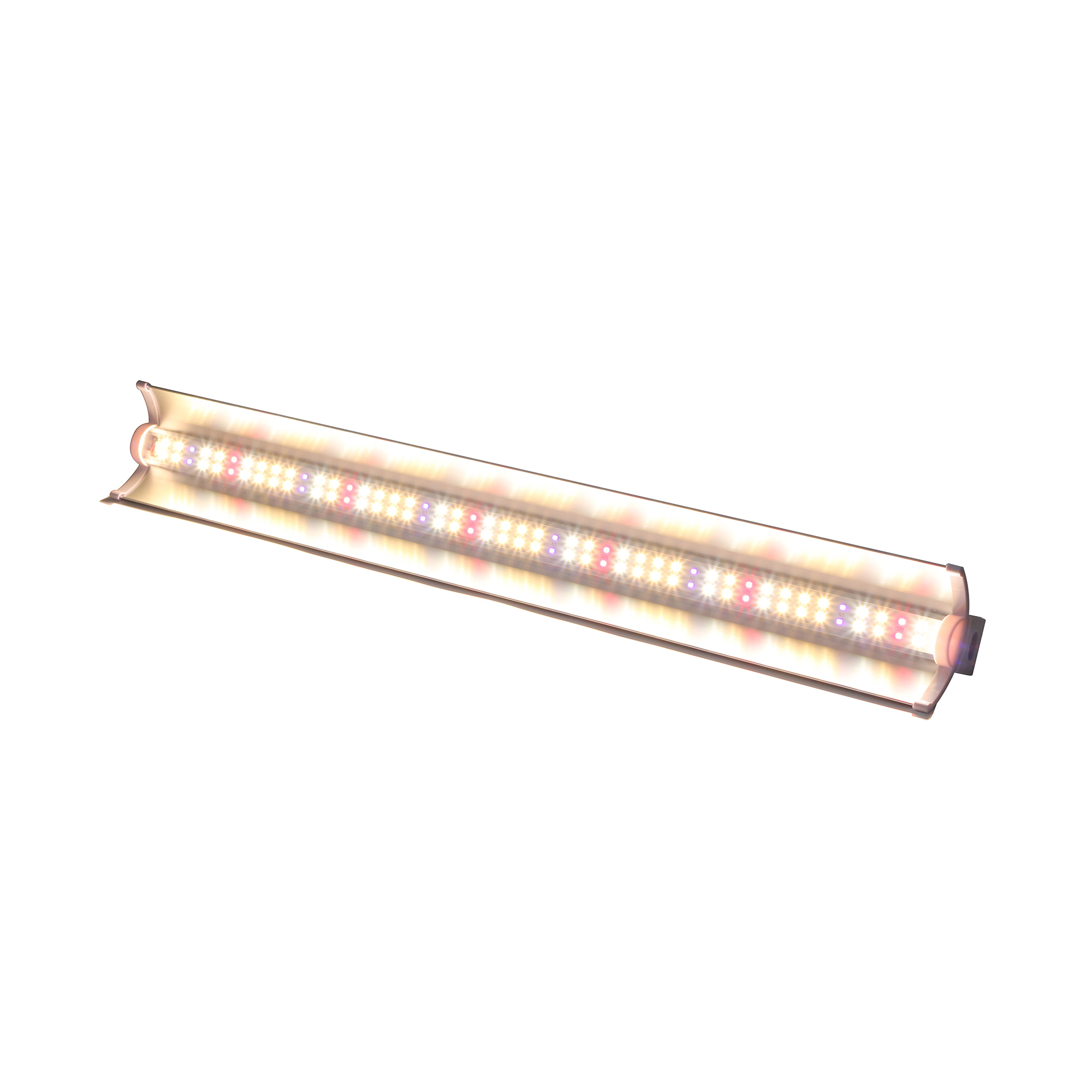

【Plug and Use Directly】This bar lamp designed with built in power supply and it is ready to use directly, just plug the socket.【Aluminum Reflector for Higher Efficiency】This lamp designed with reflector to avoid the light divergence and waste, it will get higher light efficiency base on the same power. Each bar could reach 258 Umol/s which consume 25W only.【Can be Spliced and Freely Combined】This bar could be extended by optional mounting kits, arrange the bar density freely according to need, DIY vertical and horizontal assembly.【Full Spectrum】46pcs 3000K LED， 26pcs 5000K LED, mixed 12pcs Red (660nm) and 12pcs UV (395nm) which create a full spectrum and cover the entire plant growth process from germination to flowering and fruiting.

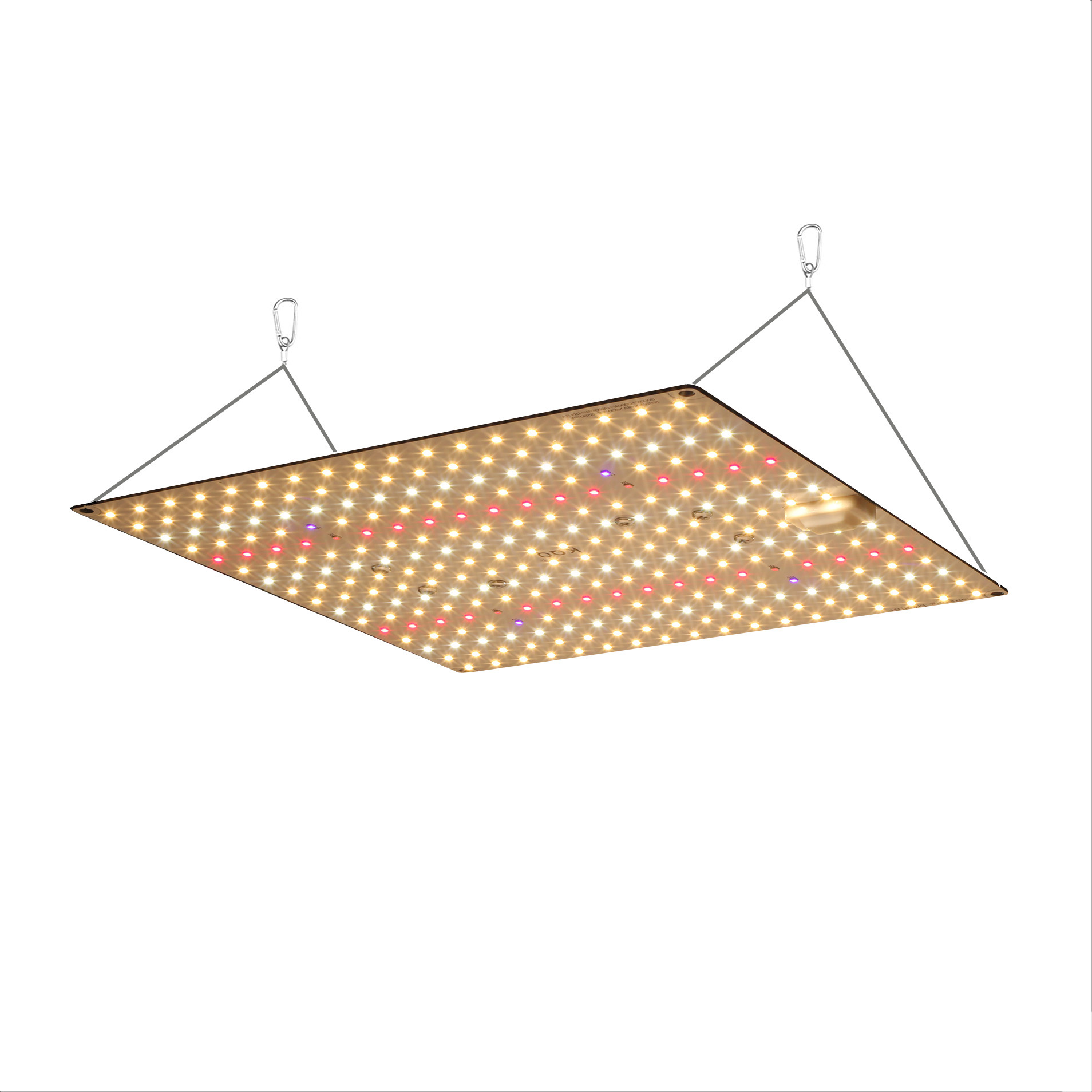

【No Need Extra Heat Sink Parts】This lamp designed base on a very high thickness (2.0mm) and large size (294x294mm) aluminum PCB which has very good performance on the temperature control, no need to worry about the stability.【Real High Power】The actual power is 100W which is much higher than the similar products in the market which the actual power is half only.【High Efficiency Samsung LED Diodes】Use original Samsung LM281B+ High efficiency LED diodes which could reach 165lm/w and 2.2umol/j, >1000 PPFD (30cm height).【Full Spectrum】176pcs 3000K LED， 72pcs 5000K LED, mixed 32pcs Red (660nm) LED and a few UV/IR LED (4pcs each) which create a full spectrum which will cover the entire plant growth process from germination to flowering and fruiting.

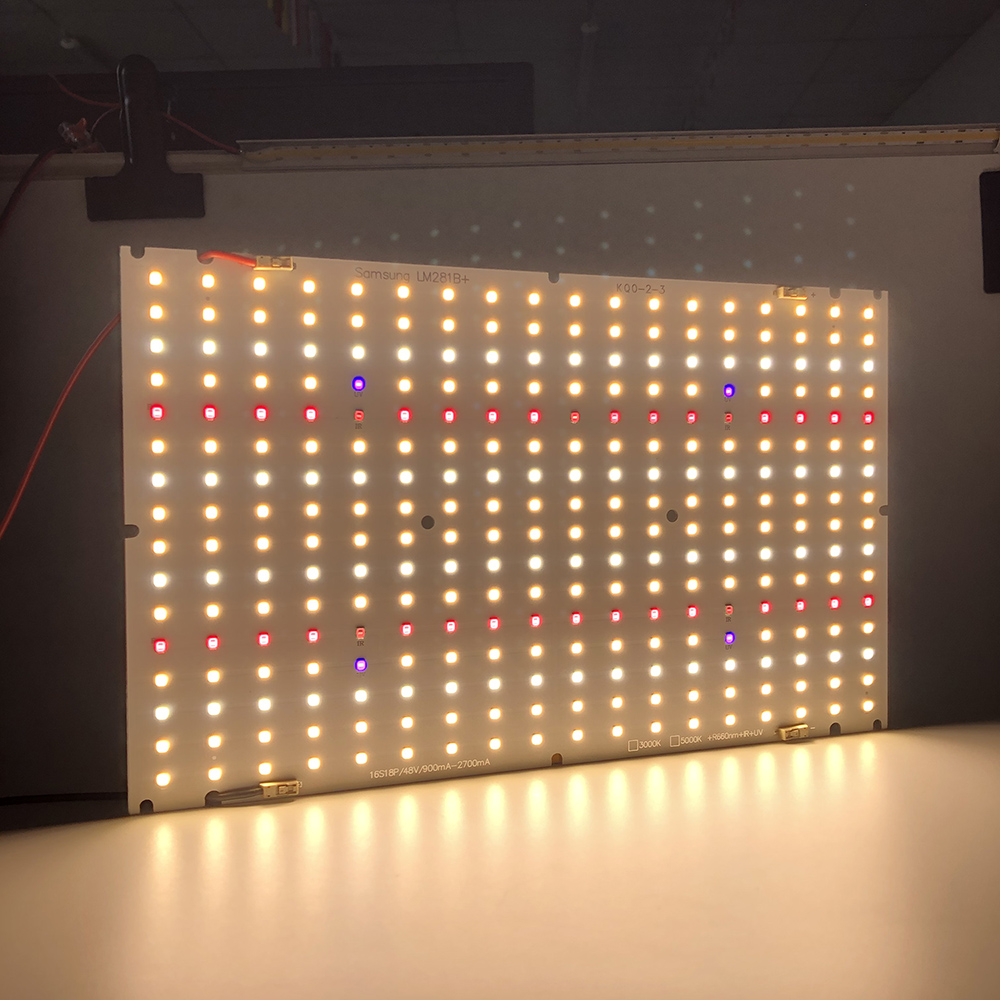

This panel was designed base on the Samsung high efficiency LM281B+ SMD 2835 LEDs(176pcs 3000K + 72pcs 5000K), mixed 660nm Red LEDs (32pcs) and less UR /IR LEDs (4pcs each). 2.11μmol/JThis combination will be suitable for the entire growth process of most plants from seeding, germination, flowering to fruitingThe advantage of 3000K has plenty blue for full cycle, if will be very good if you want to make veg/flower rooms.The advantage of of 5000K for veg is that your get tighter internodes, which gives you a more balanced distribution of light over the colas later.Red light (660nm) Does its best work in the flowering phase. A higher intensity of red promotes a higher yield.UV has been shown to increase the amounts of THC, CBD, and terpene production in plants. But no need high power.Far IR light is made up of hot wavelengths. This type of IR light is used in grow lighting to help plants like og kush and sour diesel bloom and thrive.

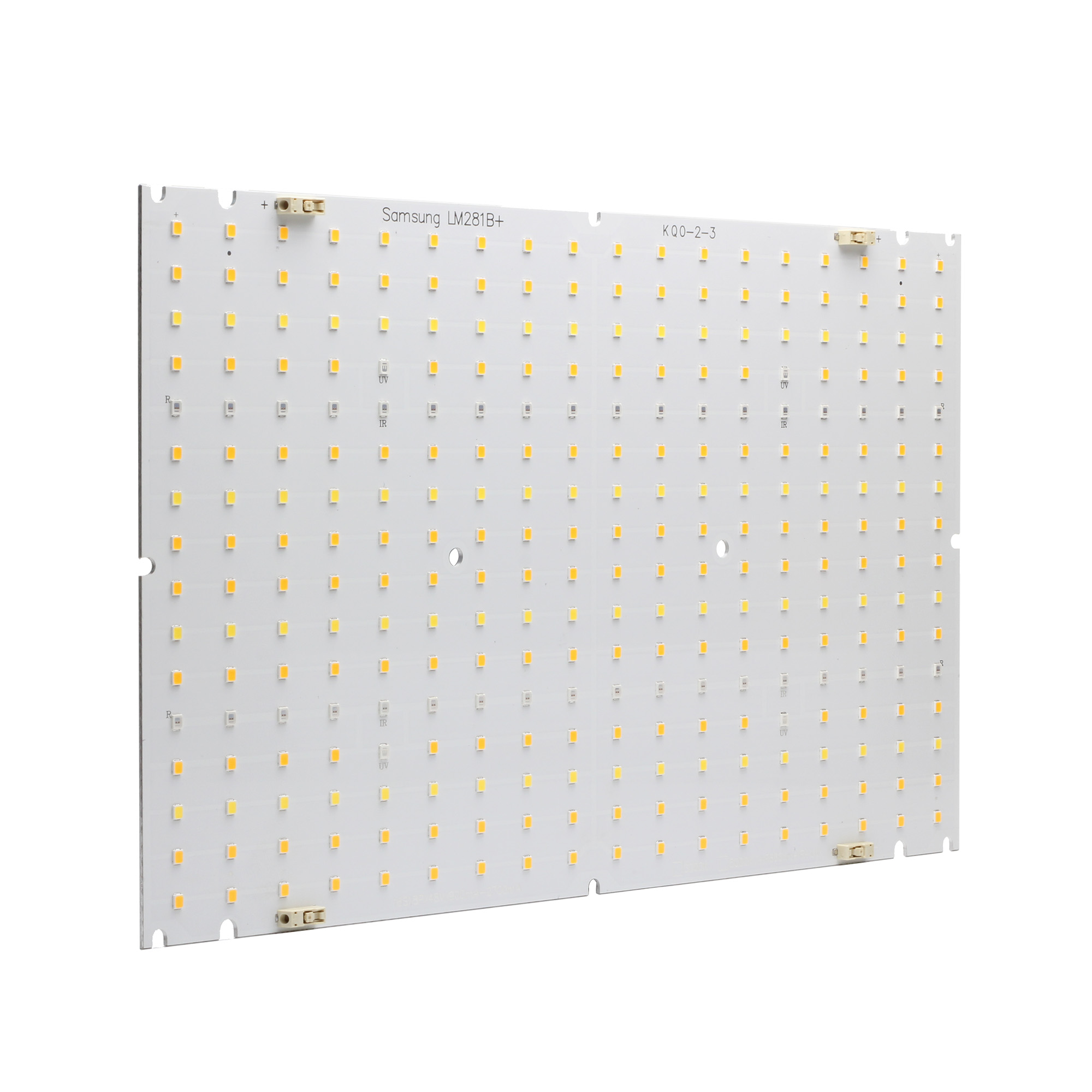

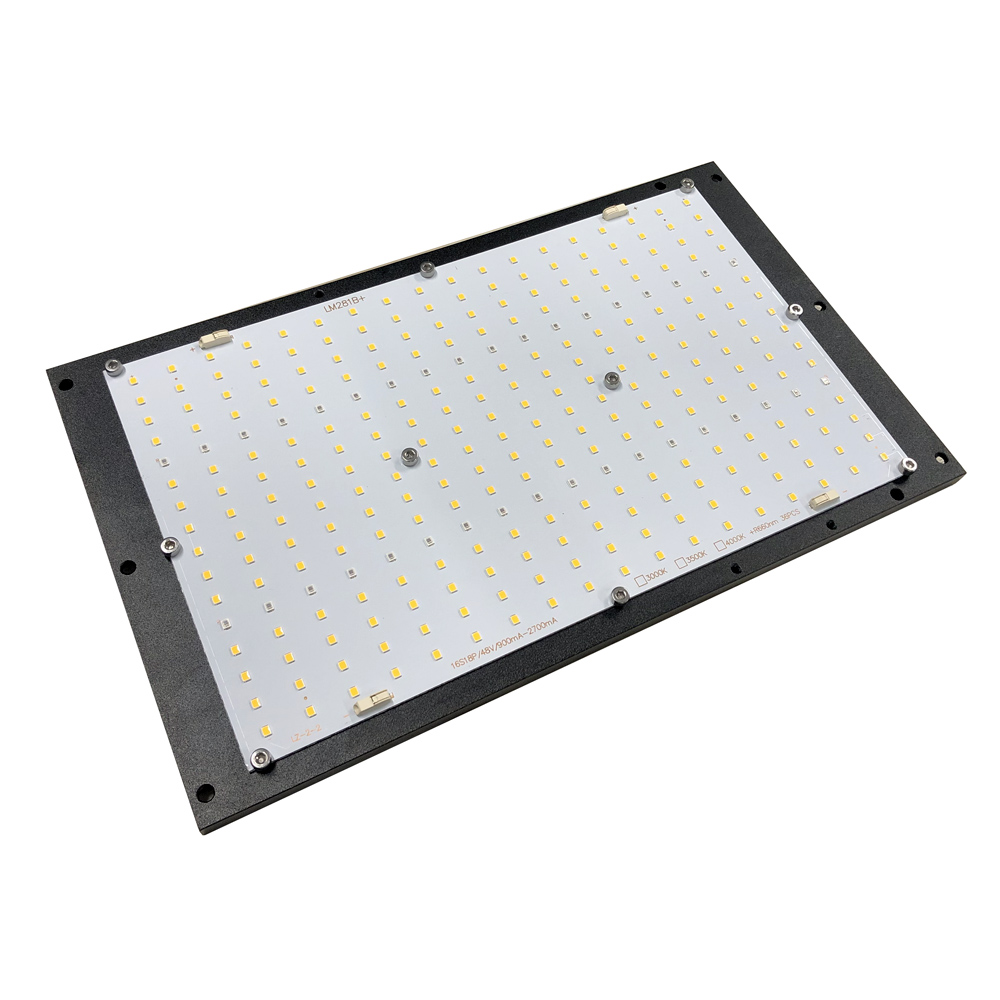

120W High Light Efficiency Quantum PCB Board with Original SAMSUNG LM281+ LED Chip 3000K+5000K+660nm Red + UV + IR This panel is designed base on the Samsung high efficiency LM281B+ SMD 2835 LEDs(176pcs 3000K+72pcs 5000K), mixed 660nm Red LEDs (32pcs) and less UR /IR LEDs (4pcs each).

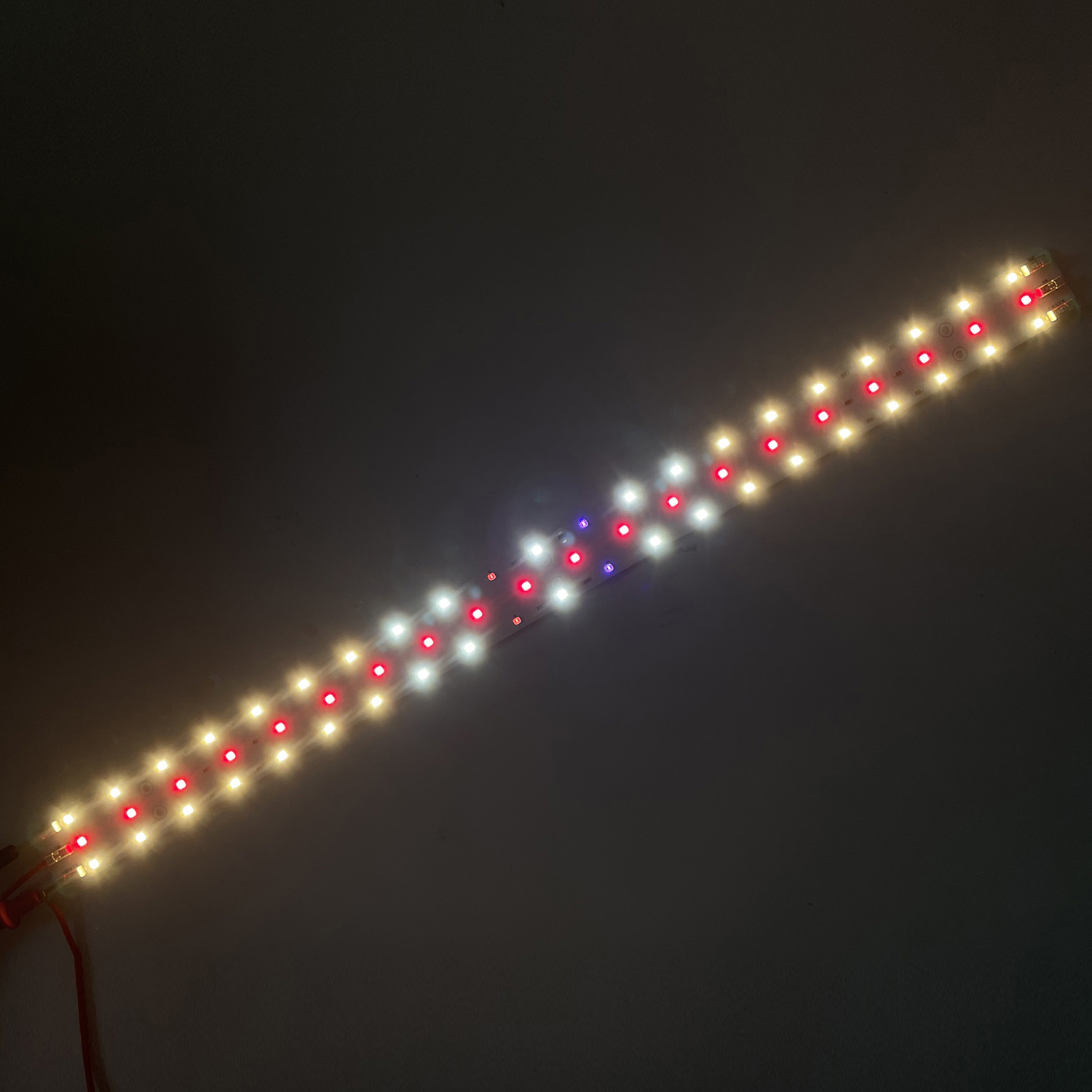

DC24V 30W Constant Voltage Quantum Line LED Full Spectrum Grow Light Strips with Samsung LEDs【Original Samsung LEDs】 This is a new led grow light strip made with Samsung LM281B+ White LED diodes and Epistar color LED diodes.
【Full Spectrum】 This PCB includes 38pcs White LED ( 28pcs 3000K and 10pcs 5000K) , 20pcs Red (660nm), 2pcs IR (730NM) LEDs and 2pcs UV(395nm) mixed LEDs. It is a full spectrum module.
【Cost Saving Solution】 The constant voltage quantum line is not so efficiency as the constant current quantum board, but it is more easier to use, it is more convenient if you are not professional, all DC24V power driver works with it, and the most important is the cost of DC24V constant voltage power driver is much lower than the constant current power driver.
【Separately Input of Red】 This quantum line designed with separately control for the Red light, it will help control the plants growing scientifically, and save the power while the red is not necessary.
【Recommend Chain Quantity】 The recommended number of connections is 6pcs PCB. 10pcs Maximum. it would have obviously voltage drop for more connections.
