240W QB288 Full Spectrum Grow Light PCB Module with LM301B LM281B+ Samsung LED Chips 3000K 660nm Quantum Board
240W QB288 Full Spectrum Grow Light PCB Module with LM301B LM281B+ Samsung LED Chips 3000K 660nm Quantum Board
  • 240W QB288 Full Spectrum Grow Light PCB Module with LM301B LM281B+ Samsung LED Chips 3000K 660nm Quantum Board
  • 240W QB288 Full Spectrum Grow Light PCB Module with LM301B LM281B+ Samsung LED Chips 3000K 660nm Quantum Board

240W QB288 Full Spectrum Grow Light PCB Module with LM301B LM281B+ Samsung LED Chips 3000K 660nm Quantum Board

240W QB288 Full Spectrum Grow Light PCB Module with LM301B LM281B+ Samsung LED Chips 3000K 660nm quantum board grow lights

The LZ 240W Quantum Board Module - Made by Samsung LM301B LED with extra Red (660nm), creating tailor-made light recipe with up to 2.8μmol/J high efficacy for medicinal plants. Installed with 24.8×7.9in (63×20cm) large heat sink, WAGO 2060 & 221 splicing connectors and MEANWELL LED driver for lower temperature, higher reliability and longer lifetime. Due to its tailor-made light recipe, high efficacy, low temperature rise and long lifetime, the RX-LM301-312 Series will be a great choice for hobby growers medicinal plants cultivation in small grow tents.


info@ledpcba.com

Description

Free Shipping 240W QB288  Full Spectrum Quantum Board PCB Module with LM301B Samsung LED Chips 3000K 660nm for Grow Light

· Super High efficiency white light Quantum Boards

· White Light Full Spectrum for better results

· each board 4pcs High quanlity Wago connector.

· Better canopy light penetration with diffused light

· Perfect performance for veg and bloom

· 5 Year Warranty for board

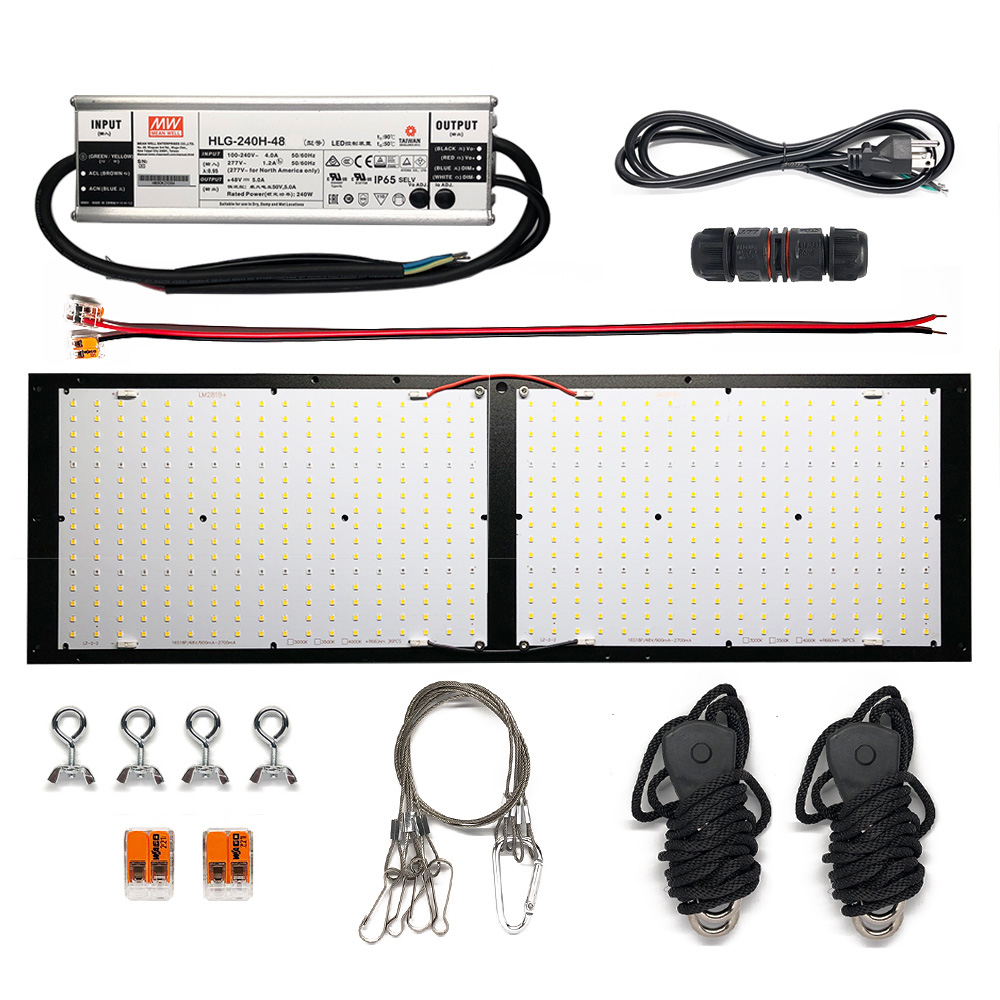

Package Contents:

1. The LED PCBA

2. Aluminum Heat-sink

3. Meanwell Dimmable Power driver

4. 220V Power Cable （US / UK / EU / AU)

5. Hanging rope x 4

6. Adjustable heavy duty hanger x 2

7. Wago 2P cable connector x 4

8. Ring Screw set for hanging

9. Waterproof  cable connector



Part No.
Package contents
Power
Gross Weight
CCT/Wavelength
QB288-LM301B
QB288 Board(16S18P), 1pcs;
Heatsink: 326*195*10mm;
Driver: XLG-150-H-AB;;
Mounting and connecting Accessories
Potentiometer (Optional);
120W
2.9kg
White: 3000K
or
White + Epistar 660nm
QB288x2-LM301B
QB288 Board(16S18P), 2pcs;
Heatsink size: 634*195*10mm;
Driver: HLG-240H-48B;
Mounting and connecting Accessories
Potentiometer (Optional);
240W
4.4kg

Default Shipping
White: 30000K
or
White + Epistar 660nm
QB288x3-LM301B
QB288 Board(16S18P), 3pcs;
Heatsink size: 940*195*10mm;
Driver: HLG-320H-48B;
Mounting and connecting Accessories
Potentiometer (Optional);
300W
6.2kg
White: 3000K
or
White + Epistar 660nm
QB288-LM301B-PCB
QB288 Board(16S18P), 1pcs
120W
0.1kg
White: 3000K
or
White + Epistar 660nm


Quick Details

  • Type:

  • LED Modules

  • Chip Material:

  • AlGaInP

  • Emitting Color:

  • Warm White

  • Luminous Intensity:

  • 200LM/W

  • Luminous Flux(lm):

  • 48000

  • Optical Attenuation(%):

  • 2

  • Power:

  • 240W, 240W

  • Power Dissipation:

  • 240

  • Viewing Angle(°):

  • 120

  • Color Rendering Index(Ra):

  • 80

  • Color Temperature:

  • 3000K

  • Operating Temperature(℃):

  • -20 - 85

  • Storage Temperature(℃):

  • -10 - 65

  • Place of Origin:

  • Guangdong, China

  • Brand Name:

  • LZ

  • Certification:

  • CE, RoHS

  • Product name:

  • Quantum Board 240W

  • Application:

  • Grow Lights

  • LED Chip:

  • Samsung LM301B

  • LED Type:

  • SMD 3030

  • LED Quantity:

  • 288pcs

  • PCB Board Material:

  • Aluminum

  • PCB Board Thickness:

  • 1.6mm

  • PCB Board dimension:

  • 286x174x1.6mm x 2pcs

  • Heat Sink dimension:

  • 634x195x10mm
