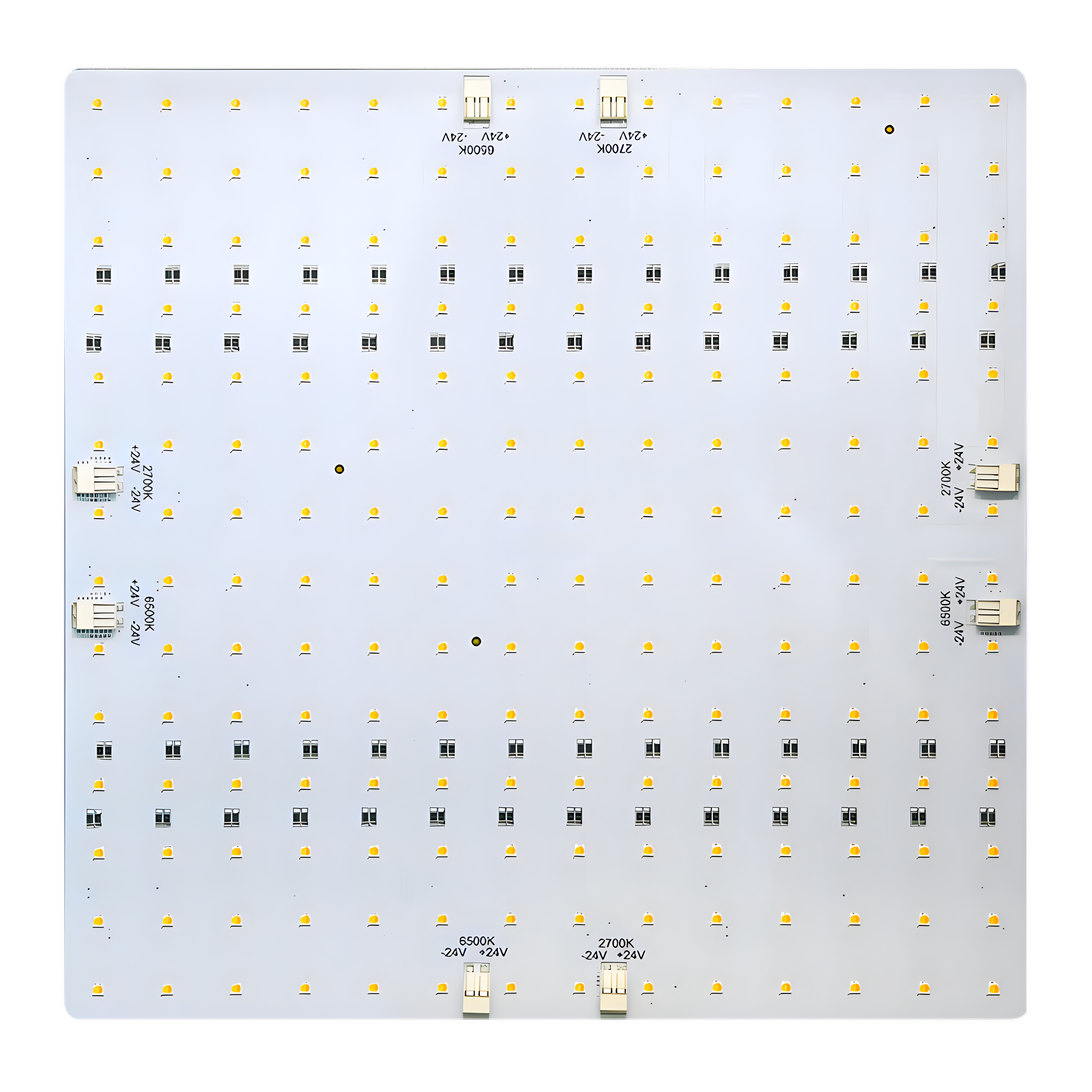

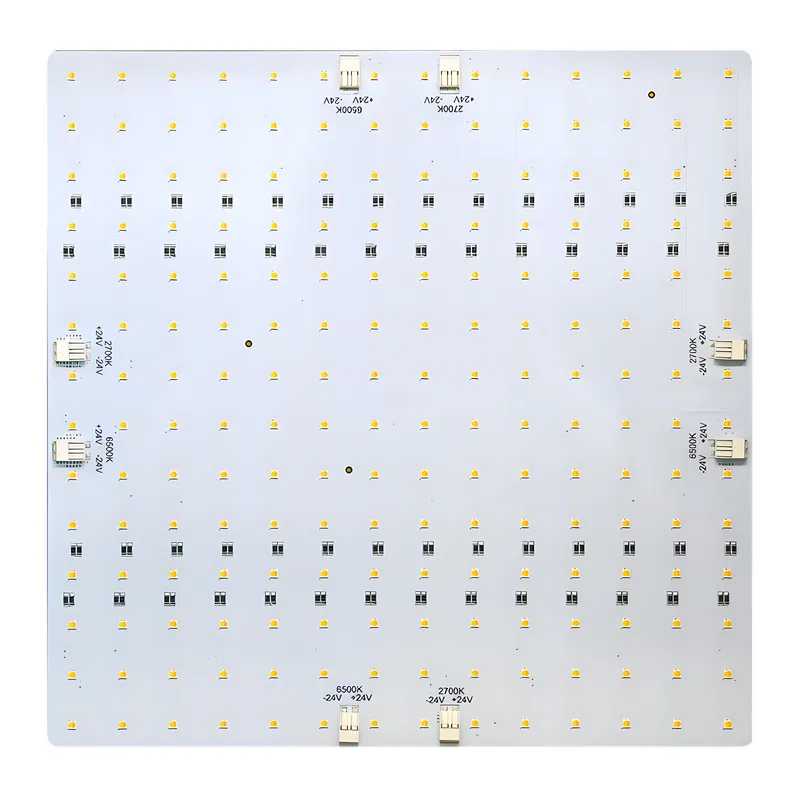

LZLED® high CRI 2-in-1 LED module is a 280mm*280mm PCB mounted with CRI 95+ 2-in-1 tunable white SMDs. It can be easily installed in common panel luminaires and provide a convenient PCB solution. Utilising the Wago connectors, it can easily connect to each other to form a matrix pattern (1x2, 2x2, etc.) for a wide variety of shapes.
The 2-in-1 structure of the LED helps reduce PCB width for thinner side emitting lights and allows for denser and more consistent light output from limited lighting area. It can be used in a variety of applications demanding high color quality and tunable white performance.
Power 100W
Dimensions 280mm*280mm
Light Source 196*3030 2 in 1 SMD LED
CCT 2700K – 6500K
CRI (Ra) 95+
Rf 92
Rg 100
TLCI 2012 97
SDCM <3 step
Viewing Angle 120°
Input Voltage DC 24V
Input Current 2A per CW/WW
On-Board Terminals Wago 2060-451 2-pin
