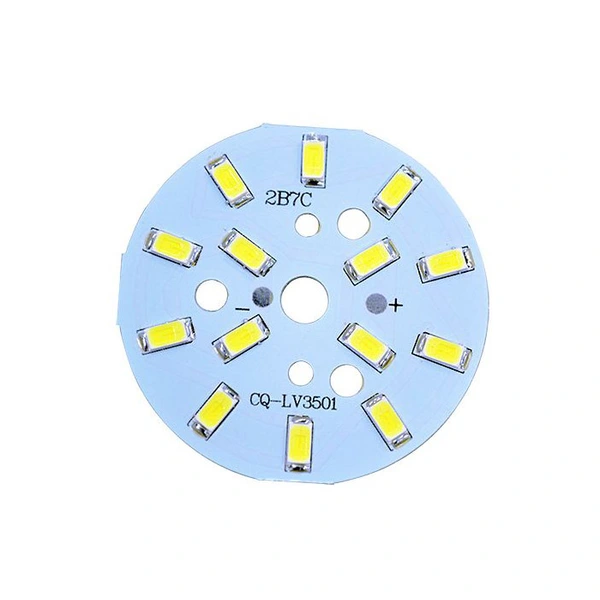

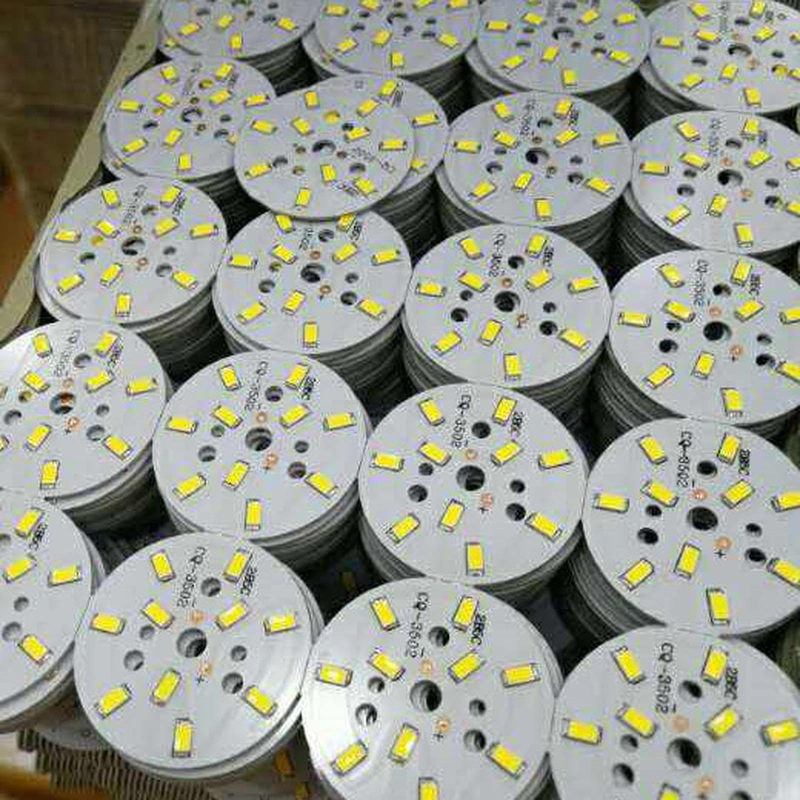

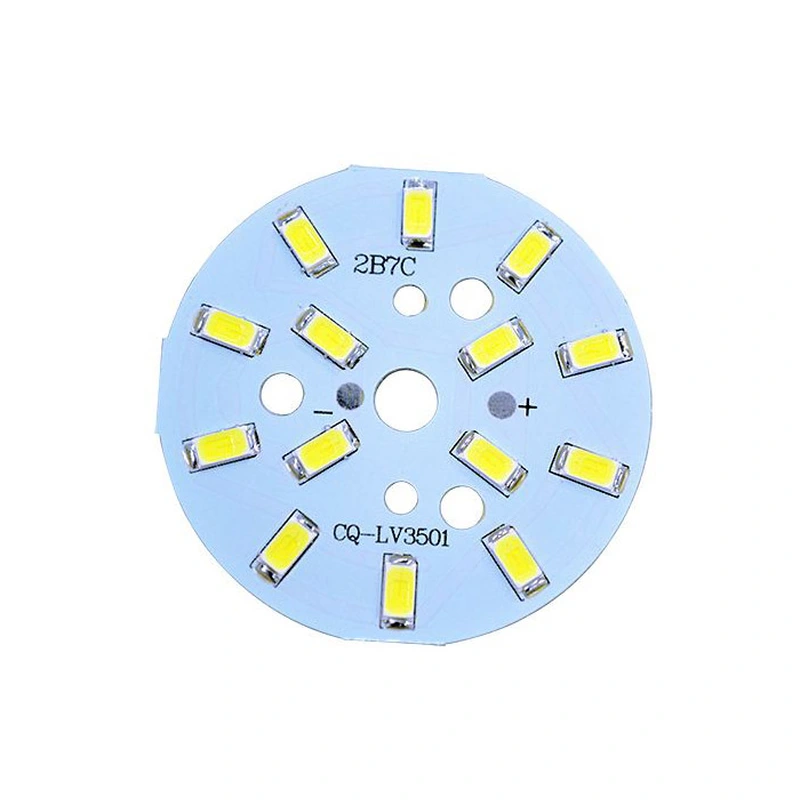

3W SMD5730 LED PCB Board with 23mm 25mm 31mm 44mm White Light Source for Led Bulb
Purposes: to replace the downlight bulb, high power LED lights.
Type: aluminum plate welded lamp module.
Color: White(6000-6500K), Natural White(4000-4500), Warm
White(3000-3500)
Applications: indoor and outdoor lighting, road lamp, flashlight, lighting, spotlights, buried lights.
Details:
| Power | Voltage | Current | LED Chips | Size | Luminous Flux |
| 2W | DC 6-7V | 280-300mA | 4pcs | Φ20mm | 55-60LM / LED |
| 3W | DC 9-11V | 280-300mA | 6pcs | Φ23mm | 55-60LM / LED |
| 3W | DC 9-11V | 280-300mA | 6pcs | Φ32mm | 55-60LM / LED |
| 3W | DC 9-11V | 280-300mA | 6pcs | Φ40mm | 55-60LM / LED |
| 3W | DC 9-11V | 280-300mA | 6pcs | Φ44mm | 55-60LM / LED |
Detailed Terms for PCB Assembly
| Quantity | Prototype&Low Volume PCB Assembly, from 1 Board to 250,is for specialty, but we can handle orders up to 1000. |
| Type of Assembly | THD (Thru-Hole Device), SMT (Surface-Mount Technology), SMT & THD mixed, Double-sided SMT and THD assembly. |
| Solder Type | Water Soluble Solder Paste, Leaded and Lead-Free. |
| Components | Passives parts, smallest size 0201; BGA, uBGA, QFN, POP, and Leadless chips; Fine Pitch to 0.8Mils; BGA Repair and Reball; Part Removal and Replacement Connectors and terminals. |
| Bare Board Size | Smallest: 0.25x0.25 Inches; Largest: 20x20 Inches. |
| File Formats | Bill of Materials Gerber Files Pick-N-Place File(XYRS). |
| Type of Service | Turn-Key, Partial Turn-Key or Consignment. |
| Component Packaging | Reels,cut tape,Tube and tray,Loose parts and bulk. |
| Turn Time | Same Day Service to 10 day service. |
| Testing | X-ray Inspection AOI (Automated Optical Inspection) ICT (In-Circuit Test)/Functional Testin |
