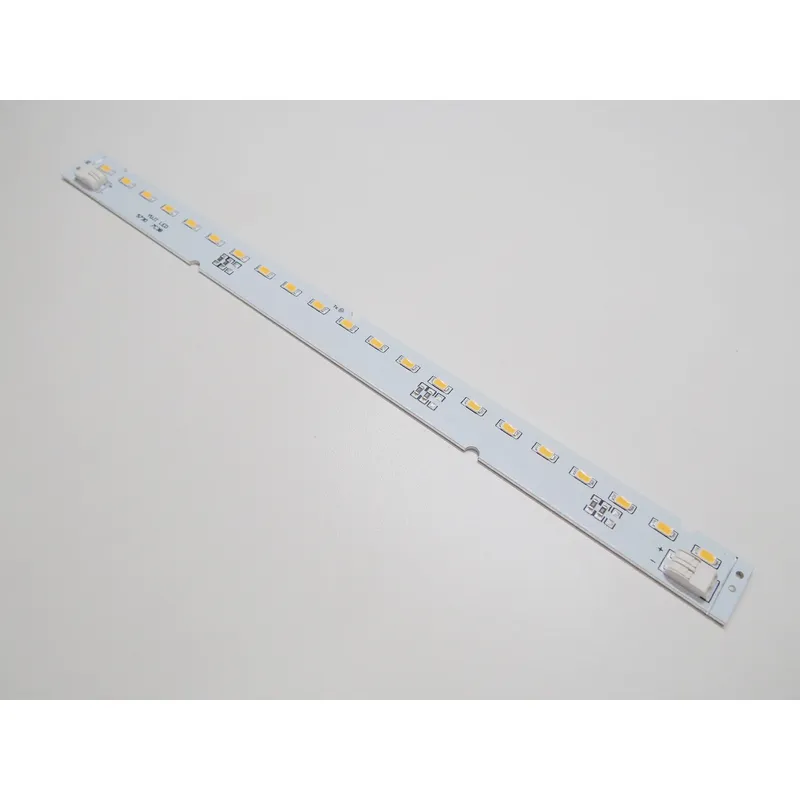

LZLED® CRI 98 LED linear module comes in a standard footprint and provides a convenient PCB solution for high CRI LED applications. It is designed according to the Zhaga standard and is compatible with various common luminaires. It does not require additional heat sink and can be daisy-chained simply with the provided Wago connectors without soldering. Providing 98 Ra, this versatile LED module can be used in a variety of applications demanding high color quality and performance.
Power 8.6W
Dimensions 280mm*20mm*2.0mm
Light Source 21* CRI 98 5730 SMD or CRI 98 2835MX SMD

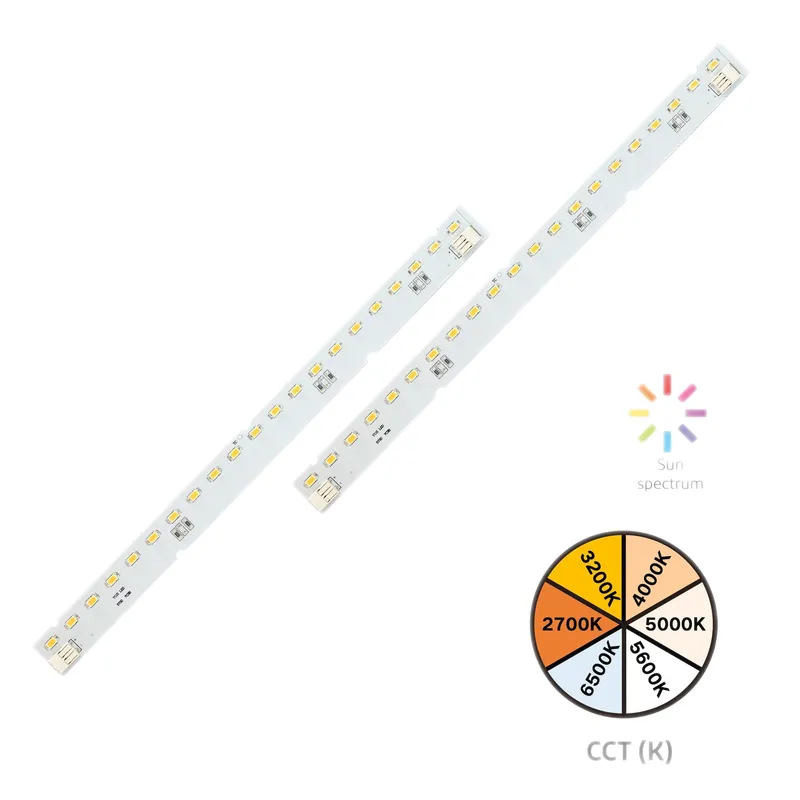

CCT & Luminous Flux 2700K 480lm-545lm
3200K 520lm-630lm
5000K 545lm-630lm
5600K 560lm-650lm
6500K 610lm-700lm
CRI (Ra) 98 (typical)
R9 90 (typical)
Viewing Angle 120°
Forward Voltage DC 24V
Forward Current 360mA
On-Board Terminals Wago 2060-902
