Specification
Rated Power | 120W |
PCB Circuit | Constant Current |
Input Current | 2.5A Rated, (900~2700mA works) |
Input Voltage | 48V DC (40~48V) |

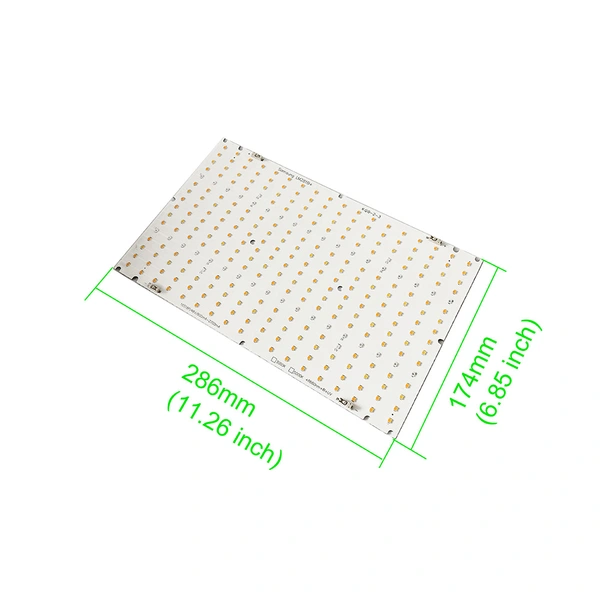

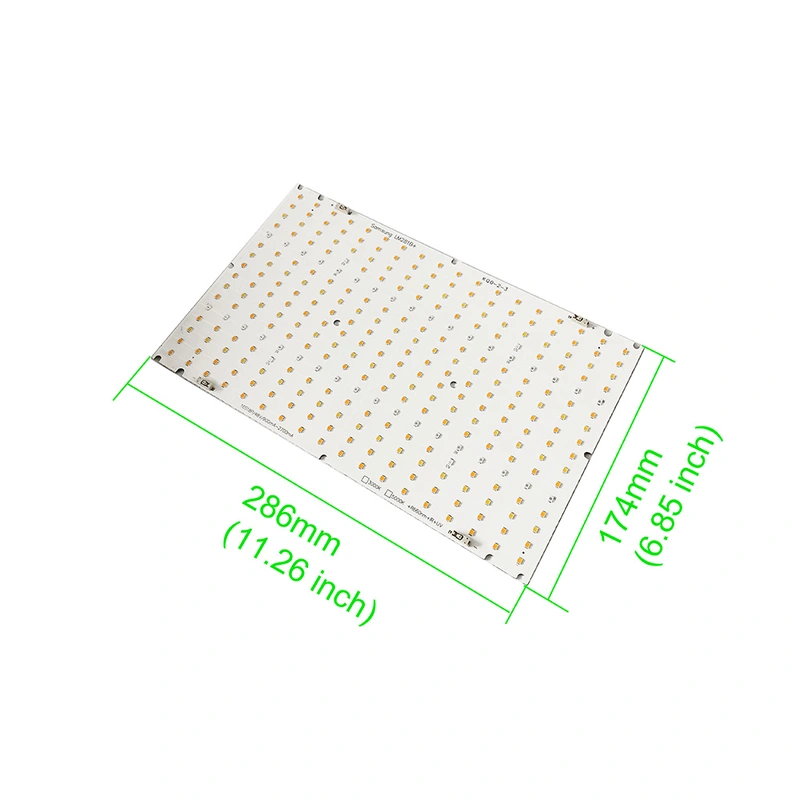

PCB Dimension | 286mm x 174mm |
PCB Thickness | 1.6mm |
Screw Hole | M4 (4mm) , 10pcs |
LED Quantity | 288pcs ( in total ) |
Lighting Angle | 120° |
CRI | >80 |
Recommend Driver | If Parallel Connection, Constant Current Driver 1pc - Meanwell HLG-120H-48 (120W@2.5A) 2pcs - Meanwell HLG-240H-48 (240W@5A) , 3pcs - Meanwell HLG-320H-48 (320W@6.7A) 4pcs - Meanwell HLG-480H-48 (480W@10A) Other Brand driver with similar spec is ok. We do not recommend connect more quantity because it will have extra heat because of very high current. |
