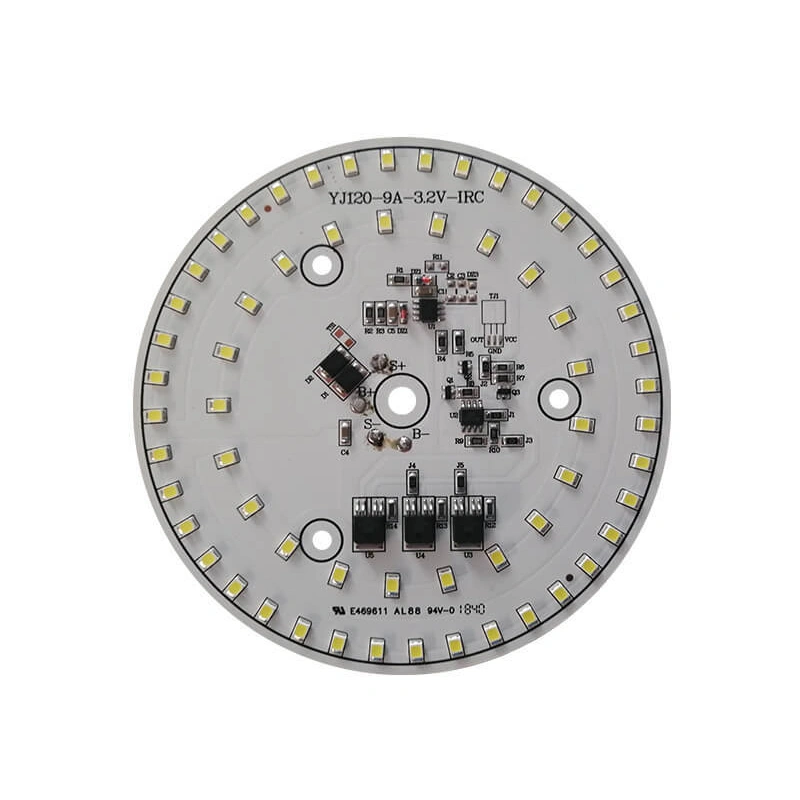

Model No. | LZ2020071609 | Board Size*Thickness | Φ120mm*1.2mm |
Input Voltage | DC 3.2V | Color rendering index | Ra 80 |
Input Current | 2.8A | Luminous Flux | 1434lm |
Power Dissipation | 9W | Thermal Conductivity | 1.0W/m.K |
LED | PCT 2835 LED | Operating Temperature | -20~45°C |
Color Temperature | 6000K | Featured Function | IR Induction and 4-phase power descending |
MAIN PRODUCT ADVANTAGE
● Solar intelligent control optoelectronic module.
● IR induction function.
● Automatic power descending output in four stages, 100% x 2 hours + 70% x additional 2 hours + 30% x additional 2 hours + stop working.
● Branded PCT 2835 LEDs. No EMI.
● No concern in ultraviolet ray or electromagnetic radiation.
● CE EMC, CE LVD, RoHS, PSE, C-Tick certificate.
● We support our customers to pass qualification test such as energy star, SAA, REACH, T-24, and UL certification and so on.
● Intelligent control and maintenance free.
● Automatic power descending output in four stages with different SCM timing control.
● More different power descending output modes for options.
● IR/Microwave induction functions for options.
● Voice-operated and light-operated functions for options.
● Energy saving and environmental protection.
● Stable performance, reliable and long life.
● Linear constant current ic control, optoelectronic integration with over-temperature protection design. When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.
● Customized board design and manufacturing acceptable in board size and shape, color temperature, CRI(Ra)and other related requirement in the light source boards.
● Customized SCM development for different timing controls acceptable.
Advantage of solar intelligent LED engine solutions in LED lighting field
● The solar LED modules are cost saving solutions.
● Neat outer appearance and easy installation.
● Driverless design, cost saving in the driver purchasing and related shipping cost.
● Maintenance-free.
● Customized design in solar PV panel and battery setup as per customers’ preference.
● Differential designs assure customers to keep agility in developing new lights with their own brands in the light appearance and its marketing pricing strategy.
