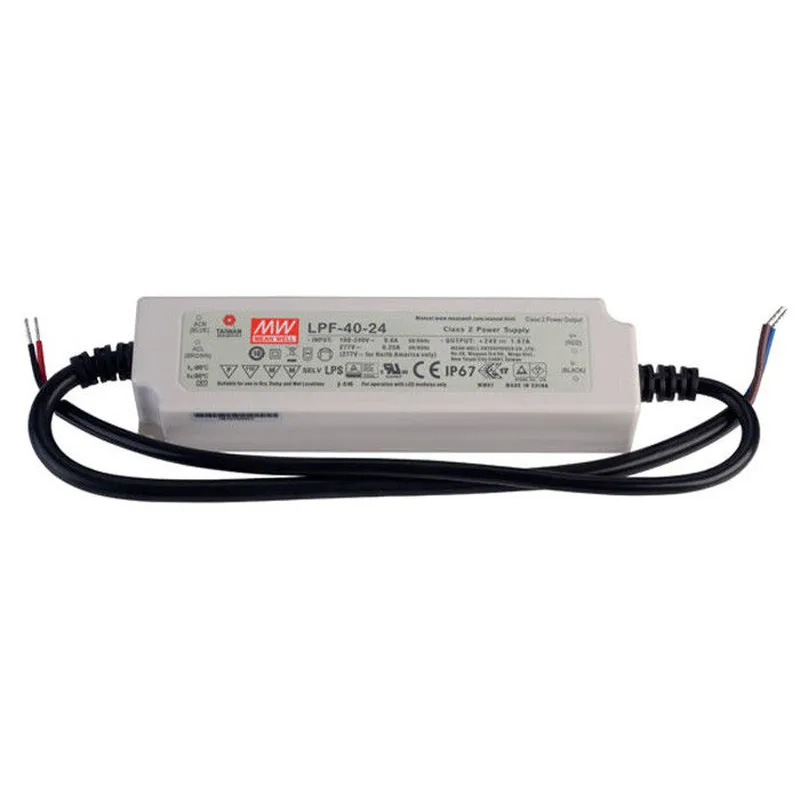

LPF-40-24 CC+CV Waterproof 40W LED Driver Power Supply with 24VDC Single Output
Specifications
| Technical data | Information | ||
|---|---|---|---|
Brand | Mean Well | Commodity | 8504409090 |
Item number | LPF-40-24 | Warranty pack | 60 Months Bring-In |
Series | LPF-40 | RoHS | Compliant |
Description | AC-DC Single output LED driver Mix mode (CV+CC); Output 24Vdc at 1.67A; cable output | Packing quantity | 32 |
Application | LED EN 61347 | Net weight (gram) | 460 |
Technology | AC/DC Constant Current C.C. Constant Voltage C.V. | ||
Power Format | Box Type - Enclosed | ||
Output Power (W) | 40 | ||
Output Voltage (V) | 24 | ||
Output Current (A) | 1.67 | ||
Input Voltage (V) | 90 - 305 Universal Input 110/230V | ||
IP Rating | IP20 IP21 IP30 IP40 IP42 IP50 IP64 IP65 IP66 IP67 | ||
Width (mm) | 42.5 | ||
Height (mm) | 32 | ||
Depth (mm) | 162.5 | ||
Dimming Technology | No Dimming | ||
Datasheet
| SPECIFICATION | |||||||||||||||||
| MODEL | LPF-40-12 | LPF-40-15 | LPF-40-20 | LPF-40-24 | LPF-40-30 | LPF-40-36 | LPF-40-42 | LPF-40-48 | LPF-40-54 | ||||||||
| DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | ||||||||
| CONSTANT CURRENT REGION Note.2 | 7.2 ~12V | 9 ~ 15V | 12 ~ 20V | 14.4 ~ 24V | 18 ~ 30V | 21.6 ~ 36V | 25.2 ~ 42V | 28.8 ~ 48V | 32.4 ~ 54V | ||||||||
| RATED CURRENT | 3.34A | 2.67A | 2A | 1.67A | 1.34A | 1.12A | 0.96A | 0.84A | 0.76A | ||||||||
| RATED POWER | Note.5 | 40.08W | 40.08W | 40W | 40.08W | 40.2W | 40.32W | 40.32W | 40.32W | 41.04W | |||||||
| OUTPUT | RIPPLE & NOISE (max.) Note.3 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |||||||
| VOLTAGE TOLERANCE Note.4 | ±4.0% | ±4.0% | ±4.0% | ±4.0% | ±4.0% | ±4.0% | ±4.0% | ±4.0% | |||||||||
| ±4.0% | |||||||||||||||||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||||||||
| LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||||||||
| SETUP, RISE TIME | Note.6 | 1000ms, 80ms / 115VAC | 500ms, 80ms / 230VAC | ||||||||||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC | 16ms/115VAC | |||||||||||||||
| VOLTAGE RANGE | Note.5 | 90 ~ 305VAC | 127 ~ 431VDC | ||||||||||||||
| (Please refer to "STATIC CHARACTERISTIC" section) | |||||||||||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||||||||
| POWER FACTOR | PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load | ||||||||||||||||
| (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |||||||||||||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) | ||||||||||||||||
| (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | |||||||||||||||||
| INPUT | |||||||||||||||||
| EFFICIENCY (Typ.) | 84% | 85% | 86% | 87% | 88% | 88% | 88.5% | 90% | 90% | ||||||||
| AC CURRENT | 0.6A / 115VAC | 0.3A / 230VAC | 0.25A/277VAC | ||||||||||||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||||||||||||
| MAX. No. of PSUs on 16A | 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC | ||||||||||||||||
| CIRCUIT BREAKER | |||||||||||||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | ||||||||||||||||
| OVER CURRENT | 95 ~ 108% | ||||||||||||||||
| Constant current limiting, recovers automatically after fault condition is removed | |||||||||||||||||
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||||||||
| OVER VOLTAGE | 15 ~ 17V | 17.5 ~ 21V | 23 ~ 27V | 28 ~ 35V | 34 ~ 40V | 41 ~ 49V | 46 ~ 54V | 54 ~ 63V | 59 ~ 66V | ||||||||
| Shut down and latch off o/p voltage, re-power on to recover | |||||||||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||||||||||||||
| WORKING TEMP. | Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||||||||||||||
| MAX. CASE TEMP. | Tcase=+80℃ | ||||||||||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||||||||||
| ENVIRONMENT | STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||||||||||
| SAFETY STANDARDS Note.8 | UL8750, CSA C22.2 No. 250.0-08, ENEC EN61347-1, EN61347-2-13 independent, EN62384,EAC TP TC 004, IP67, | ||||||||||||||||
| J61347-1, J61347-2-13,GB19510.1,GB19510.14 approved ; design refer to UL60950-1, TUV EN60950-1 | |||||||||||||||||
| SAFETY & | WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||||||||
| EMC | |||||||||||||||||
| EMC EMISSION Note.8 | Compliance to EN55015,EN61000-3-2 Class C (@load≧60%) ; EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 | ||||||||||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020 | ||||||||||||||||
| MTBF | 438.8Khrs min. | MIL-HDBK-217F (25℃) | |||||||||||||||
| OTHERS | DIMENSION | 162.5*43*32mm (L*W*H) | |||||||||||||||
| PACKING | 0.44Kg; 32pcs/15.08Kg/0.93CUFT | | |||||||||||||||
