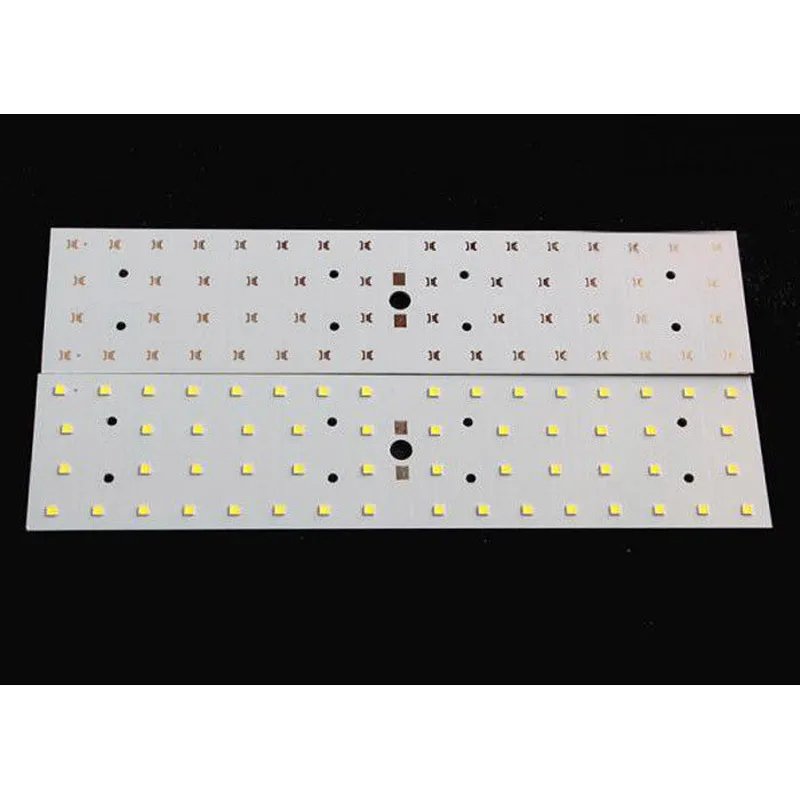

3030 LED PCB Module Osram Chips Led Smd Module For 50W Led Street Light
- This SKD 56W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
- It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- Optic lenses are available for projects that need smaller beam angles, like 155x80°, 145x75°, 60x90°, 90° , 30x70° , 30° , 60° etc.
Product Name | SMD 3030 PCB LED Modules Osram Chips for 50W Led Street Light |
Model No | SOE-SL56WPCB |
Parts | 56W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available |
Lens Material | PC Optical |
MOQ | 1pcs |
Lens size | 256.6x78.6x7.1mm |

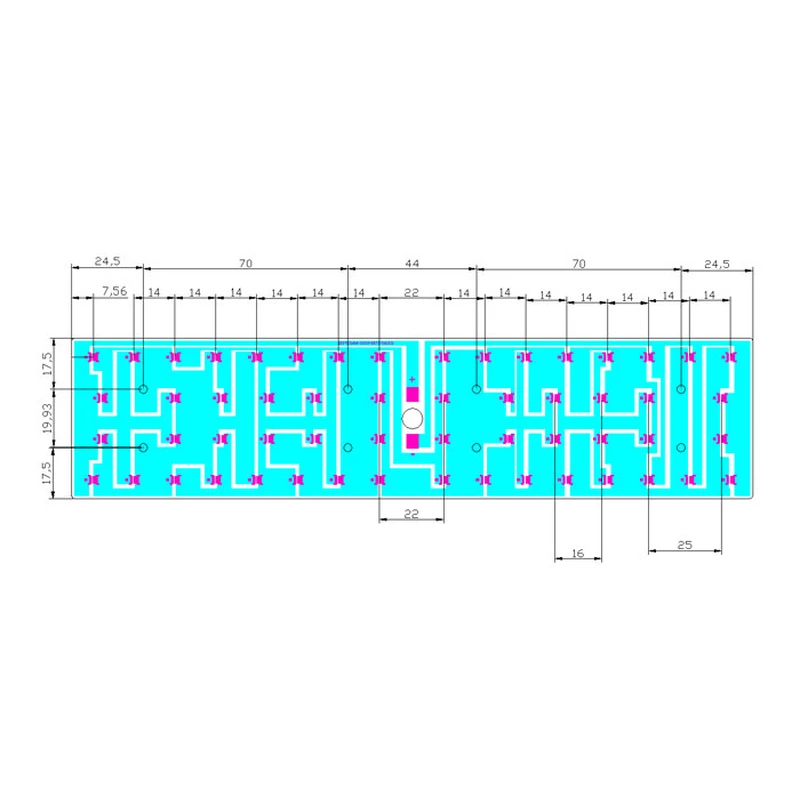

PCB Size | 233x55x1.5mm |
Driver enclosure | plastic or aluminum case for choice |
PCB Circuit | 7 series 8 parallel or Customize |
LED details | 6-6.8V , 150mA , 120-130lm/w |
CCT | 2900-3200K 4000-4500K 5000-5500K 6000-6500K |
Certificate | ROHS, SGS,CE |
Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
Main market | Europe , South America , North America , Asia |
Product name | 50W MCPCB |
PCB color | white, black or others |
Voltage | 42V |
Current | 1200mA |
Circuit | 7 series 8 Parallels |
