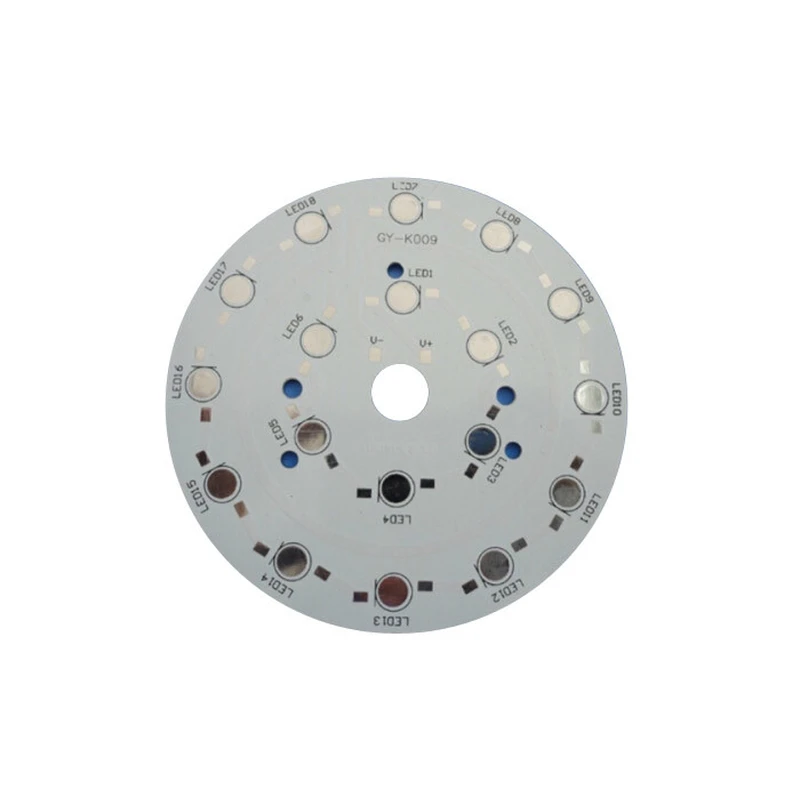

18W LED PCB Panel Aluminum Heat Sink Base Plate 100mm Diameter High Power Panel for LED Ceiling Lamp

Specification:
Item Type: Lamp Base
Base Material: Aluminum
Power: 18W
Diameter: 100mm

Feature:
Convenient, low thermal resistance welding
Rapid heat transfer

Feature:
No need driver, easy to use
Suitable for DIY LED bulb, candle lamp, down lamp, ceiling lamp, etc .


We have professional sales team and hardware engineers which are very experienced in LED PCB industry, will help us to understand your need and requirements to draw the circuits.



The Applications of LED PCB Circuit Board



The Led benefits make LED printed circuit boards very desirable for a number of applications and industries. Some of the more prominent applications of Aluminum LED PCB Circuit Board include:



Telecom LED PCB: Telecommunications equipments often uses LED indicators and displays, and because of the surrounding machinery, the improved heat transfer ability of Aluminum LED PCB is extremely useful in this application. Improved durability and decreased weight also make these aluminum PCB LED quite desirable within telecommunications applications. Not only that, but Led Metal core PCBs are commonly used in other components of telecommunications equipment as well, including filtering appliances and high-frequency amplifiers.



Automotive LED PCB: You can also find Led Aluminum PCB Board in cars on indicators, in headlights and brake lights, and other applications. The durability, longevity and relatively low price makes these Led aluminum PCB ideal within the automotive industry. Their applications don’t end at LED either – aluminum PCBs are commonly used within electronic regulators and power controllers.



Computer Led PCB: LED displays and indicators are becoming increasingly common within computer applications, and the heat sensitivity of computer machinery makes Led PCB the ideal solution. In addition to LED applications, computer parts like power devices, floppy drives and CPU boards are commonly use aluminum LED PCBs because of their ability to handle and transfer heat.



Medical LED PCB: Lighting tools used in surgeries and medical examinations commonly use high-powered LED lights, and these LED lights often use aluminum PCBs. This is primarily due to the durability and heat transfer capabilities of aluminum PCB LEDs — this ensures medical equipment is functioning properly regardless of the number of patients cycling through a medical office. In addition to lighting tools, medical scanning technology often uses aluminum PCBs as well.



Led PCB Products : Led Tube , Outdoor LED advertising screen, LED Lamp, Waterproof Led , 1.5m Led and so on .



Led PCB Materials We support :



Fr4 PCB Raw Material

CEM-1 PCB Raw Material

CEM-3 PCB Raw Material

Aluminum PCB Material

Copper Core PCB Material

Ceramic Base PCB Material





PCB Technical Specification



Order Quantity1-500,000
Layer1,2,4,6,upto 18 layer
MaterialFR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc
PCB typeRigid,flexible,rigid-flexible
ShapeAny shape: Rectangular,round,slots,cutouts,complex,irregular
Max PCB dimensions20inch*20inch or 500mm*500mm
Thickness0.2~4.0mm, Flex 0.01~0.25''
Thickness tolerance± 10%
Copper thickness0.5-4 oz
Copper thickness tolerance± 0.25oz
Surface finishHASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc
Solder maskGreen, red,white,yellow,blue,black, Double-sided
Silk screenWhite,yellow,black,or negative, Double-sided or single-sided
Silk screen min line width0.006'' or 0.15mm
Min drill hole diameter0.01'',0.25mm.or 10 mil
Min trace/gap0.075mm or 3mil
PCB cuttingShear,V-score,tab-routed





Turnkey PCBA Capabilities



Turnkey PCBAPCB+components sourcing+assembly+package
Assembly detailsSMT and Thru-hole, ISO lines
Lead TimePrototype: 15 work days. Mass order: 20~25 work days
Testing on productsFlying Probe Test, X-ray Inspection, AOI Test, functional test
QuantityMin quantity: 1pcs. Prototype, small order, mass order, all OK
Files we needPCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB panel SizeMin size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder TypeWater Soluble Solder Paste, RoHS lead free
Components detailsPassive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component packageCut Tape,Tube,Reels,Loose Parts
PCBA
process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
