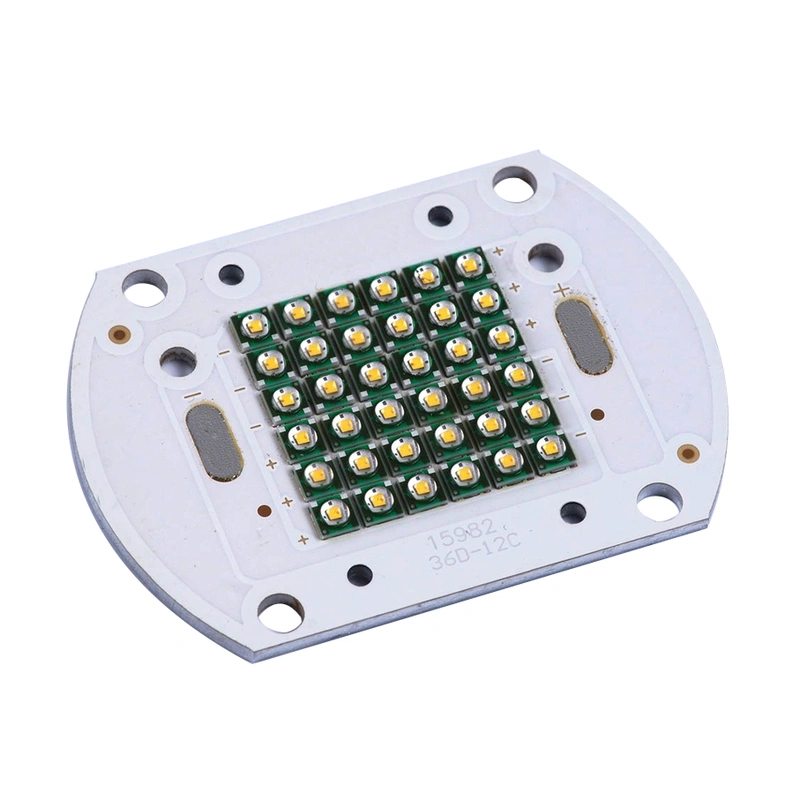

40*56mm Aluminum PCB base with 3535 SMD 36led for 50W-100W led flood lighting
Product Description
| Characteristics | Unit | Min | Typical | Max |
| Dimension L*W | mm | 56*40 | ||
| Diameter of Luminous Area Φ | mm | 25*25 | ||
| Beam Angle θ | deg. | 120 | ||
| Color Temperature CCT | k | 2900 | 6500 | |
| Luminous Efficacy η | lm/w | 90 | 150 | |
| CRI | Ra | 60 | 70 | 80 |
| Power Dissipation PD | W | 30/50/80/100 | ||
| Operating Temperature Top | ℃ | -40 | 65 | |
| Storage Temperature Tst | ℃ | -40 | 85 | |
| Testing Point Tc | ℃ | 65 | ||
| Junction Temperature Tj | ℃ | 115 | ||
| Reverse Current(Vr=5V) Ir | mA | 1 | ||
| ESD(HBM) | V | 2000 | ||
| Reflow Soldering(Lead-Free) HST | ℃ | 360 |
Products Features :
1) High quality raw materials (Bridgelux/Epistar chip, Intematix phosphor, Ticor silver epoxy)
2) Excellent color unity (two times of color seperation process)
3) Brightness decay can be as low as 3%. (0% brightness decay for the first 3,000 hrs)
4) Equipped with 16 automatic production lines.( Production capacity: 10KK high power led/month, 30kk smd led/month.)
5) Competitive factory price with superior quality( strictly tested)
6) Top 50 LED Manufacturer in China
LED Material Review:
Chip: USA Bridgelux Chip/Epistar Chip 45mil ( GOt Letter of Authorization from Bridgelux and Epistar.)
Gold Wire: 1.2 mil 99.99% purity.
Copper Base: Red Copper Base (400W/mK).
Phosphor: Intematix (Got patent on Phosphor Recipe.)
Wire Soldering: BBOS Technique.
Certificates Granted: CE, RoHS, SAA, LM-80 (Energy Star), ISO9001, more than 30 Patents in LED Design and Manufacturing Process, Certificate of Authorization from Bridgelux/Epistar.
Testing Equipments: Sphere Testing and Calibration Machine (Zvision, Everfine), UV Aging Test Machine, Temperature Shock Testing and so on. (11 reliability tests).
Product Lines:High Power LED (1-500W, 360-850nm, CRI up to 95, up to 160LM/W) RGB, R, G, B, Y
LED COB/Module (1-500W, CRI up to 90, up to 120-130LM/W)
SMD LED (3528, 2835, 5050, 3030, 5730, 0.06-1W, CRI up to 90, up to 120-130LM/W)
LED Driver, LED Lamp Shell Fittings. (Bulb Light, Spot Light, Flood Light, Down Light)
