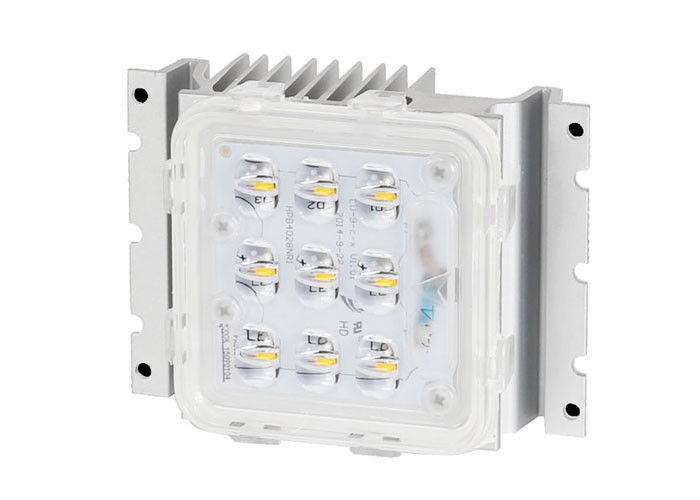

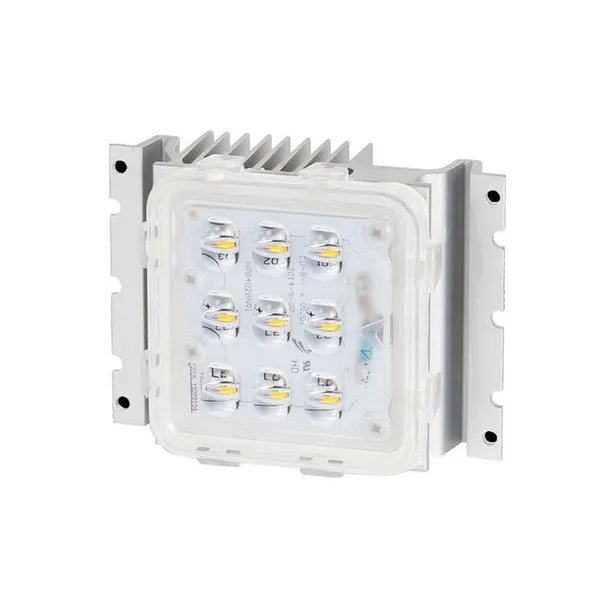

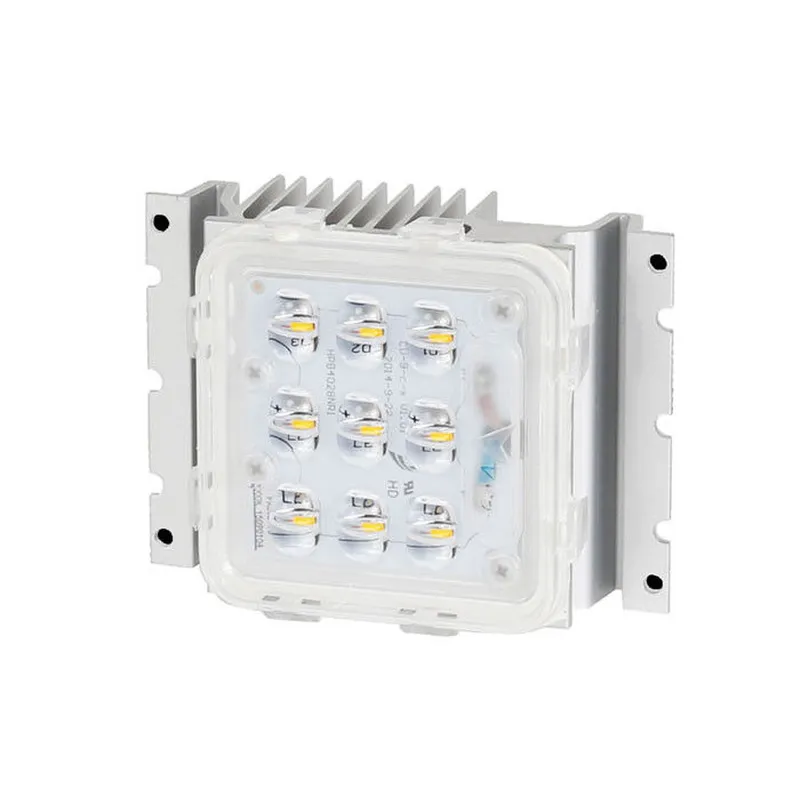

20W 30W IP68 LED Street Light Module with 100-150lm/W High Lumen
20w led street light module can be assembled onto led street light, high bay lamp, flood light, tunnel light.
20W LED Street Light Engine Module, High Lumen Efficiency 100- 150lm/W, IP68 Protection. Randomly Assemble Different Power Street Lamps, Flood Lights. Made of Extruded Aluminum, High Purity Lens.
Specification:
- Body Material: Extruded aluminum.
- Brands of Light Source: Lumileds, Cree, Osram, SAMSUNG.
- Chips Quantity: 9 units in series.
- Driving Current: 700/ 860/ 1050 mA.
- Input Voltage Frequency Range: DC24-31V.
- Power : 20W/ 25W/ 30W.
- Luminous Efficacy: 100lm/W- 150lm/W.
- CCT: 3000K, 4000K, 5000K, 5700K.
- CRI: 70.

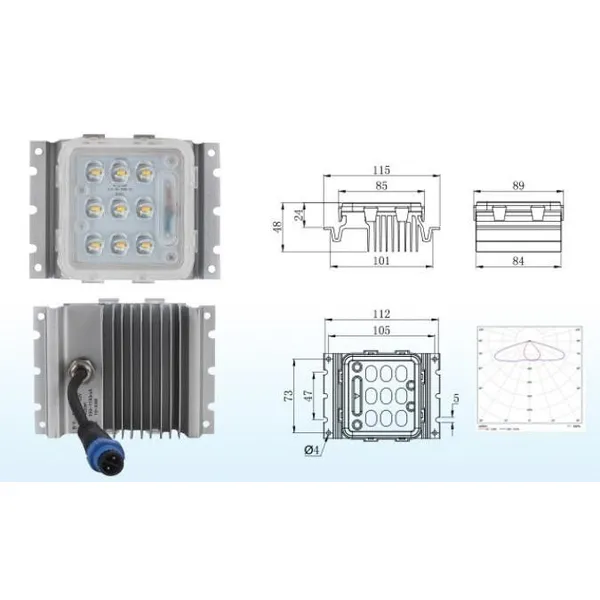

- Module Size: 115mm*89mm*48mm.
- IP Rating: IP68.
- LED Life Span: >50,000 hours.
- Net Weight: 0.36kg.
- 5-year limited warranty is standard on 20w led street light module.
Features:
- High brightness Lumileds Luxeon TX LEDs;
- IP68 Rating, the highest led light module level in the world;
- Super long lifetime (lumen maintenance);
- Full range of power selections;
- Multiple lighting distributions available.
