50W 220V DOB AC LED PCB Module For LED Streetlights

50w led module,led module for street lights,220v led pcb module
info@ledpcba.com

Description

50w led module,led module for street lights,220v led pcb module


Model No.

LZ2020071604

Luminous Efficiency

110 lm/W

Input Voltage

AC 220-240V   50Hz

Luminous Flux

5958lm

Input Current

0.25A

Insulation Class

ACW>2KV

Power Dissipation

50W

Power Factor

0.97

LED

EMC 3030 LED

THD

/

Color Temperature

5700K

Anti-surge Class

2KV

Color Rendering Index

Ra 80

Thermal Conductivity

1.5W/m.K

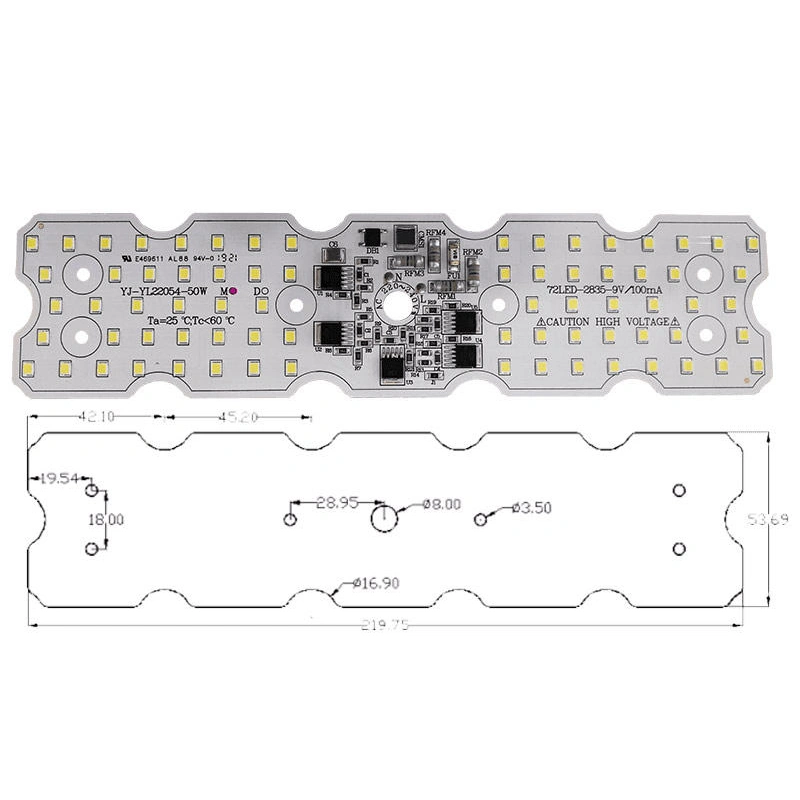

Board Size*Thickness

220mm*54mm*2.0mm

Operating Temperature

-20~45°C


Advantages


● PF: 0.97

● CRI: >Ra80

● Luminous efficiency: 110 lm/W

● Anti-surge class: 2kV

● Branded EMC 3030 LEDs. No EMI.

● 2-stage power cascaded rising design.

● 740V High voltage MOS to increase anti-surge level.

● Linear constant current IC control.

● No concern in ultraviolet ray or electromagnetic radiation.

● CE EMC, CE LVD, RoHS, PSE, C-Tick certificate

● We support our customers to pass qualification test such as energy Star, SAA,REACH, T-24, and UL certification and so on.


FEATURES  OF  DOB CONSTANT  CURRENT LIGHTING  SOLUTION

● Over-voltage & over-current protection. With five-channel constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.

● Over-temperature protection design. When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.

● Customized design and manufacturing is acceptable.


Advantage of DOB constant current solutions in LED lighting field



● The DOB AC LED modules are cost saving solutions to high power LED lights.

● Neat outer appearance and easy installation.

● The lights will be light weighted, saving transportation cost.

● The light will be maintenance-free within the warranty period.

● The smaller sized DOB boards make the luminaires in smaller dimensions with physical drivers removed.

● Customized designs in power factor, color temperature, CRI(Ra), luminous efficiency and other detailed applications.

● Differential designs assure customers to keep agility in developing new lights with their own brands in the light appearance and its marketing pricing strategy.
