| Product Name: | 64 LED Square Lighting 3030 SMD 50W Module 60 / 90 Degree 130x130mm | Model No.: | SUN-J64-3030-90 |
|---|---|---|---|
| Beam Angle: | 90 Degree | LENS Size: | 130x130x6.9mm |
| Material: | Optical Grade PC | LED CHIP: | 3030 SMD LED, 140-150lm/w@ 150mA,6v |
| Tranmittance: | 91% | Application: | High Bay Light/Street Light |
| PCB Size: | 115.59x115.59x1.5mm | Circuit For PCB Board: |

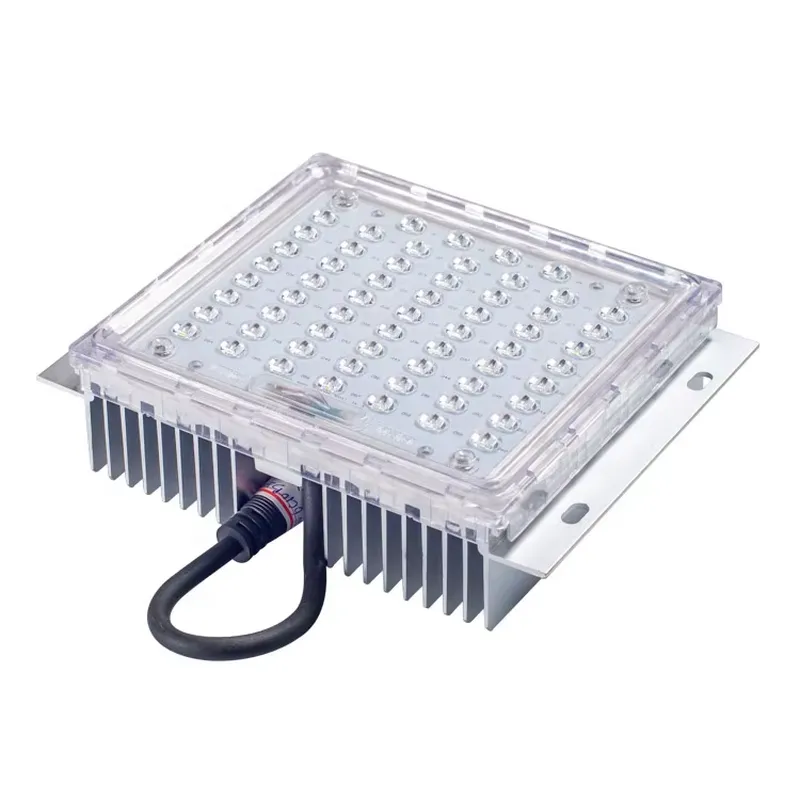

64 LED Square lighting 3030 SMD 50W Module 60 / 90 degree 130x130mm
Quick Detail:
Model No:SUN-J64-3030-90
Material: PC
Beam Angle : 90 degree
Lens size:130x130mm
PCB size:115.59x115.59x1.5mm
Circuit: 8 series 8 parallel
Match LED: 3030SMD LED
Small footprint, high light output
Features :
- This SKD 64 LED Array lens with PCB Module is best design power lamps like 50-55w/100-110w and so on .
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need smaller beam angles, like 60x60 degree,90x90degree, 80x150 degree, 60x140 degree and so on.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
1, Product Name | 64 LED Square lighting 3030 SMD 50W Module 60 degree / 90 degree 130x130mm |
2, Model No | SUN-J64-3030-90 |
3, Main parts | 64 Array lens , silicon gasket+PCB+LED |
4, Lens Material | PC |
5, Lens size | 130x130mm |
6, Transmittance | 91% |
7,LEDS | 3030 SMD LED, 140-150lm@ 150mA,6v |
8, Sample | 3-4 work day |
9, Delivery | 5-7 work days for 10000 sets |
10, Angle | 90 degree type5 |
11, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
12, Main market | Europe, South America,North America, Asia |
Shipping and delivery time:
DHL/UPS/TNT/FEDEX | 4-5 working days |
EMS | 10-15 working days |
HK Post Air Mail Register | 15-18 working days |
Trade Terms | FOB|EXW|CIF|CFR |
Sample availability | YES |
Delivery time | 3-4 working days |
