Hexagonal LED Light PCB Design Layout for Table Camera Lighting

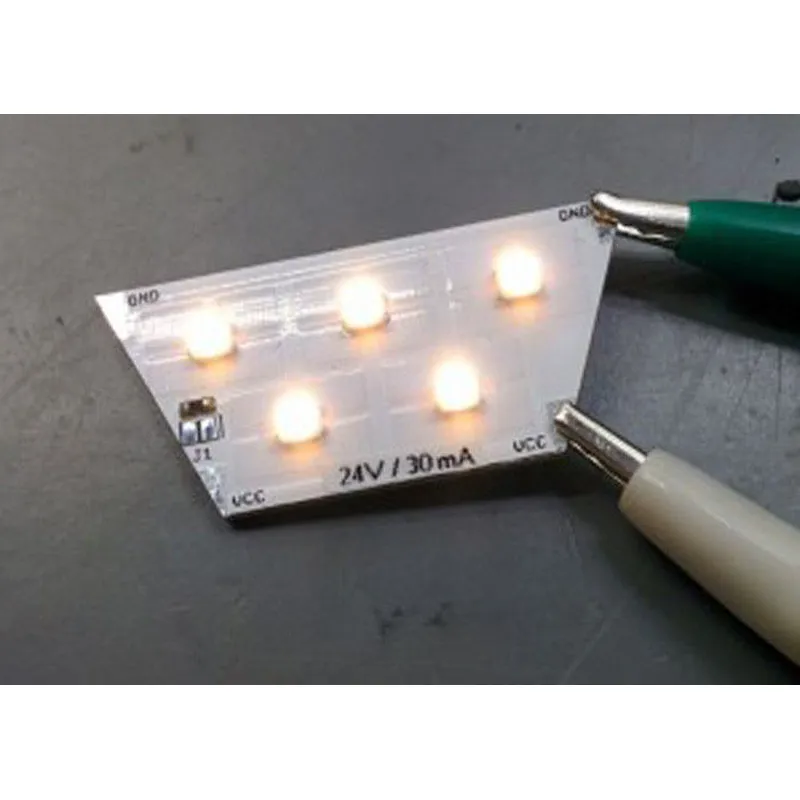

LZ had some PCBs manufactured for the hexagonal LED light of my pick-and-place machine’s table camera. Six individual segment boards are connected by solder joints on the corners.

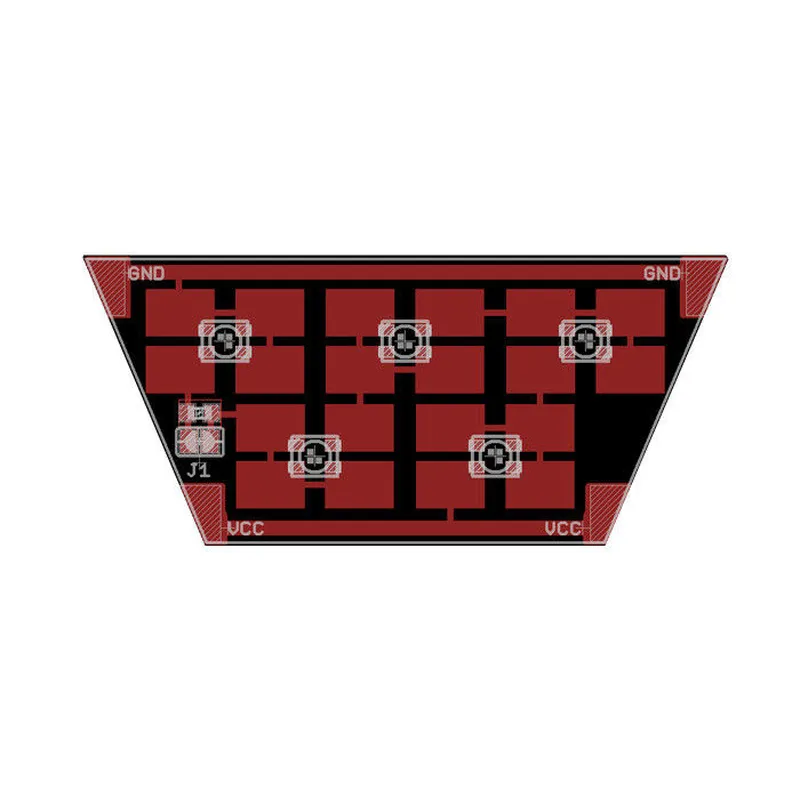

The boards have pads for current limiting resistors (R1) so you can run the array directly from constant voltage supply. If you prefer to use a constant current source, just bridge the solder jumper (J1).
Resistor values, voltage and current obviously depend on the LED you choose.
