| Product Kits: | Led Lens With Silicon Gasket ,pcb Welding 3030 Leds | Lens Size: | 236*70mm |
|---|
| Lens Angle: | 130 Degree | PCB Size: | 217.7x43.5x1.5mm |
|---|
| PCB Circuit: | 8 Series 8 Parallel | Match Leds: | 3030 Led |
|---|

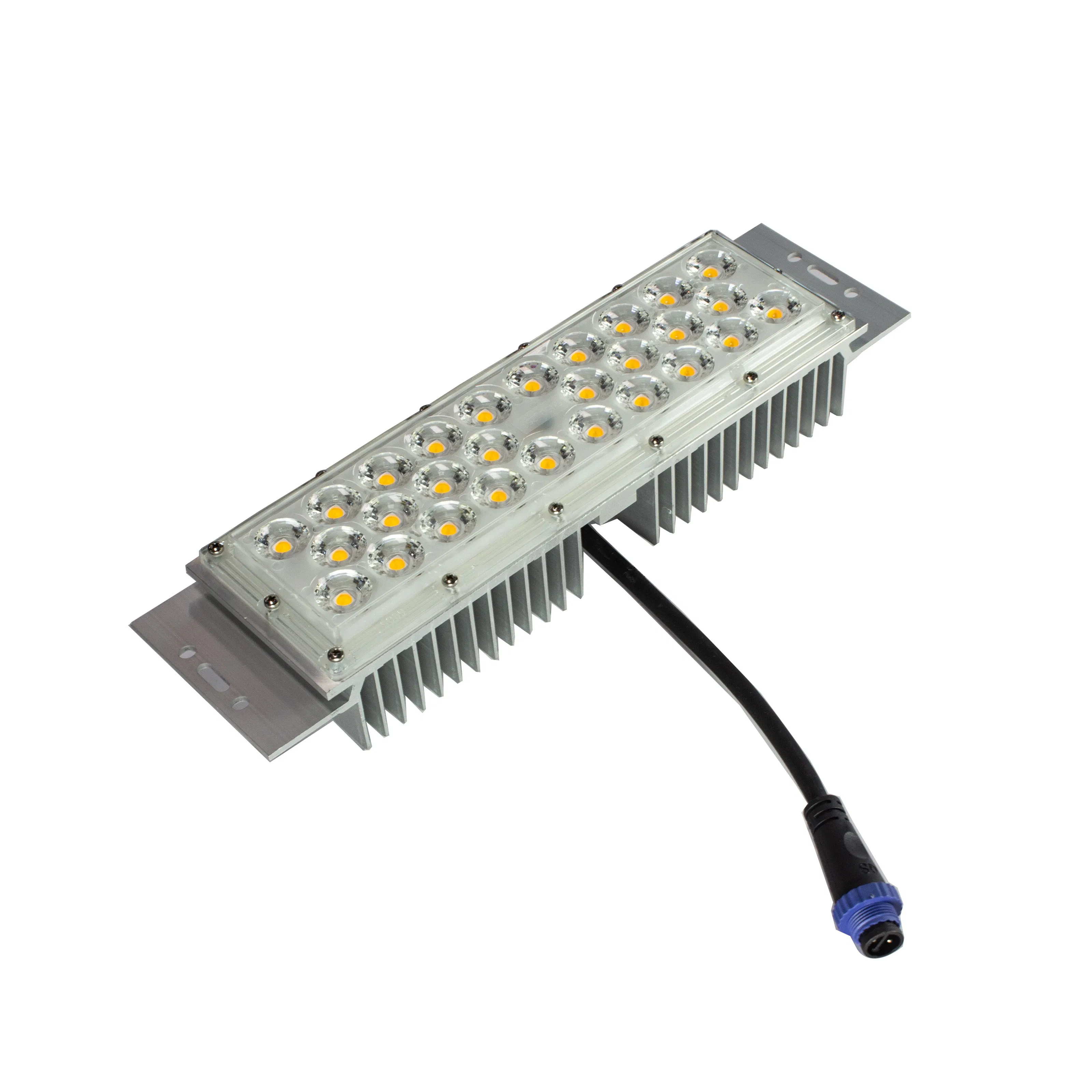

50W Linear Led Light Module For Modular Low-bay Luminaire 100W/150W/200W
1, The module uses high-quality 3030 leds and we provide 2 years warranty .
2, The whole module can support 40watt-50watt ,The luminous efficiency can reach 130-140lm/watt ,
3, The size of this module is 236*70mm ,It's more common and can be used to replace old products .
4, 130 degree large angle .
Quick Details :
| Model No.: | SUN-L64W-130 |
| Angle: | 130 degree |
| Lens Size: | 236x70mm |
| PCB Size: | 217.7x43.5x1.5mm |
| Lens Material: | Optical grade PC |
| Circuit: | 8 series 8 parallel |
| LED: | 64 pcs 3030 SMD LED |
Technical Parameters :
| Model No. | SUN-L64W-130 |
| Power(W) | 40 | 50 |
| Voltage(Vf/V) | 47.65 | 48.72 |
| Current(If/mA) | 898.2 | 1098.1 |
| Color Temp Tc(K) | 4000 | 4000 |
| Efficiency (lm/W) | Without lens | 160.78 | 153.79 |
| with lens | 143.27 | 135.78 |
| Luminous Flux (φv/lm) | without lens | 6881 | 8228 |
| with lens | 6125 | 7322 |
| Color Index(Ra) | ＞70 | ＞70 |
| Lens beam angle | 130 degree |
| Wick | 64 pcs 3030 leds |
| Protection level | IP66 |
| Working temperature(℃) | -30-50 |
| storage temperature(℃) | -30-65 |
| Server Life(H) | 50000
|
