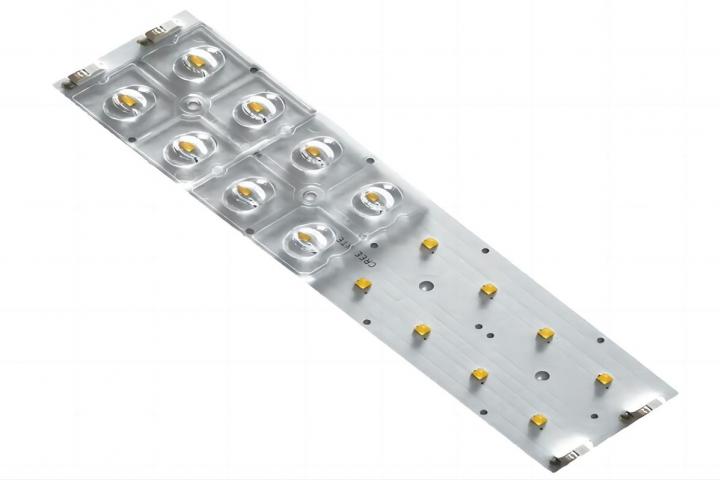

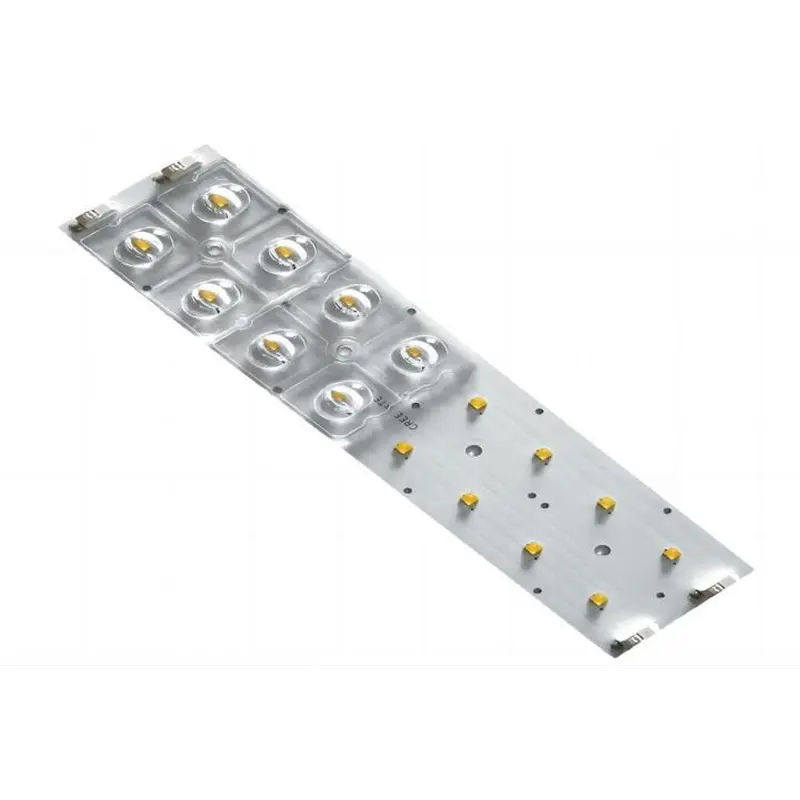

| Product Name: | 150-160lm/w 50W 80 IN 1 3030SMD Tunnel Lighting Horizontal Module | Model No.: | SUN-SL80-3030-60x90 |
|---|---|---|---|
| Beam Angle: | 60x90 Degree | LENS Size: | 236x70mm |
| Material: | Optical Grade PC | LED CHIP: | 3030 SMD LED , 150mA, 6V |
| Tranmittance: | 91% | Application: | Street Lamps, Projecting Lights, Tunnel Lights, Square Lighting, Road Light, High Bay Light |
| PCB Size: | L219.8*W53.8*T1.5mm | Circuit For PCB Board: |
Quick Detail:
Model No:SUN-SL80W-3030-60x90
Material: PC
Beam Angle : 60x90 Degree
Lens size:236x70mm
PCB size:L219.8*W53.8*T1.5mm
Circuit: 8 series 10 parallel
Match LED: 3030 SMD LED
Small footprint, high light output
Features :
- This SKD 80 LED Array lens with PCB Module is best choice to design power lamps like 40w 50w 60w and so on .
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need smaller beam angles, like 30/60/90/60x90/70x145 degree.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
1, Product Name | 150-160lm/w 50W 80 IN 1 3030SMD Tunnel lighting Horizontal module |
2, Model No | SUN-SL80W-3030-60x90 |
3, Main parts | 80 Array lens , silicon gasket+PCB+ 3030 SMD LED |
4, Lens Material | PC |
5, Lens size | 236x70MM |
6, Transmittance | 91% |
7,LEDS | Orginal package 3030SMD LED 150mA,6v |
8, Sample | 3-4 work day |
9, Delivery | 5-7 work days for 10000 sets |
10, Angle | 60x90 Degree |
11, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
12, Main market | Europe, South America,North America, Asia |
