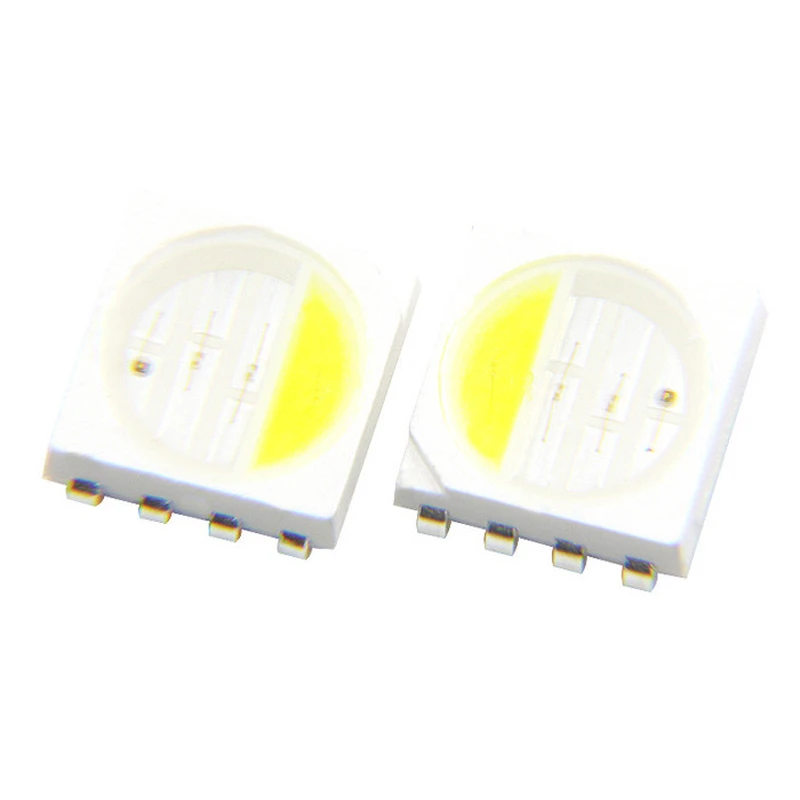

0.2W 0.5W 3528 RGBW SMD RGB LED Chip for LED Tube Light or Rigid LED PCB
Super brightness CCT 270000-6500K led chip
| Package Type | surface mounted |
| Max. Forward Voltage | 2V/3V/6V/9V |
| Max. Reverse Voltage | 5V/10V |
| Max. Forward Current | 20mA/30mA/60mA/150mA/300mA |
| Emitting Color | WW/NW/CW |
| Power | 0.06W/0.2W/0.3W/0.5W/1W |
| Size | 2835/3014/3030/3528/4014/5050/5630/5730 |
2. Features:
1) Silvering of bracket ≥100u, the reflector surface is clean and smooth vith uniform and brightness
2) LM 80 test: small lumen depreciation, 3000hour<1%
3) Consistent: light, wave, angel, color is consistent
4) 120° No Chip color bias
5) Pass the lead-free reflow soldering. it's suit to the automatic SMT
6) Heat& electric seperation design, good heat dissipation, suit to the automatic SMT
7) Heat& electric seperation design, good heat dissipation
