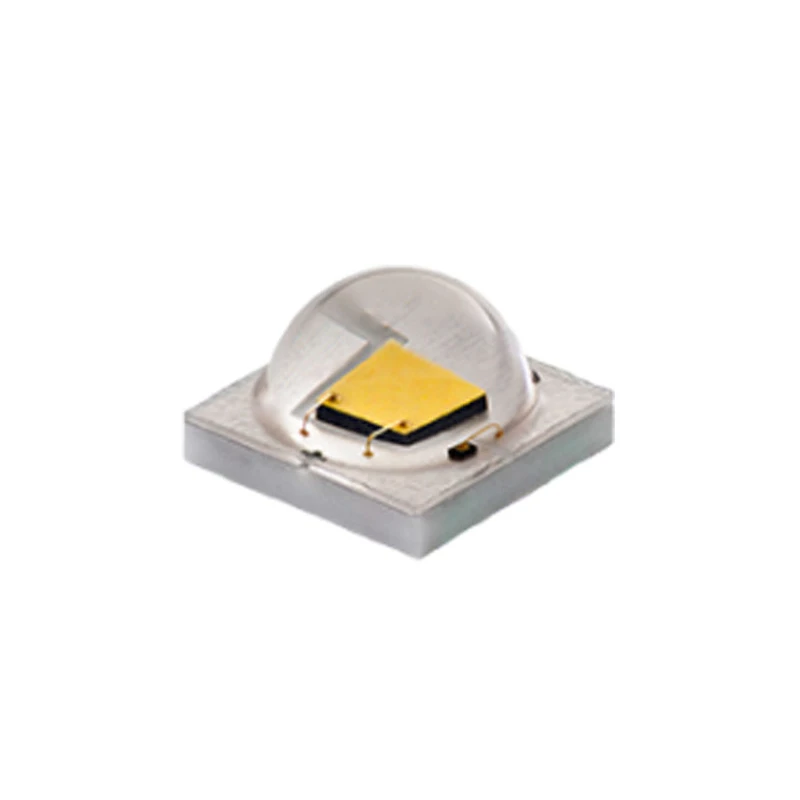

SMD 3535 High Power 3W CREE XLamp XP-E2 Warm White LEDs for Commercial Lighting 2700~3200K

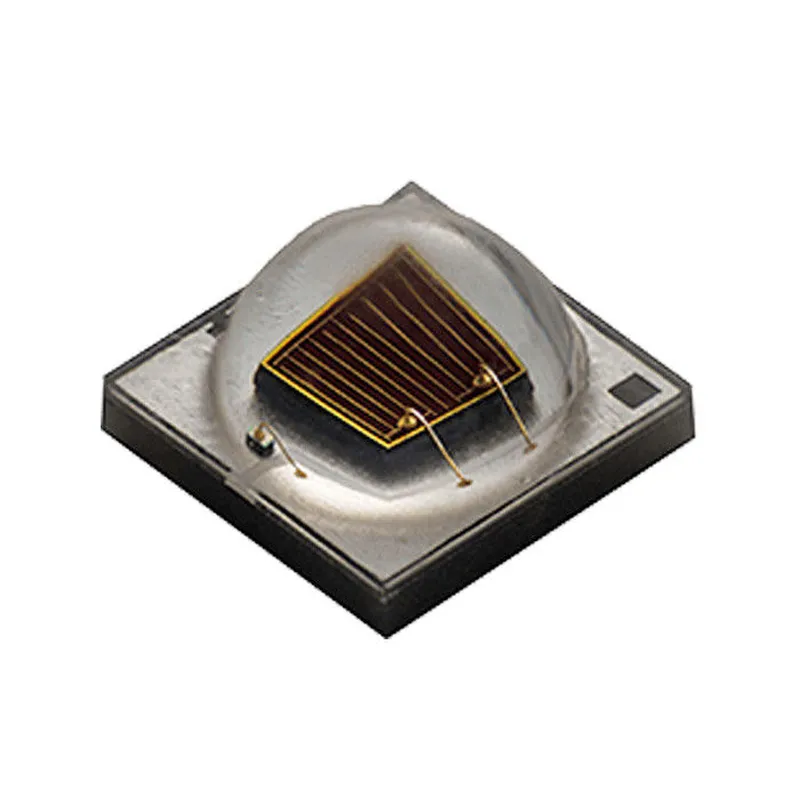

For many years, XLamp XP-E2 LEDs have been the preferred LED choice for lighting manufacturers looking to combine different colors of light together to service specialty lighting applications. The XP-E2 platform offers an unbeatable combination of optical control, excellent light output and the ceramic high-power LED reliability that has made Cree famous. The XP-E2 LED family is now available in Photo Red (660 nm) and Far Red (730 nm) colors to deliver the family’s benefits to the LED horticulture lighting industry, with 68 percent higher performance than the competition
Datasheet download: XLampXPE2.pdf
| Size | 3.45 x 3.45 mm |
| Product Options | White Color |
| Maximum Drive Current (Standard) | 1 A |
| Max Power (W) | 3 W |
| Max Light Output (lm) | 283 LM |
| Maximum Efficacy at Binning Conditions (lm/W) | 137 lm/W |
| Typical Forward Voltage | 2.9 V White @ 350 mA |
| Maximum Reverse Voltage | 5 V |
| Viewing Angle | 110 |
| Maximum Junction Temperature | 150 °C |
| Binning | 85°CANSI |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| ESD Classification | Class 2(HBM per Mil-Std-883D) |
| Reflow Solderable | Yes - JEDEC J-STD-020C-compatible |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |
