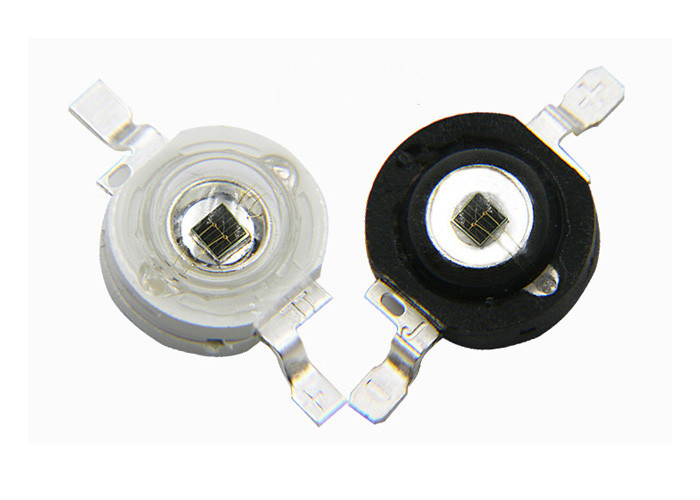

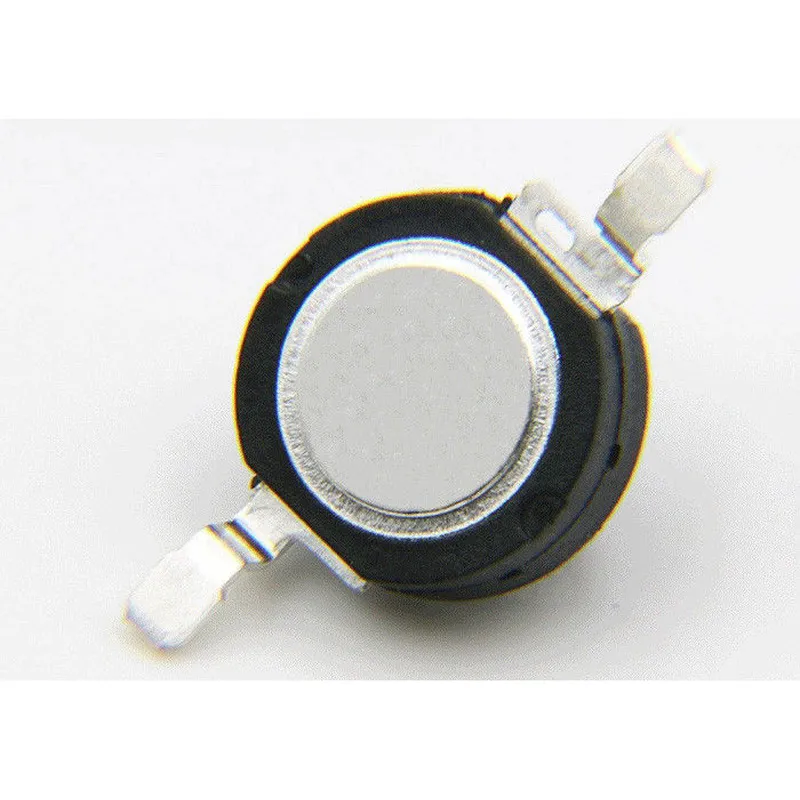

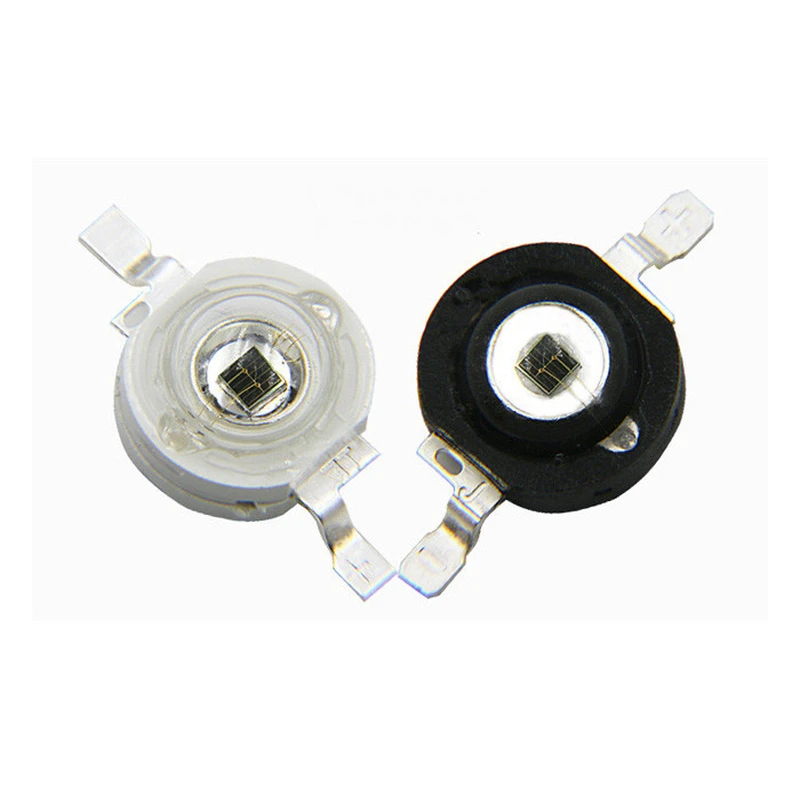

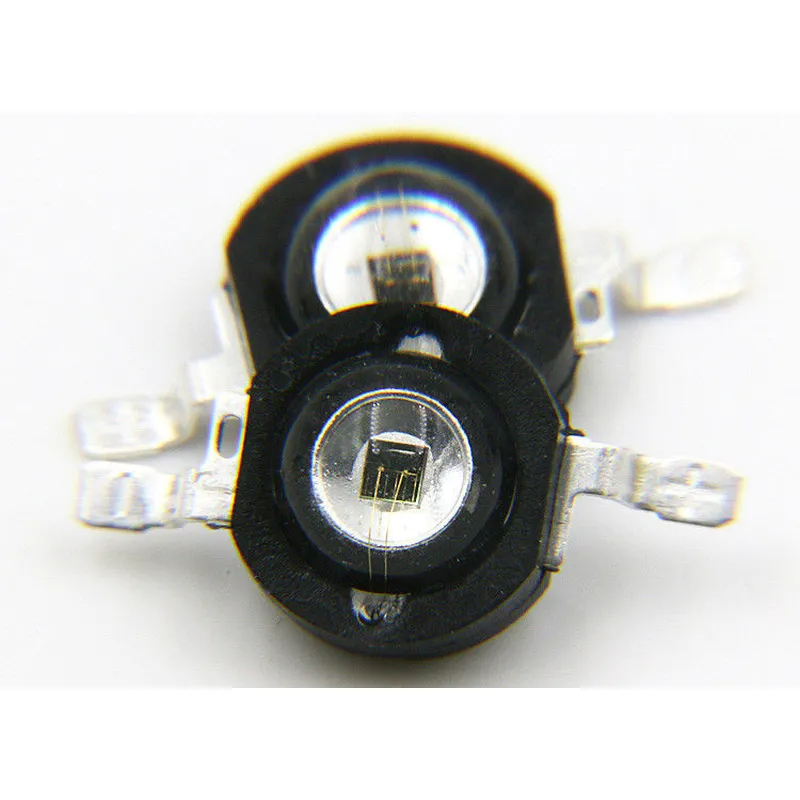

Low Thermal resistance Epistar 2W High Power 850nm IR Infrared SMD LED Diode 1000mA for CCTV
Product Name | SMD 2W 850nm IR LED |
Lumen | na |
Voltage | 1.6-1.9V |
Current | 800-1000mA |
Power | 2W |
Wavelenght (CCT) | 850nm |
Lighting angle | 120° or 60° optional |
ESD | 4000V |
Welding method | eutectic welding |
Thermal resistance | 5℃/W |
2. Features:
1) Silvering of bracket ≥100u, the reflector surface is clean and smooth vith uniform and brightness
2) LM 80 test: small lumen depreciation, 3000hour<1%
3) Consistent: light, wave, angel, color is consistent
4) 120° No Chip color bias
5) Pass the lead-free reflow soldering. it's suit to the automatic SMT
6) Heat& electric seperation design, good heat dissipation, suit to the automatic SMT
7) Heat& electric seperation design, good heat dissipation
