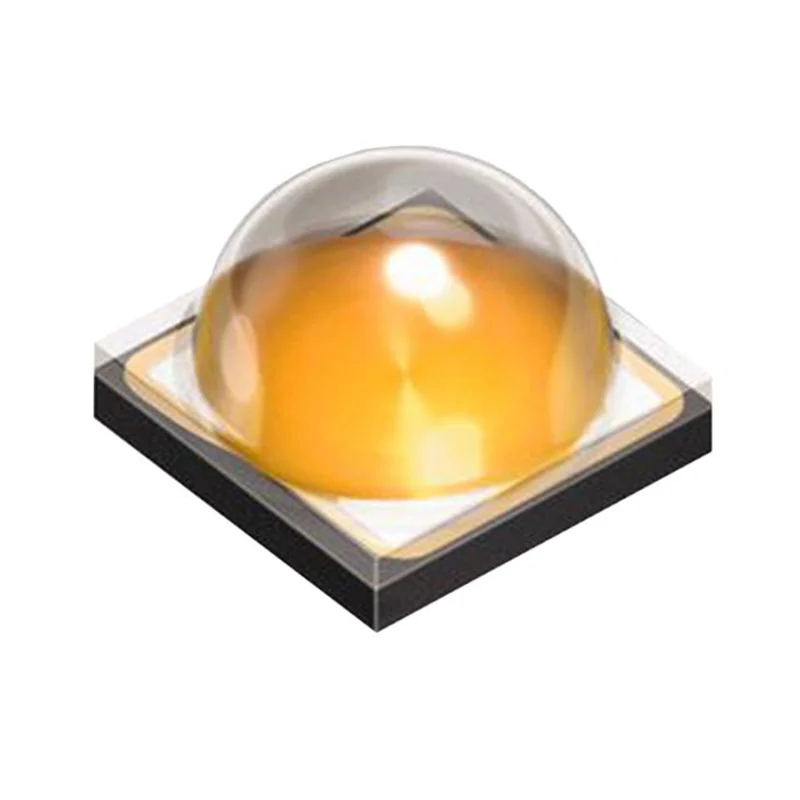

| Detailed Description | LED Lighting OSLON® Square White, Cool 5000K 2.8V 700mA 120° 1212 (3030 Metric) |
|---|
Product Attributes
| TYPE | DESCRIPTION | SELECT ALL |
| Categories | Optoelectronics | |
|---|---|---|
| LED Lighting - White | ||
| Manufacturer | OSRAM Opto Semiconductors Inc. | |
| Series | OSLON® Square | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | White, Cool | |
| CCT (K) | 5000K | |
| Flux @ 85°C, Current - Test | 315lm (300lm ~ 330lm) | |
| Flux @ 25°C, Current - Test | - | |
| Current - Test | 700mA | |
| Voltage - Forward (Vf) (Typ) | 2.8V | |
| Lumens/Watt @ Current - Test | 161 lm/W | |
| CRI (Color Rendering Index) | 70 | |
| Current - Max | 1.8A | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Package / Case | 1212 (3030 Metric) | |
| Supplier Device Package | SMD | |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | |
| Height - Seated (Max) | 0.088" (2.24mm) | |
| Thermal Resistance of Package | 2.1°C/W |
