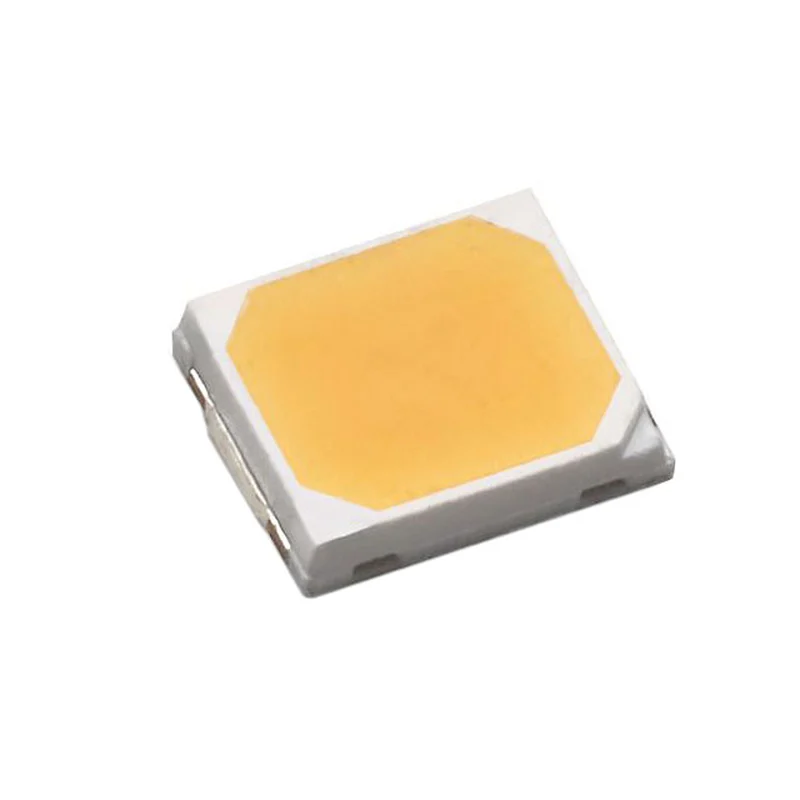

| Detailed Description | LED Lighting LUXEON 2835 White, Neutral 4000K 3V 120mA 120° 1411 (3528 Metric) |
|---|
Product Attributes
| TYPE | DESCRIPTION | SELECT ALL |
| Categories | Optoelectronics | |
|---|---|---|
| LED Lighting - White | ||
| Manufacturer | Lumileds | |
| Series | LUXEON 2835 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | White, Neutral | |
| CCT (K) | 4000K | |
| Flux @ 85°C, Current - Test | - | |
| Flux @ 25°C, Current - Test | 58lm (Typ) | |
| Current - Test | 120mA | |
| Voltage - Forward (Vf) (Typ) | 3V | |
| Lumens/Watt @ Current - Test | 161 lm/W | |
| CRI (Color Rendering Index) | 80 | |
| Current - Max | 240mA | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Package / Case | 1411 (3528 Metric) | |
| Supplier Device Package | 2835 | |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | |
| Height - Seated (Max) | 0.030" (0.75mm) | |
| Thermal Resistance of Package | 21°C/W |
