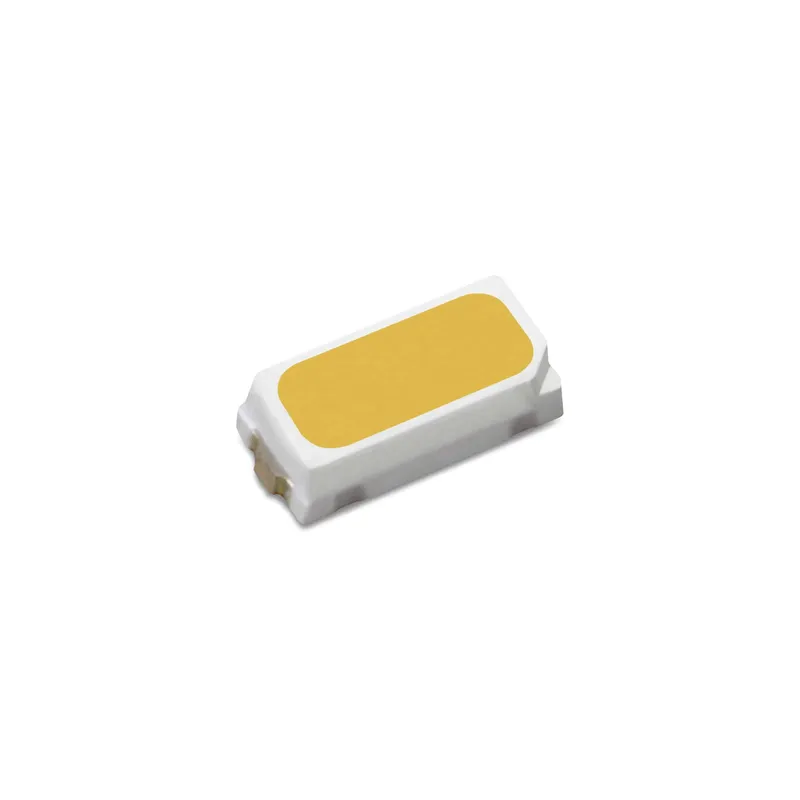

LUXEON 3014
LUXEON 3014 has a compact package size of 3.0mm x 1.4mm x 0.70mm—ideal for achieving uniform light output where space is limited, such as linear applications, tube lighting and signage. LUXEON 3014 is hot-color targeted at a junction temperature of 65°C, ensuring color consistency and meeting ANSI standards at operating conditions.
| 2200K | 95 | 15.5 | 17.2 | 97 | 9.3 | 111 | L130-2295001400001 |
| 2500K | 95 | 18.0 | 19.7 | 111 | 10.6 | 127 | L130-2595001400001 |
| 2700K | 95 | 18.0 | 20.0 | 113 | 10.8 | 129 | L130-2795001400001 |
| 3000K | 95 | 20.0 | 22.0 | 124 | 11.8 | 142 | L130-3095001400001 |
| 3500K | 95 | 20.0 | 22.0 | 124 | 11.8 | 142 | L130-3595001400001 |
| 4000K | 95 | 19.5 | 21.5 | 121 | 11.6 | 139 | L130-4095001400001 |
| 5000K | 95 | 19.5 | 21.5 | 121 | 11.6 | 139 | L130-5095001400001 |
| 5700K | 95 | 19.5 | 21.5 | 121 | 11.6 | 139 | L130-5795001400001 |
