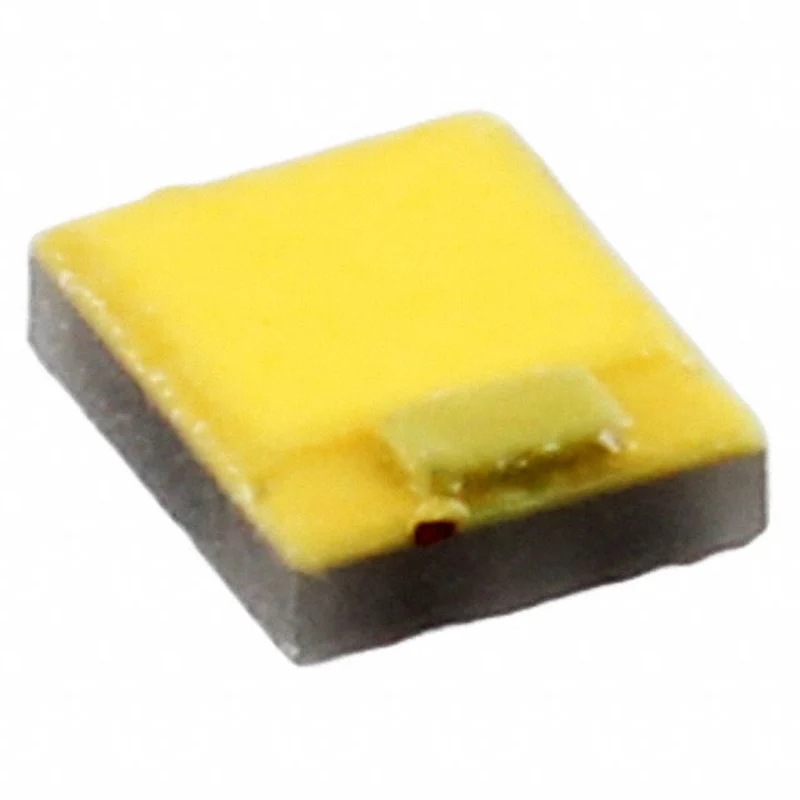

| Detailed Description | LED Lighting LUXEON Z ES White, Warm 2200K 3-Step MacAdam Ellipse 2.8V 700mA 120° 0806 (2016 Metric) |
|---|
Product Attributes
| TYPE | DESCRIPTION | SELECT ALL |
| Categories | Optoelectronics | |
|---|---|---|
| LED Lighting - White | ||
| Manufacturer | Lumileds | |
| Series | LUXEON Z ES | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | White, Warm | |
| CCT (K) | 2200K 3-Step MacAdam Ellipse | |
| Flux @ 85°C, Current - Test | 150lm (Typ) | |
| Flux @ 25°C, Current - Test | - | |
| Current - Test | 700mA | |
| Voltage - Forward (Vf) (Typ) | 2.8V | |
| Lumens/Watt @ Current - Test | 77 lm/W | |
| CRI (Color Rendering Index) | 80 | |
| Current - Max | 1.2A | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Package / Case | 0806 (2016 Metric) | |
| Supplier Device Package | SMD | |
| Size / Dimension | 0.080" L x 0.065" W (2.04mm x 1.64mm) | |
| Height - Seated (Max) | 0.031" (0.78mm) | |
| Thermal Resistance of Package | 3°C/W |
