| Detailed Description | LED Lighting XLamp® MX-3 White, Warm 2700K 3.7V 350mA 120° 2-SMD, Gull Wing Exposed Pad |
|---|
Product Attributes
| TYPE | DESCRIPTION | SELECT ALL |
| Categories | Optoelectronics | |
|---|---|---|
| LED Lighting - White | ||
| Manufacturer | Cree Inc. | |
| Series | XLamp® MX-3 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | White, Warm | |
| CCT (K) | 2700K | |
| Flux @ 85°C, Current - Test | - | |
| Flux @ 25°C, Current - Test | 77lm (74lm ~ 81lm) | |
| Current - Test | 350mA | |
| Voltage - Forward (Vf) (Typ) | 3.7V | |
| Lumens/Watt @ Current - Test | 59 lm/W | |
| CRI (Color Rendering Index) | 80 (Typ) | |
| Current - Max | 500mA | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, Gull Wing Exposed Pad | |
| Supplier Device Package | SMD | |

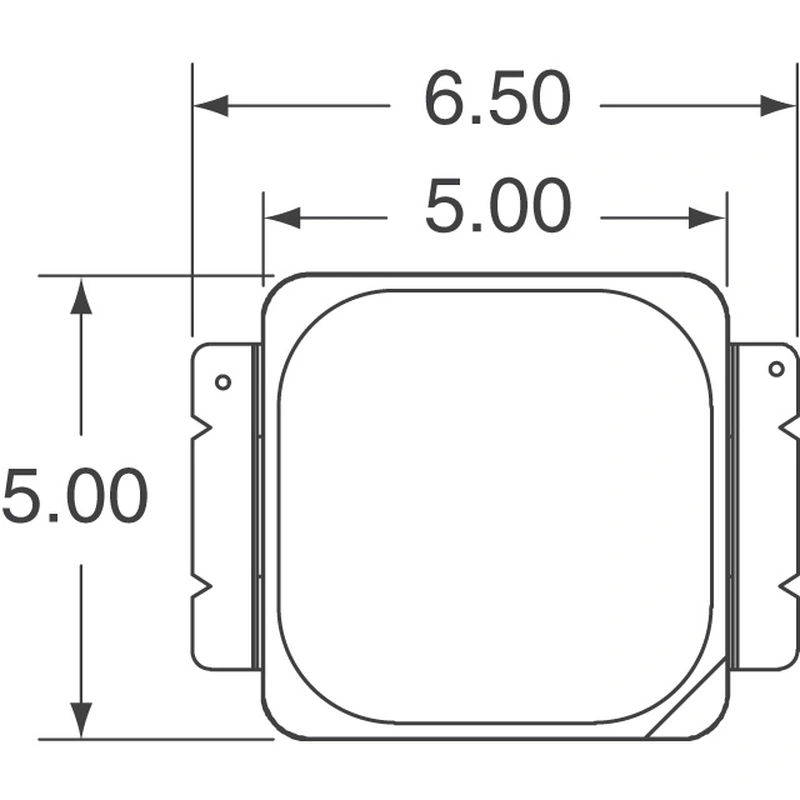

| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | |
| Height - Seated (Max) | 0.058" (1.48mm) | |
| Thermal Resistance of Package | 11°C/W | |
| Base Part Number | MX3AWT |
