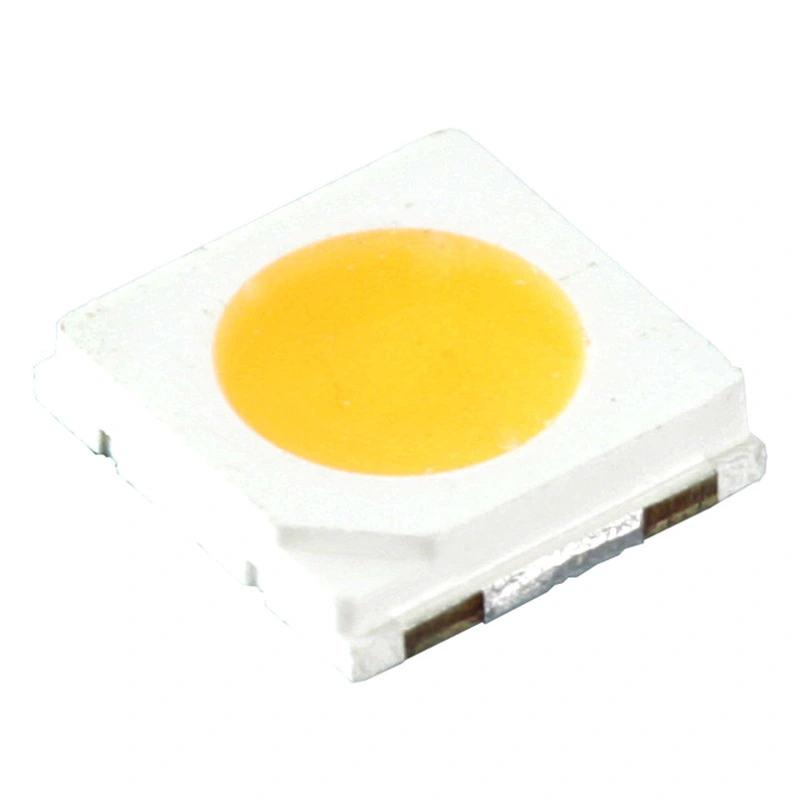

| Detailed Description | LED Lighting LUXEON 3535L White, Cool 6500K 2.9V 100mA 115° 1414 (3535 Metric) |
|---|
Product Attributes
| TYPE | DESCRIPTION | SELECT ALL |
| Categories | Optoelectronics | |
|---|---|---|
| LED Lighting - White | ||
| Manufacturer | Lumileds | |
| Series | LUXEON 3535L | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | White, Cool | |
| CCT (K) | 6500K | |
| Flux @ 85°C, Current - Test | - | |
| Flux @ 25°C, Current - Test | 50lm (Typ) | |
| Current - Test | 100mA | |
| Voltage - Forward (Vf) (Typ) | 2.9V | |
| Lumens/Watt @ Current - Test | 172 lm/W | |
| CRI (Color Rendering Index) | 80 | |
| Current - Max | 300mA | |
| Viewing Angle | 115° | |
| Mounting Type | Surface Mount | |
| Package / Case | 1414 (3535 Metric) | |
| Supplier Device Package | 3535 | |
| Size / Dimension | 0.138" L x 0.134" W (3.50mm x 3.40mm) | |
| Height - Seated (Max) | 0.031" (0.80mm) | |
| Thermal Resistance of Package | 18°C/W |
