Tech Spec
Wattage (Typ)1.0 W @ 350 mA
Wattage (Max)4.7 W @ 1.5 A
Luminous Flux (Typ)177 lm @ 350 mA
Luminous Efficacy (Typ)188 lm/W @ 350 mA

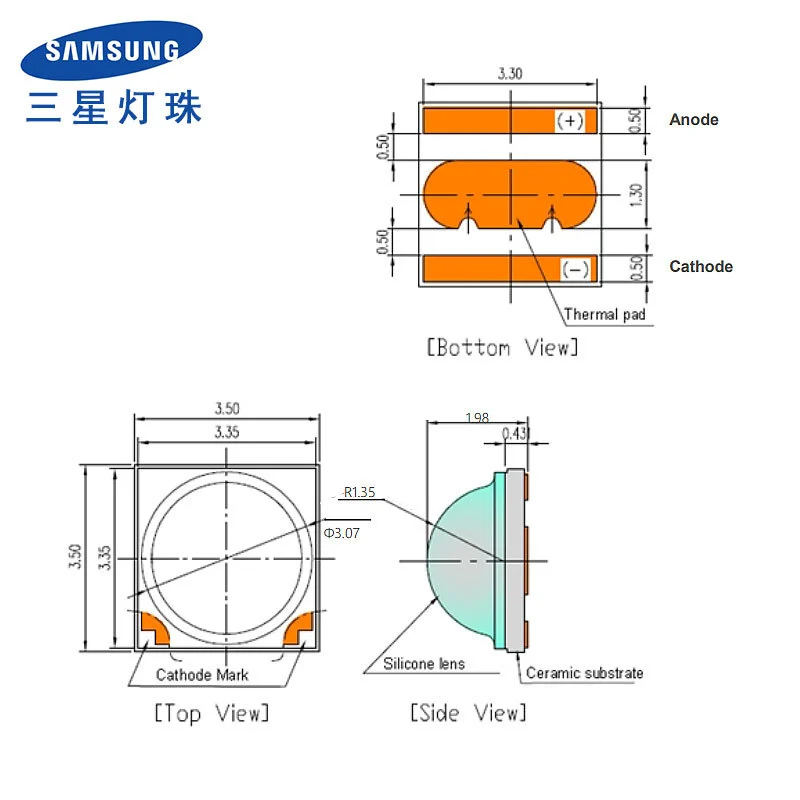

Size3.5 x 3.5 x 1.93 mm

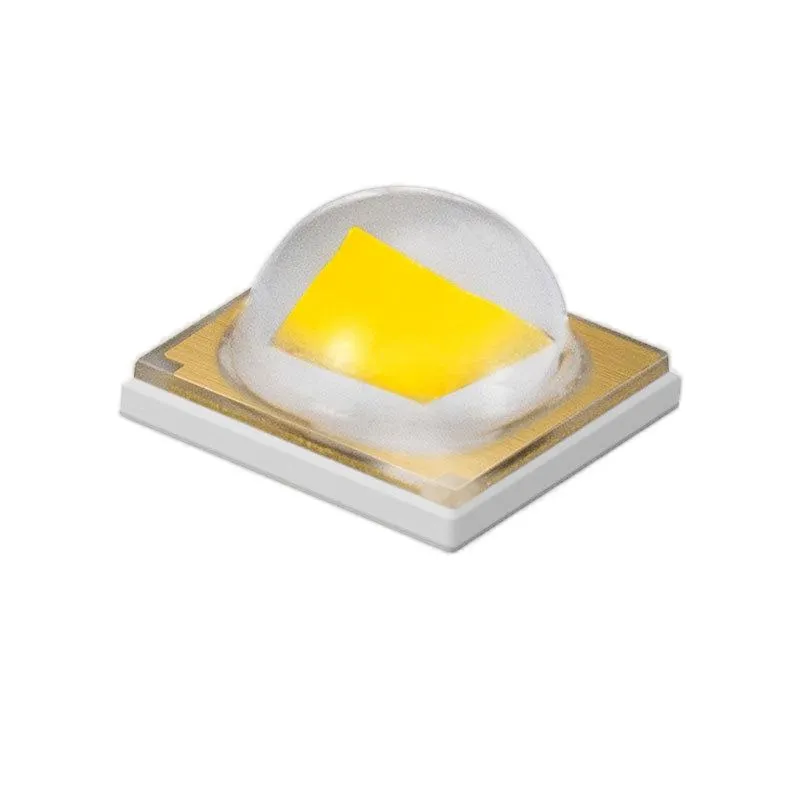

Samsung Electronics has achieved a major upgrade in its industry-leading performance levels for high-power LED packages. The efficacy of Samsung’s LH351B package that features 173lm/W (85℃, 350mA) has improved 8% over last year’s record performance. This new efficacy level extends Samsung’s leadership in high-power LED packages.
The highly reliable LH351B has a high lumen density and has been optimized for outdoor lighting applications such as street lights and security lights, where high-performance lighting is needed over extended periods of time and where efficiency and reliability are crucial. In addition, the compact Samsung light source simplifies the designing of solutions using a second optic lens, making it also suitable for high-density street lighting with complex lighting distribution designs.
With Samsung’s proprietary TZ chip structure and exclusive PSS (Patterned Sapphire Substrate) technology, the LH351B delivers exceptionally high brightness, and offers outstanding operating voltage through an electrode structure that provides even distribution of current. Furthermore, Samsung film phosphors in the LH351B help to achieve outstanding color stability.
Samsung’s LH351B has an expected lifetime of 280,000 hours at 105℃, 1A.
CRI
CCT
PART NUMBER
LUMINOUS FLUX (lm) @ 350 mA
BIN
MIN
MAX
70 2200K SPHWH2L3D30CD4Y☆K3 K3 130 150
2700K SPHWH2L3D30CD4W☆M3
SPHWH2L3D30CD4W☆N3 M3
N3 140
150 160
170
3000K SPHWH2L3D30CD4V☆M3
SPHWH2L3D30CD4V☆N3 M3
N3 140
150 160
170
3500K SPHWH2L3D30CD4U☆M3
SPHWH2L3D30CD4U☆N3
SPHWH2L3D30CD4U☆P3 M3
N3
P3 140
150
160 160
170
180
4000K SPHWH2L3D30CD4T☆N3
SPHWH2L3D30CD4T☆P3
SPHWH2L3D30CD4T☆Q2
SPHWH2L3D30CD4T☆Q3 N3
P3
Q2
Q3 160
160
170
170 170
180
180
190
5000K SPHWH2L3D30CD4R◇M3
SPHWH2L3D30CD4R◇N3
SPHWH2L3D30CD4R◇P3
SPHWH2L3D30CD4R◇Q2
SPHWH2L3D30CD4R◇Q3 M3
N3
P3
Q2
Q3 140
150
160
170
170 160
170
180
180
190
5700K SPHWH2L3D30CD4Q◇N3
SPHWH2L3D30CD4Q◇P3
SPHWH2L3D30CD4Q◇Q2
SPHWH2L3D30CD4Q◇Q3 N3
P3
Q2
Q3 150
160
170
170 170
180
180
190
6500K SPHWH2L3D30CD4P◇N3
SPHWH2L3D30CD4P◇P3 N3
P3 150
160 170
180
80 2200K SPHWH2L3D30ED4Y☆G3 G3 100 120
2700K SPHWH2L3D30ED4W☆J3
SPHWH2L3D30ED4W☆K3 J3
K3 120
130 140
150
3000K SPHWH2L3D30ED4V☆J3
SPHWH2L3D30ED4V☆K3
SPHWH2L3D30ED4V☆M3 J3
K3
M3 120
130
140 140
150
160
3500K SPHWH2L3D30ED4U☆K3
SPHWH2L3D30ED4U☆M3 M3
N3
P3 140
150
160 150
160
4000K SPHWH2L3D30ED4T☆K3
SPHWH2L3D30ED4T☆M3 K3
M3 130
140 160
170
5000K SPHWH2L3D30ED4R◇M3
SPHWH2L3D30ED4R◇N3 M3
N3 140
150 160
170
5700K SPHWH2L3D30ED4Q◇M3
SPHWH2L3D30ED4Q◇N3 M3
N3 140
150 170
180
180
190
6000K SPHWH2L3D30ED4PQK3
SPHWH2L3D30ED4PQM3
SPHWH2L3D30ED4PQN3 K3
M3
N3 130
140
150 160
170
180
6500K SPHWH2L3D30ED4P◇K3
SPHWH2L3D30ED4P◇M3
SPHWH2L3D30ED4P◇N3 K3
M3
N3 130
140
150 150
160
170
90 2700K SPHWH2L3D30GD4W☆F3
SPHWH2L3D30GD4W☆G3
SPHWH2L3D30GD4W☆H3 F3
G3
H3 90
100
110 110
120
130
3000K SPHWH2L3D30GD4V☆G3
SPHWH2L3D30GD4V☆H3 G3
H3 100
110 120
130
3500K SPHWH2L3D30GD4U☆G3
SPHWH2L3D30GD4U☆H3
SPHWH2L3D30GD4U☆J3 G3
H3
J3 100
110
120 120
130
140
4000K SPHWH2L3D30GD4T☆J3 J3 120 140
5000K SPHWH2L3D30GD4R◇K3
SPHWH2L3D30GD4R◇M3
SPHWH2L3D30GD4R◇N3 K3
M3
N3 130
140
150 150
160
170
